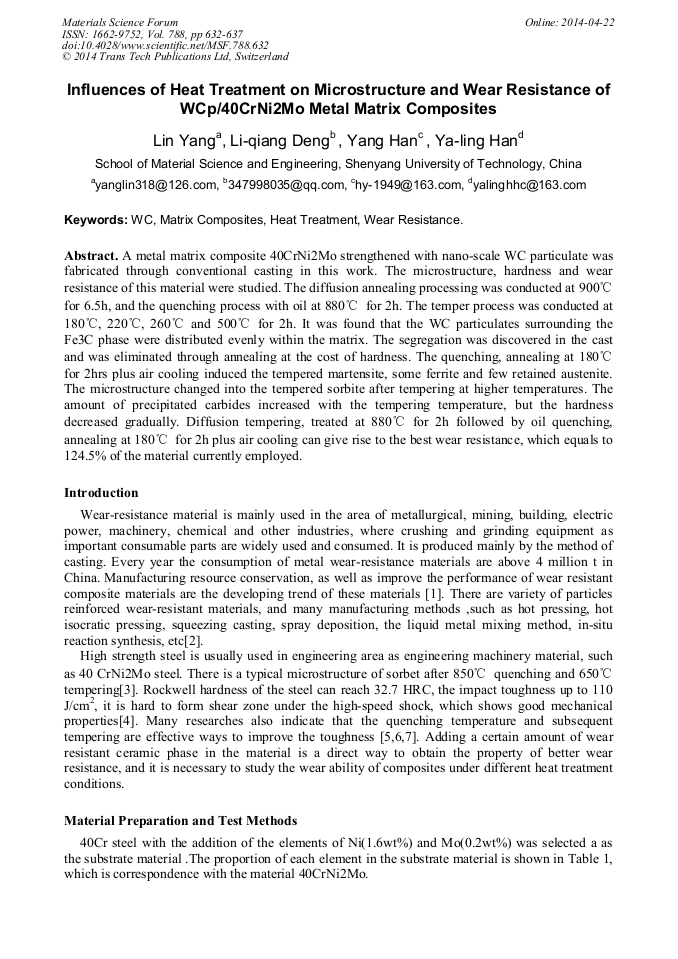

Influences of Heat Treatment on Microstructure and Wear Resistance of WCp/40CrNi2Mo Metal Matrix Composites

Abstract:

A metal matrix composite 40CrNi2Mo strengthened with nanoscale WC particulate was fabricated through conventional casting in this work. The microstructure, hardness and wear resistance of this material were studied. The diffusion annealing processing was conducted at 900°C for 6.5h, and the quenching process with oil at 880°C for 2h. The temper process was conducted at 180°C, 220°C, 260°C and 500°C for 2h. It was found that the WC particulates surrounding the Fe3C phase were distributed evenly within the matrix. The segregation was discovered in the cast and was eliminated through annealing at the cost of hardness. The quenching, annealing at 180°C for 2hrs plus air cooling induced the tempered martensite, some ferrite and few retained austenite. The microstructure changed into the tempered sorbite after tempering at higher temperatures. The amount of precipitated carbides increased with the tempering temperature, but the hardness decreased gradually. Diffusion tempering, treated at 880°C for 2h followed by oil quenching, annealing at 180°C for 2h plus air cooling can give rise to the best wear resistance, which equals to 124.5% of the material currently employed.

• Periodical: Materials Science Forum (Volume 788)
• Pages: 632-637
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.788.632
• Online since: April 2014
• Authors: Lin Yang*, Li Qiang Deng, Yang Han, Ya Ling Han
• Keywords: Heat Treatment, Matrix Composites, WC, Wear Resistance

References

[1] Y.S. Zhang, L. Xia, J. Huang. The study of iron/ceramic composite materials made by Liquid metal flow manufacturing cast, Journal of Hot Working Process.12 (2000) 34-37.

[2] H.G. Fu, The wear resistant materials, Mechanical Industry Press, Beijing, 2011.

[3] M .A. Maleque, Y. M. Poon, H. H. Masjuki. The effect of intercritical heat treatment on the mechanical properties of AISI3115 steel,Journal of Materials Processing Technology. 153-154(2004), 482-487.

DOI: 10.1016/j.jmatprotec.2004.04.391

[4] W.Q. Zhang, G. Jin, The low temperature mechanical properties of quenched and tempered state 40 crni2mo steel, Journal of Coal. 37(2012) 167-167.

[5] Y.P Wu, Q.C. Xu, L.C. Xiao. Low alloy steel and the temperature quenching strong research, Journal of Physical and Chemical Inspection – Physical Volume.33 (1997), 11-12.

[6] M. A. Maleque, Y. M. Poon, H. H. Masjuki. The effect of inter-critical heat treatment on the mechanical properties of AISI3115 steel, Journal of Materials Processing Technology. 153-154(2004), 482-487.

DOI: 10.1016/j.jmatprotec.2004.04.391

[7] L. Liming, S. Hiroshi, M. Alexander. Microstructure and mechanical properties of Fe-Cr-C eutectic composites, Materials Science and Engineering: A. 347(2003),214-222.

DOI: 10.1016/s0921-5093(02)00588-9

[8] P. Movahed, S. Kolahgar, S. P. H. Marashi. The effect of inter-critical heat treatment temperature on the tensile properties and work hardening behavior ferrite-marten site dual phase steel sheets, Journal of Materials Science and Engineering,A518(2009),1-6.

DOI: 10.1016/j.msea.2009.05.046

[9] Y.P. Kang. Metal solid state phase transformation and its application. Chemical Industry Press, Beijing.(2007)

[10] S. Gunduz. Effect of chemical composition, martensite volume fraction and tempering on tensile behaviour of dual phase steels, Materials Letters.63 (2009), 2381-2383.

DOI: 10.1016/j.matlet.2009.08.015

[11] Z.L. Lu, Y.X. Zhou, Q.C. Rao, et al. An investigation of the abrasive wear behavior of ductile cast iron, Journal of Materials Processing Technology, 116(2001), 176-181.

DOI: 10.1016/s0924-0136(01)01013-5

[12] J.q. Cheng, M. K. Kang. Quasi bainite cast steel abrasive wear performance. Mechanical engineering materials,24(2000),37-39.

[13] J.S. Shan, C.X. Xu, X.P. Han. New type of high wear resistance of bainite cast steel research ,J. Materials science and technology ,7(1999),93-97.

[14] L. Ribeiro, A. Barbosa, F. Viana,et al. Abrasion wear behaviour of alloyed and chilled cast irons,Wear. 270(2011),535-540.

DOI: 10.1016/j.wear.2011.01.008

[15] Y. Pan, D. Y. Li, H. Zhang. Enhancing the wear resistant of sintered WC-Co composite by adding pseudo-elastic TiNi constituent,Wear. 271(2011),1916-1921.

DOI: 10.1016/j.wear.2011.01.052
