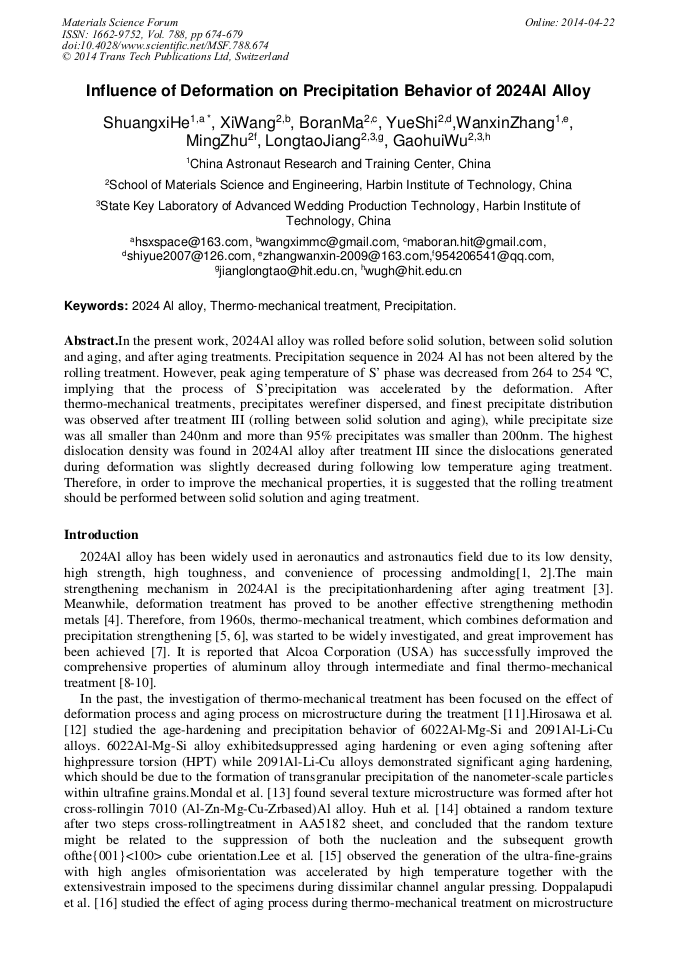

Influence of Deformation on Precipitation Behavior of 2024Al Alloy

Abstract:

In the present work, 2024Al alloy was rolled before solid solution, between solid solution and aging, and after aging treatments. Precipitation sequence in 2024 Al has not been altered by the rolling treatment. However, peak aging temperature of S’ phase was decreased from 264 to 254 oC, implying that the process of S’precipitation was accelerated by the deformation. After thermo-mechanical treatments, precipitates werefiner dispersed, and finest precipitate distribution was observed after treatment III (rolling between solid solution and aging), while precipitate size was all smaller than 240nm and more than 95% precipitates was smaller than 200nm. The highest dislocation density was found in 2024Al alloy after treatment III since the dislocations generated during deformation was slightly decreased during following low temperature aging treatment. Therefore, in order to improve the mechanical properties, it is suggested that the rolling treatment should be performed between solid solution and aging treatment.

• Periodical: Materials Science Forum (Volume 788)
• Pages: 674-679
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.788.674
• Online since: April 2014
• Authors: Shuan Xi He*, Xi Wang, Bo Ran Ma, Yue Shi, Wan Xin Zhang, Ming Zhu, Long Tao Jiang, Gaohui Wu
• Keywords: Aluminium Alloy 2024, Precipitation, Thermo-Mechanical Treatment

References

[1] Chen Guoliang. Wang Ning. Chen Minghe, Materials Science Forum. 770 (2013) 329-334.

[2] ZHAO Na, YANG Yan-qing, HAN Ming, LUO Xian, FENG Guang-hai, ZHANG Rong-jun,Transactions of NonferrousMetals Society of China. 22-9(2012) 2226−2232.

[3] A.S. Taylor, M.Weiss, T.Hilditch, P.D. Hodgson, N.Stanford, Materials Science Forum. 765 (2013) 434-438.

DOI: 10.4028/www.scientific.net/msf.765.434

[4] SAEEDIKHANI M, JAVIDI M, YAZDANI A,Transactions of NonferrousMetals Society of China. 23-9 (2013) 2551−2559.

[5] Zhu Qingfeng, Zhao Zhihao, ZuoYubo, Li Lei, Cui Jianzhong,Materials Science Forum. 765 (2013) 82-86.

[6] DU Nan, WANG Shuai-xing, ZHAO Qing, SHAO Zhi-song,Transactions of NonferrousMetals Society of China. 22-7 (2012)1655−1660.

[7] J.M. Sanchez-Amaya, Z.Boukha, M.R. Amaya-Vazquez, L.Gonzalez-Rovira, F.J. Botana, 5083, 6082 and 7075 Aluminium Alloys, Materials Science Forum. 713 (2012) 7-12.

DOI: 10.4028/www.scientific.net/msf.713.7

[8] WU Chuan-song, ZHANG Wen-bin, SHI Lei, CHEN Mao-ai,Transactions of NonferrousMetals Society of China. 22-6 (2012) 1445−1451.

[9] J.Y.Xu, Q.L.An, M.Chen,Materials Science Forum. 698 (2011) 218-222.

[10] WEI Xiao-wei, CHEN Chao-yin,Transactions of NonferrousMetals Society of China. 22-11 (2012) 2707−2712.

[11] R.Perez-Bustamante, F.Perez-Bustamante, J.I. Barajas-Villaruel, J.M. Herrera-Ramirez, Materials Science Forum. 691 (2011) 27-31.

[12] HIROSAWA S, HAMAOKA T, HORITA Z, LEE S,MATSUDA K, TERADA D,Metallurgical and Materials Transactions A. 44-8 (2013) 3921−3933.

DOI: 10.1007/s11661-013-1730-y

[13] MONDAL C, SINGH AK, MUKHOPADHYAY AK,CHATTOPADHYAY K,Metallurgical and Materials Transactions A. 44-6 (2013) 2746−2763.

[14] Huh MY, Cho SY, Engler O, Materials Science and Engineering A.315-1 (2001) 35−46.

[15] Lee JC, Seok HK, Suh JY,ActaMaterialia. 50-16 (2002) 4005−4019.

[16] Doppalapudi D, Venkatachalam P, Kumar S R, Ravisankar B, Jayashankar K, Transactions of the Indian Institute of Metals. 63-1 (2010) 31−34.

DOI: 10.1007/s12666-010-0005-1

[17] Murayama M, Horita Z, Hono K,ActaMaterialia. 49-1 (2001) 21−29.

[18] Ebrahimi G R, Zarei-Hanzaki A, Haghshenas M, Arabshahi H,Journal of Materials Processing Technology. 206-1 (2008) 25-29.

DOI: 10.1016/j.jmatprotec.2007.11.261
