Effect of Low Cu Addition and Thermo-Mechanical History on Precipitation in Al-Mg-Si Alloys

Abstract:

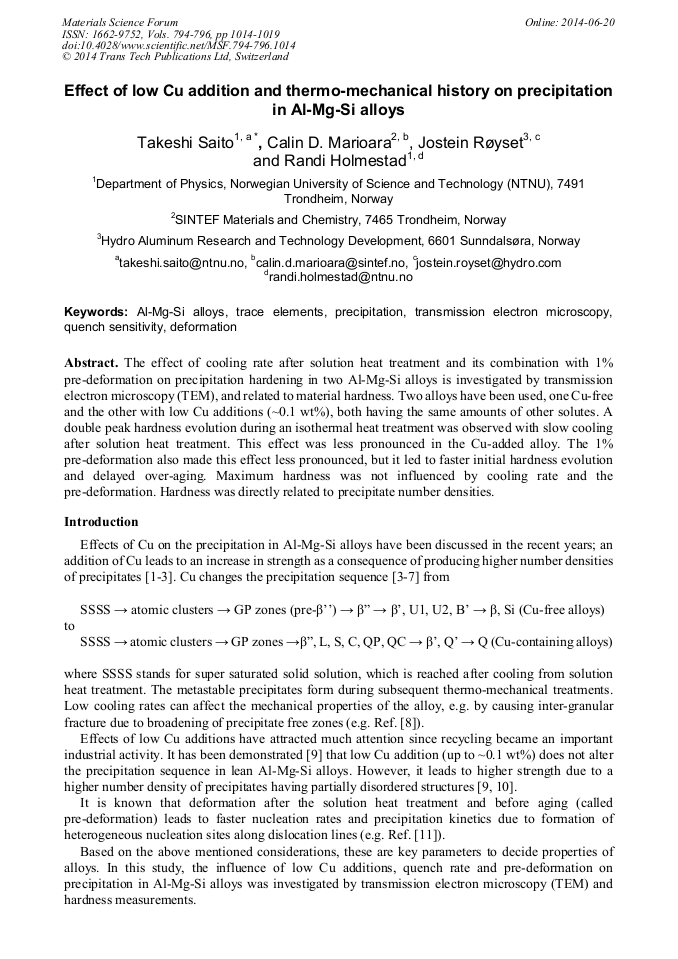

The effect of cooling rate after solution heat treatment and its combination with 1% pre-deformation on precipitation hardening in two Al-Mg-Si alloys is investigated by transmission electron microscopy (TEM), and related to material hardness. Two alloys have been used, one Cu-free and the other with low Cu additions (~0.1 wt%), both having the same amounts of other solutes. A double peak hardness evolution during an isothermal heat treatment was observed with slow cooling after solution heat treatment. This effect was less pronounced in the Cu-added alloy. The 1% pre-deformation also made this effect less pronounced, but it led to faster initial hardness evolution and delayed over-aging. Maximum hardness was not influenced by cooling rate and the pre-deformation. Hardness was directly related to precipitate number densities.

• Periodical: Materials Science Forum (Volumes 794-796)
• Pages: 1014-1019
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.794-796.1014
• Online since: June 2014
• Authors: Takeshi Saito*, Calin D. Marioara, Jostein Røyset, Randi Holmestad
• Keywords: Al-Mg-Si Alloy, Deformation, Precipitation, Quench Sensitivity, Trace Elements, Transmission Electron Microscopy (TEM)

References

[1] W.F. Miao and D.E. Laughlin, Metall. Mater. Trans. A 31 (2000) 361-371.

[2] M. Murayama, K. Hono, W.F. Miao and D.E. Laughlin, Metall. Mater. Trans. A 32 (2001) 239-246.

[3] C.D. Marioara, S.J. Andersen, T.N. Stene, H. Hasting, J. Walmsley, A.T.J. Van Helvoort and R. Holmestad, Phil. Mag. 87 (2007) 3385-3413.

DOI: 10.1080/14786430701287377

[4] D.J. Chakrabarti and D.E. Laughlin, Prog. Mater. Sci. 49 (2004) 389-410.

[5] C. Cayron, L. Sagalowicz, O. Beffort and P.A. Buffat, Phil. Mag. A 79 (1999) 2833-2851.

[6] K. Matsuda, Y. Uetani, T. Sato and S. Ikeno, Metall. Mater. Trans. A 32 (2001) 1293-1299.

[7] L. Arnberg and B. Aurivillius, Acta Chem. Scand. A 34 (1980) 1-5.

[8] M. De Haas and T. Th. M. De Hosson, J. Mater. Sci. 37 (2002) 5065-5073.

[9] T. Saito, S. Muraishi, C.D. Marioara, S.J. Andersen, J. Røyset and R. Holmestad, Metall. Mater. Trans. A 44 (2013) 4124-4135.

DOI: 10.1007/s11661-013-1754-3

[10] T. Saito, C.D. Marioara, S.J. Andersen, W. Lefebvre and R. Holmestad, Philos. Mag. accepted, DOI: 10. 1080/14786435. 2013. 857051.

[11] H.J. Rack, Mater. Sci. Eng. 29 (1977) 179-188.

[12] C.D. Marioara, S.J. Andersen, H.W. Zandbergen and R. Holmestad, Metall. Mater. Trans. A 36 (2005) 691-702.

[13] S.J. Andersen, Metall. Mater. Trans. A 26 (1995) 1931-(1938).
