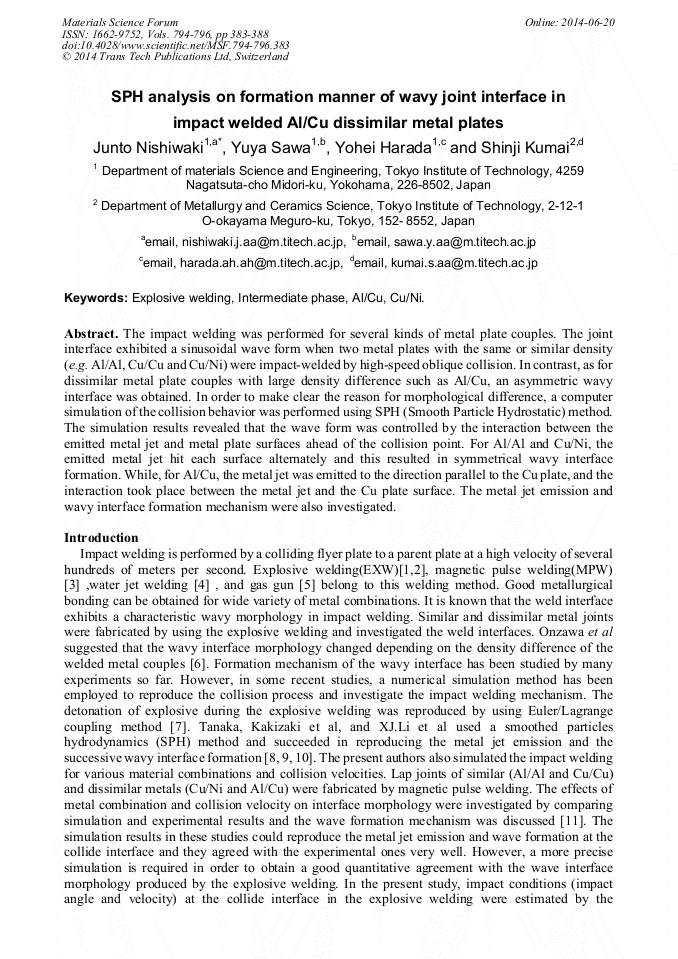

SPH Analysis on Formation Manner of Wavy Joint Interface in Impact Welded Al/Cu Dissimilar Metal Plates

Abstract:

The impact welding was performed for several kinds of metal plate couples. The joint interface exhibited a sinusoidal wave form when two metal plates with the same or similar density (e.g. Al/Al, Cu/Cu and Cu/Ni) were impact-welded by high-speed oblique collision. In contrast, as for dissimilar metal plate couples with large density difference such as Al/Cu, an asymmetric wavy interface was obtained. In order to make clear the reason for morphological difference, a computer simulation of the collision behavior was performed using SPH (Smooth Particle Hydrostatic) method. The simulation results revealed that the wave form was controlled by the interaction between the emitted metal jet and metal plate surfaces ahead of the collision point. For Al/Al and Cu/Ni, the emitted metal jet hit each surface alternatively and this resulted in symmetrical wavy interface formation. While, for Al/Cu, the metal jet was emitted to the direction parallel to the Cu plate, and the interaction took place between the metal jet and the Cu plate surface. The metal jet emission and wavy interface formation mechanism were also investigated.

• Periodical: Materials Science Forum (Volumes 794-796)
• Pages: 383-388
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.794-796.383
• Online since: June 2014
• Authors: Junto Nishiwaki*, Yuya Sawa, Yohei Harada, Shinji Kumai
• Keywords: Al-Cu, Cu/Ni, Explosive Welding, Intermediate Phase

References

[1] S. A. Mousavi and P. F. Sartangi, Experimental investigation of explosive welding of cp-titanium/AISI 304 stainless steel, Mater. Des., 30 (2009) 459–468.

DOI: 10.1016/j.matdes.2008.06.016

[2] D. J. Vigueras, C. T. de Renero, and O. T. Inal, Explosive and impact welding: technical review, Mater. Technol. Adv. Perform. Mater., 22 (2007) 200–204.

DOI: 10.1179/175355507x236740

[3] T. Aizawa, Magnetic pressure seam welding method for sheet metals, J. Japan Inst. Light Met., 54 (2004) 153–158.

[4] M. Chizari, S. Al-Hassani, and L. Barrett, Experimental and numerical study of water jet spot welding, J. Mater. Process. Technol., 198 (2008) 213–219.

DOI: 10.1016/j.jmatprotec.2007.06.086

[5] D. Vigueras, Explosive and impact welding: technical review, Mater. Technol., 22 (2007) 200–204.

[6] T. Onzawa and Y. Ishii, Fandamental Studies on Explosive Welding, Japan Weld. Soc., 6 (1975) 18–24.

[7] S. A. Mousavi, L. M. Barrett, and S. T. S. Al-Hassani, Explosive welding of metal plates, J. Mater. Process. Technol., 202 (2008) 224–239.

DOI: 10.1016/j.jmatprotec.2007.09.028

[8] K. Tanaka, Numerical studies of explosive welding by SPH, Mater. Sci. Forum (2008).

[9] S. Kakizaki, M. Watanabe, and S. Kumai, Simulation and experimental analysis of metal jet emission and weld interface morphology in impact welding, Mater. Trans., 52 (2011) 1003–1008.

DOI: 10.2320/matertrans.l-mz201128

[10] X. Li, F. Mo, and X. Wang, Numerical study on mechanism of explosive welding, Sci. Technol. Weld. Join., 17 (2012) 36–41.

[11] Y. Sawa, S. Kakizaki, and S. Kumai, Experimental and Numerical Analysis of Formation Manner of Characteristic Wavy Morphology in Impact Welded Similar- and Dissimilar-Metal Plates., in Proceedings of ICAA13, (2012) 789–794.

DOI: 10.1007/978-3-319-48761-8_116

[12] D. J. Steinberg, S. G. Cochran, and M. W. Guinan, A constitutive model for metals applicable at high-strain rate, Journal of Applied Physics, 51 (1980) 1498–1504.

DOI: 10.1063/1.327799

[13] S. Kakizaki, Effect of collision condition on metal jet emission and wavy interface formation in impact welding, Master's thesis, (2010) 1–140.
