Experimental Detection of the Onset of Local Necking in an Aluminium Sheet

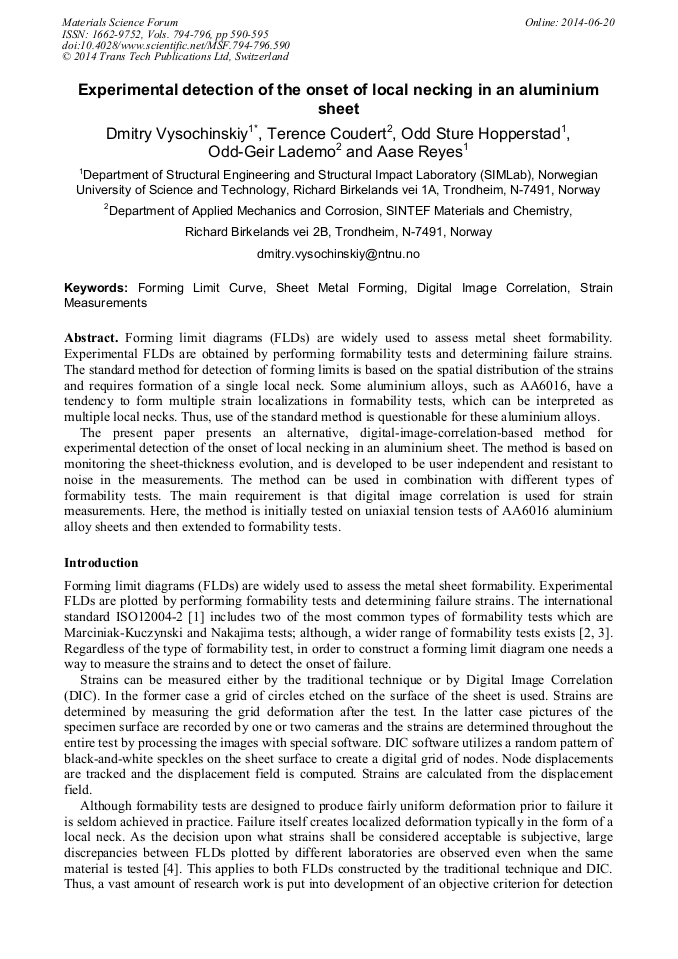

Abstract:

Forming limit diagrams (FLDs) are widely used to assess metal sheet formability. Experimental FLDs are obtained by performing formability tests and determining failure strains. The standard method for detection of forming limits is based on the spatial distribution of the strains and requires formation of a single local neck. Some aluminium alloys, such as AA6016, have a tendency to form multiple strain localizations in formability tests, which can be interpreted as multiple local necks. Thus, use of the standard method is questionable for these aluminium alloys. The present paper presents an alternative, digital-image-correlation-based method for experimental detection of the onset of local necking in an aluminium sheet. The method is based on monitoring the sheet-thickness evolution, and is developed to be user independent and resistant to noise in the measurements. The method can be used in combination with different types of formability tests. The main requirement is that digital image correlation is used for strain measurements. Here, the method is initially tested on uniaxial tension tests of AA6016 aluminium alloy sheets and then extended to formability tests.

• Periodical: Materials Science Forum (Volumes 794-796)
• Pages: 590-595
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.794-796.590
• Online since: June 2014
• Authors: Dmitry Vysochinskiy*, Terence Coudert, Odd Sture Hopperstad, Odd Geir Lademo, Aase Reyes
• Keywords: Digital Image Correlation (DIC), Forming Limit Curve, Sheet Metal Forming, Strain Measurements

References

[1] International Standard ISO 12004-2 Metallic materials - Sheet and strip - Determination of forming-limit curves. Part 2: Determination of forming-limit curves in the laboratory, ed, (2008).

DOI: 10.3403/30150423u

[2] D. Banabic, Sheet Metal Forming Processes: Springer Berlin Heidelberg, (2009).

[3] D. Banabic, H. J. Bunge, K. P\ hlandt, and A. E. Tekkaya, Formability of Metallic Materials: Springer, (2000).

[4] H. Liebertz, A. Duwel, R. Illig, W. Hotz, S. Keller, A. Koehler, et al., Guideline for the Determination of Forming Limit Curves, (2004).

[5] G. Marron, L. Moinier, P. Patou, and J. C. Celeski, A new necking criterion for forming limit diagrams, (1997).

[6] M. Merklein, A. Kuppert, and M. Geiger, Time dependent determination of forming limit diagrams, CIRP Annals - Manufacturing Technology, vol. 59, pp.295-298, (2010).

DOI: 10.1016/j.cirp.2010.03.001

[7] Z. Marciniak, J. L. Duncan, and S. J. Hu, Mechanics of Sheet Metal Forming Oxford: Butterworth-Heinemann, (2002).

[8] D. Vysochinskiy, T. Coudert, A. Reyes, and O. G. Lademo, Determination of Forming Limit Strains Using Marciniak-Kuczynski Tests and Automated Digital Image Correlation Procedures, Key Engineering Materials, vol. 504-506, pp.17-22, (2012).

DOI: 10.4028/www.scientific.net/kem.504-506.17

[9] P. Vacher, S. Dumoulin, F. Morestin, and S. Mguil-Touchal, Bidimensional strain measurement using digital images, Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science, vol. 213, pp.811-817, (1999).

DOI: 10.1243/0954406991522428
