Boundary Element Method Applied to Electroforming Process

Abstract:

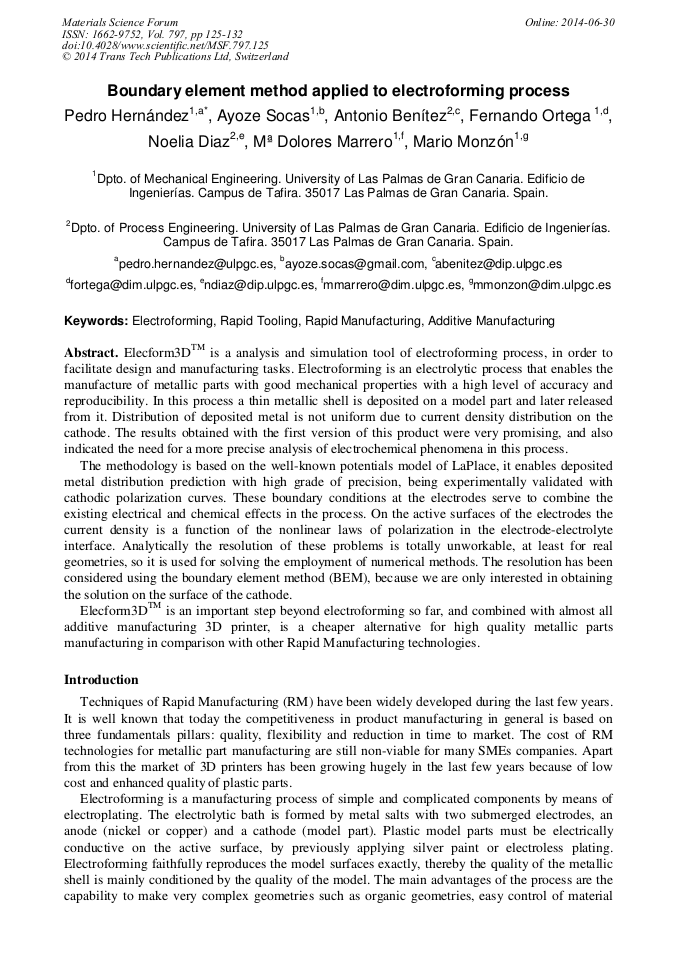

Elecform3D^TM is a analysis and simulation tool of electroforming process, in order to facilitate design and manufacturing tasks. Electroforming is an electrolytic process that enables the manufacture of metallic parts with good mechanical properties with a high level of accuracy and reproducibility. In this process a thin metallic shell is deposited on a model part and later released from it. Distribution of deposited metal is not uniform due to current density distribution on the cathode. The results obtained with the first version of this product were very promising, and also indicated the need for a more precise analysis of electrochemical phenomena in this process.The methodology is based on the well-known potentials model of LaPlace, it enables deposited metal distribution prediction with high grade of precision, being experimentally validated with cathodic polarization curves. These boundary conditions at the electrodes serve to combine the existing electrical and chemical effects in the process. On the active surfaces of the electrodes the current density is a function of the nonlinear laws of polarization in the electrode-electrolyte interface. Analytically the resolution of these problems is totally unworkable, at least for real geometries, so it is used for solving the employment of numerical methods. The resolution has been considered using the boundary element method (BEM), because we are only interested in obtaining the solution on the surface of the cathode. Elecform3D^TM is an important step beyond electroforming so far, and combined with almost all additive manufacturing 3D printer, is a cheaper alternative for high quality metallic parts manufacturing in comparison with other Rapid Manufacturing technologies.

• Periodical: Materials Science Forum (Volume 797)
• Pages: 125-132
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.797.125
• Online since: June 2014
• Authors: Pedro M. Hernandez*, Ayoze Socas, Antonio Benítez, Fernando Ortega, Noelia Diaz, Ma Dolores Marrero, Mario Monzón
• Keywords: Additive Manufacturing (AM), Electroforming, Rapid Manufacturing, Rapid Tooling
