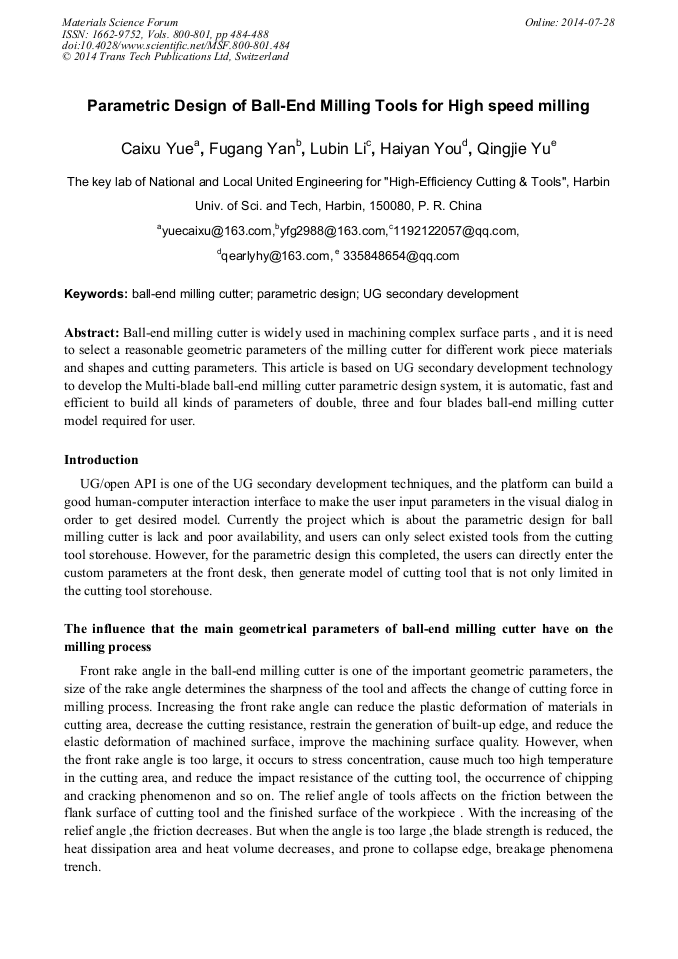

Parametric Design of Ball-End Milling Tools for High Speed Milling

Abstract:

Ball-end milling cutter is widely used in machining complex surface parts , and it is need to select a reasonable geometric parameters of the milling cutter for different work piece materials and shapes and cutting parameters. This article is based on UG secondary development technology to develop the Multi-blade ball-end milling cutter parametric design system, it is automatic, fast and efficient to build all kinds of parameters of double, three and four blades ball-end milling cutter model required for user.

• Periodical: Materials Science Forum (Volumes 800-801)
• Pages: 484-488
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.800-801.484
• Online since: July 2014
• Authors: Cai Xu Yue*, Fu Gang Yan, Lu Bin Li, Hai Yan You, Qing Jie Yu
• Keywords: Ball-End Milling Cutter, Parametric Design, UG Secondary Development
