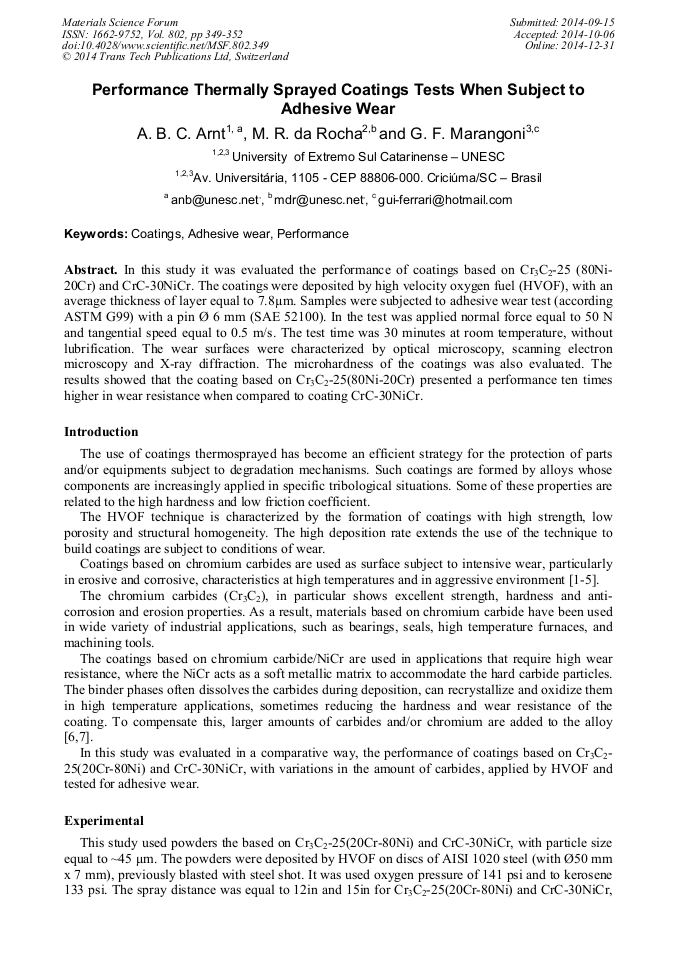

Performance Thermally Sprayed Coatings Tests when Subject to Adhesive Wear

Abstract:

In this study it was evaluated the performance of coatings based on Cr₃C₂-25 (80Ni-20Cr) and CrC-30NiCr. The coatings were deposited by high velocity oxygen fuel (HVOF), with an average thickness of layer equal to 7.8μm. Samples were subjected to adhesive wear test (according ASTM G99) with a pin Ø 6 mm (SAE 52100). In the test was applied normal force equal to 50 N and tangential speed equal to 0.5 m/s. The test time was 30 minutes at room temperature, without lubrification. The wear surfaces were characterized by optical microscopy, scanning electron microscopy and X-ray diffraction. The microhardness of the coatings was also evaluated. The results showed that the coating based on Cr₃C₂-25(80Ni-20Cr) presented a performance ten times higher in wear resistance when compared to coating CrC-30NiCr.
