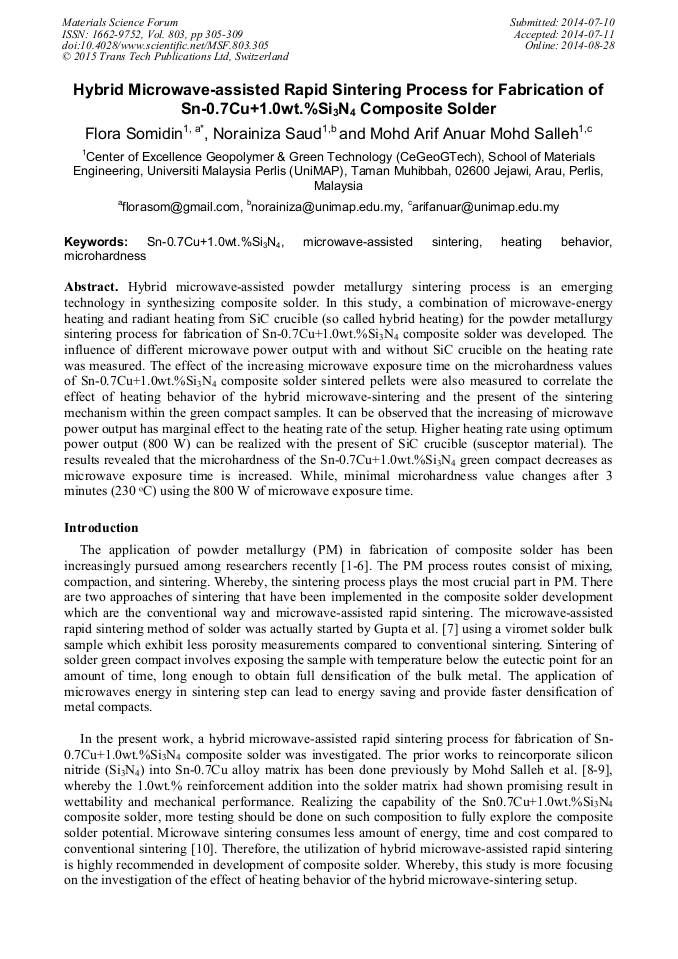

Hybrid Microwave-Assisted Rapid Sintering Process for Fabrication of Sn-0.7Cu+1.0wt.%Si₃N₄ Composite Solder

Abstract:

Hybrid microwave-assisted powder metallurgy sintering process is an emerging technology in synthesizing composite solder. In this study, a combination of microwave-energy heating and radiant heating from SiC crucible (so called hybrid heating) for the powder metallurgy sintering process for fabrication of Sn-0.7Cu+1.0wt.%Si₃N₄ composite solder was developed. The influence of different microwave power output with and without SiC crucible on the heating rate was measured. The effect of the increasing microwave exposure time on the microhardness values of Sn-0.7Cu+1.0wt.%Si₃N₄ composite solder sintered pellets were also measured to correlate the effect of heating behavior of the hybrid microwave-sintering and the present of the sintering mechanism within the green compact samples. It can be observed that the increasing of microwave power output has marginal effect to the heating rate of the setup. Higher heating rate using optimum power output (800 W) can be realized with the present of SiC crucible (susceptor material). The results revealed that the microhardness of the Sn-0.7Cu+1.0wt.%Si₃N₄ green compact decreases as microwave exposure time is increased. While, minimal microhardness value changes after 3 minutes (230 oC) using the 800 W of microwave exposure time.

You might also be interested in these eBooks

Geopolymer and Green Technology Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 803)

Pages:

305-309

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.803.305

Citation:

Cite this paper

Online since:

August 2014

Authors:

Flora Somidin*, Norainiza Saud, Mohd Arif Anuar Mohd Salleh

Keywords:

Heating Behavior, Microhardness, Microwave-Assisted Sintering, Sn-0.7Cu+1.0wt.%Si₃N₄

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Mohd Salleh MAA, AM Mustafa Al Bakri, Somidin F, Sandu AV, Saud N, H Kamaruddin, McDonald SD, Nogita K. A comparative study of solder properties of Sn-0. 7Cu lead-free solder fabricated via the powder metallurgy and casting methods, Revista de Chimie 2013: 64(7): 725-728.

DOI: 10.4028/www.scientific.net/amr.795.451

Google Scholar

[2] Zhong XL and Gupta M, Effect of type of reinforcement at nanolength scale on the tensile properties of Sn-0. 7Cu solder alloy. IEEE 10th Electronics Packaging Technology Conference 2008: 669-674.

DOI: 10.1109/eptc.2008.4763510

Google Scholar

[3] Babaghorbani P, Nai SML, Gupta M. Development of lead-free Sn-3. 5Ag/SnO2 nanocomposite solders. J Mater Sci: Mater Electron 2009; 20: 571-576.

DOI: 10.1007/s10854-008-9767-1

Google Scholar

[4] Geranmayeh AR, Mahmudi R, Kangooie M. High-temperature shear strength of lead-free Sn-Sb-Ag/Al2O3 composite solder. Materials Science & Engineering A 2011; 528: 3967-3972.

DOI: 10.1016/j.msea.2011.02.034

Google Scholar

[5] Niranjani VL, Chandra Rao BSS, Singh V, Kamat SV. Influence of temperature and strain rate on tensile properties of single walled carbon nanotubes reinforced Sn-Ag-Cu lead free solder alloy composites. Materials Science & Engineering A 2011; 529: 257-264.

DOI: 10.1016/j.msea.2011.09.026

Google Scholar

[6] Mohd Salleh MAA, AM Mustafa Al Bakri, Somidin F, H Kamarudin. Recent development of novel lead-free composite solders using microwave-assisted sintering powder metallurgy route, IREME 2013: 7: 53-59.

Google Scholar

[7] Gupta M, Wong WLE. Enhancing overall mechanical performance of metallic materials using two-directional microwave assisted rapid sintering. Scripta Materialia 2005; 52: 479-483.

DOI: 10.1016/j.scriptamat.2004.11.006

Google Scholar

[8] Mohd Salleh MAA, Mustafa Al Bakri AM, H Kamarudin, Bnhussain M, Zan@Hazizi MH, Somidin F. Solderability of Sn-0. 7Cu/Si3N4 lead-free composite solder on Cu-substrate. Physics Procedia 2011; 22: 299-304.

DOI: 10.1016/j.phpro.2011.11.047

Google Scholar

[9] Mohd Salleh MAA, Mustafa Al Bakri AM, Zan@Hazizi MH, Somidin F, Noor Farhani MA, Zainal AA. Mechanical properties of Sn-0. 7Cu/Si3N4 lead-free composite solder. Materials Science & Engineering A 2012; 556: 633-637.

DOI: 10.1016/j.msea.2012.07.039

Google Scholar

[10] Oghbaei M, Mirzaee O. Microwave versus conventional sintering: A review of fundamentals, advantages and applications. Journal of Alloys and Compounds 2010; 494: 175-189.

DOI: 10.1016/j.jallcom.2010.01.068

Google Scholar
