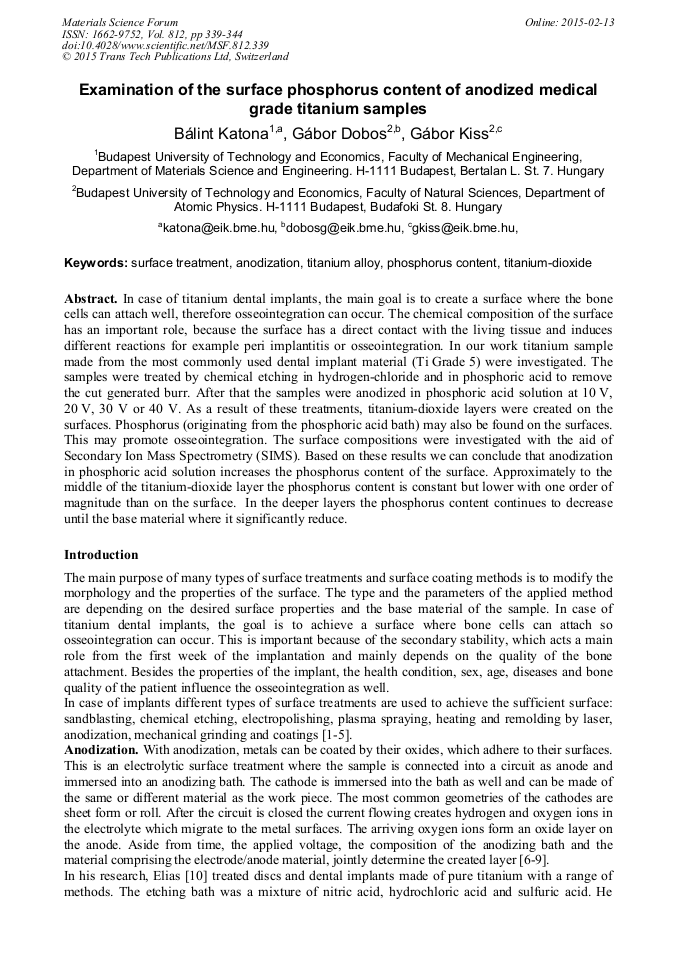

Examination of the Surface Phosphorus Content of Anodized Medical Grade Titanium Samples

Abstract:

In case of titanium dental implants, the main goal is to create a surface where the bone cells can attach well, therefore osseointegration can occur. The chemical composition of the surface has an important role, because the surface has a direct contact with the living tissue and induces different reactions for example peri implantitis or osseointegration. In our work titanium sample made from the most commonly used dental implant material (Ti Grade 5) were investigated. The samples were treated by chemical etching in hydrogen-chloride and in phosphoric acid to remove the cut generated burr. After that the samples were anodized in phosphoric acid solution at 10 V, 20 V, 30 V or 40 V. As a result of these treatments, titanium-dioxide layers were created on the surfaces. Phosphorus (originating from the phosphoric acid bath) may also be found on the surfaces. This may promote osseointegration. The surface compositions were investigated with the aid of Secondary Ion Mass Spectrometry (SIMS). Based on these results we can conclude that anodization in phosphoric acid solution increases the phosphorus content of the surface. Approximately to the middle of the titanium-dioxide layer the phosphorus content is constant but lower with one order of magnitude than on the surface. In the deeper layers the phosphorus content continues to decrease until the base material where it significantly reduce.

• Periodical: Materials Science Forum (Volume 812)
• Pages: 339-344
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.812.339
• Online since: February 2015
• Authors: Bálint Katona, Gábor Dobos*, Gábor Kiss
• Keywords: Anodization, Phosphorus Content, Surface Treatment, Titanium Alloy, Titanium-Dioxide

References

[1] S. Bauer, P. Schmuki, K. von der Mark et al., Engineering biocompatible implant surfaces Part I: Materials and surfaces, Progress in Materials Science 58 (2013) 261–326.

DOI: 10.1016/j.pmatsci.2012.09.001

[2] L. Nádai, B. Katona, A. Terdik et al., Chemical etching of titanium samples, Periodica Polytechnica 57 (2013) 53-57.

DOI: 10.3311/ppme.7046

[3] G. Pető, A. Karacs, Z. Pászti, et al., Surface treatment of screw shaped titanium dental implants by high intensity laser pulses, Applied Surface Science 186 (2002) 7-13.

DOI: 10.1016/s0169-4332(01)00769-3

[4] D. Pammer, Á. Schindler, E. Bognár, Fogászati implantátumok kémiai maratása, Műszaki Szemle 60 (2013) 29-32.

[5] Á. Lengyel, E. Bognár, J. Dobránszky, The effect of stent positioning during electropolishing, 29th Danubia-Adria-Symposium on Advances in Experimental Mechanics, 32 (2012) 64-65.

[6] X. Yu, Y. Li, W. Wlodarski, et al., Fabrication of nanostructured TiO2 by anodization: A comparison between electrolytes and substrates, Sensors and Actuators, 130 (2008) 25-31.

DOI: 10.1016/j.snb.2007.07.076

[7] J. M. Macak, H. Tsuchiya, P. Schmuki: High-Aspect-Ratio TiO2 Nanotubes by Anodization of Titanium, Angewandte Chemie Internaitonal Edition, 44 (2005) 2100–2102.

DOI: 10.1002/anie.200462459

[8] M. Paulose, H. E. Prakasam, O. K. Varghese, et al., TiO2 Nanotube Arrays of 1000 µm Length by Anodization of Titanium Foil: Phenol Red Diffusion, The Journal of Physical Chemistry C, 111 (2007) 14992-14997.

DOI: 10.1021/jp075258r

[9] G. K. Mor, O. K. Varghes, M. Paulose et al., Transparent Highly Ordered TiO2 Nanotube Arrays via Ano, zation of Titanium Thin Films. Advanced Functional Materials, 15(2005) 1291-1296.

DOI: 10.1002/adfm.200500096

[10] C. N. Elias: Titanium dental implant surfaces, Revista Matéria, 15 (2010) 138-142.

DOI: 10.1590/s1517-70762010000200008

[11] L. H. Li, Y. M. Kong, K. W. Kim, et al., Improved biological performance of Ti implants due to surface modification by micro-arc oxidation, Biomaterials, 25 (2004) 2867-2875.

DOI: 10.1016/j.biomaterials.2003.09.048

[12] P. S. Vanzillotta, M. S. Sader, I. N. Bastos et al., Improvement of in vitro titanium bioactivity by three different surface treatments, Dental Materials 22 (2006) 275-282.

DOI: 10.1016/j.dental.2005.03.012

[13] M. L. Vera, M. A. Alterach, M. R. Rosenberger et al., Determination of the thickness and crystalline structure of TiO2 coatings made by anodic oxidation of Ti-6Al-4V, LNLS 2009 Activity Report (2009).
