Failure Mechanism of 7YSZ Splat as Thermal Barrier Coating

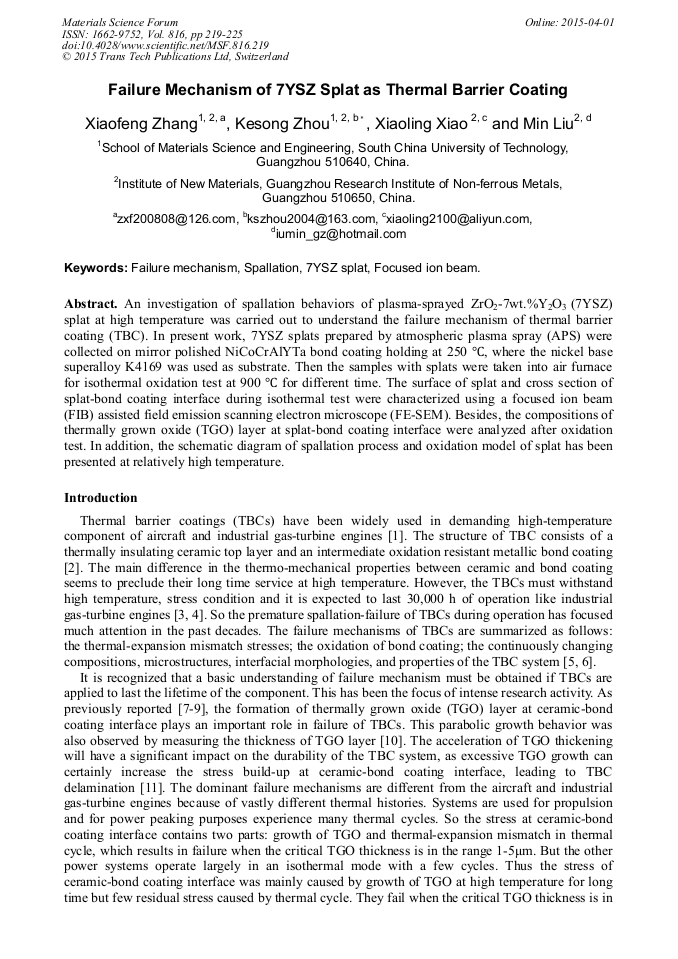

Article Preview

Abstract:

An investigation of spallation behaviors of plasma-sprayed ZrO₂-7wt.%Y₂O₃(7YSZ) splat at high temperature was carried out to understand the failure mechanism of thermal barrier coating (TBC). In present work, 7YSZ splats prepared by atmospheric plasma spray (APS) were collected on mirror polished NiCoCrAlYTa bond coating holding at 250 °C, where the nickel base superalloy K4169 was used as substrate. Then the samples with splats were taken into air furnace for isothermal oxidation test at 900 °C for different time. The surface of splat and cross section of splat-bond coating interface during isothermal test were characterized using a focused ion beam (FIB) assisted field emission scanning electron microscope (FE-SEM). Besides, the compositions of thermally grown oxide (TGO) layer at splat-bond coating interface were analyzed after oxidation test. In addition, the schematic diagram of spallation process and oxidation model of splat has been presented at relatively high temperature.

You might also be interested in these eBooks

High Performance Structural Material

Info:

Periodical:

Materials Science Forum (Volume 816)

Pages:

219-225

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.816.219

Citation:

Cite this paper

Online since:

April 2015

Authors:

Xiao Feng Zhang, Ke Song Zhou*, Xiao Ling Xiao, Min Liu

Keywords:

7YSZ Splat, Failure Mechanism, Focused Ion Beam, Spallation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] W. Beele, G. Marijnissen, A. Lieshout, Surf. & Coat. Technol., 120-121 (1999) 61.

[2] W.Y. Lee, D.P. Stinton, C.C. Berndt, et al., J. Ameri. Cera. Soc., 79 (1996) 3003.

[3] N.P. Padture, M. Gell, E.H. Jordan, Science, 296 (2002) 280.

[4] T.W. Clyne, S.C. Gill, J. Ther. Spra. Tec., 5 (1996) 401.

[5] A.N. Khan, J. Lu, Surf. & Coat. Technol., 201 (2007) 4653.

[6] A. G. Evans, M. Y. He, J. W. Hutchinson, Progress in Mater. Sci., 46 (2001) 249.

[7] E. P. Busso, J. Lin, S. Sakural, Acta Materialia, 49 (2001) 1529.

[8] R. Vaben, G. Kerkhoff, D. Stover, Mater. Sci. and Engin. A, 303 (2001) 100.

[9] R. A. Miller, J. of the Ameri. Cera. Soc., 67 (1984) 517.

[10] W.R. Chen, X. Wu, B. R. Marple, Surf. & Coat. Technol., 202 (2008) 2677.

[11] M. Seraffon, N.J. Simms, J. Sumner, Surf. & Coat. Technol., 206 (2011) 1529.

[12] T. J. Nijdam, G. H. Marijnissen, E. Vergeldt, Oxidation, 66 (2006) 269.

[13] C.W. Kang, H.W. Ng, Surf. & Coat. Technol., 200 (2006) 5462.

[14] K. Yang, M. Fukumoto, T. Yasui, et al. Surf. & Coat. Technol., 214 (2013) 138.

[15] M. Fukumoto, K. Yang, J. of Solid Mechanics, 5 (2011) 1001.

[16] J. Mostaghimi, S. Chandra, Pure and Applied Chemistry, 74 (2002) 441.

[17] S. Li, C. Langlade, S. Fayeulle, et al., Surf. & Coat. Technol., 100-101 (1998) 7.

[18] H. Choi, B. Yoon, H. Kim, Surf. & Coat. Technol., 150 (2002) 297.

[19] E.A.G. Shillington, D.R. Clarke, Acta Materialia, 47 (1999) 1297.

[20] A.M. Kristen, H. Berit, A.C. Emily, PNAS, 108 (2011) 5480.

[21] T. Chraska, A.H. King, Thin Solid Films, 397 (2001) 30.

[22] N.M. Yanar, M. Helminiak, G.H. Meier, et al., Metall. and Mate. Trans. A, 42A (2011) 905.

[23] P.K. Wright, A.G. Evans, Current Opin. in Solid State and Mater. Sci., 4 (1999) 255.

[24] L.Y. Ni, C. Liu, C.G. Zhou, et al. International J. of Modern Physics B, 24 (2010) 3161.

[25] T. Beck, R. Herzog, O. Trunova, et al. Surf. & Coat. Technol., 202 (2008) 5901.
