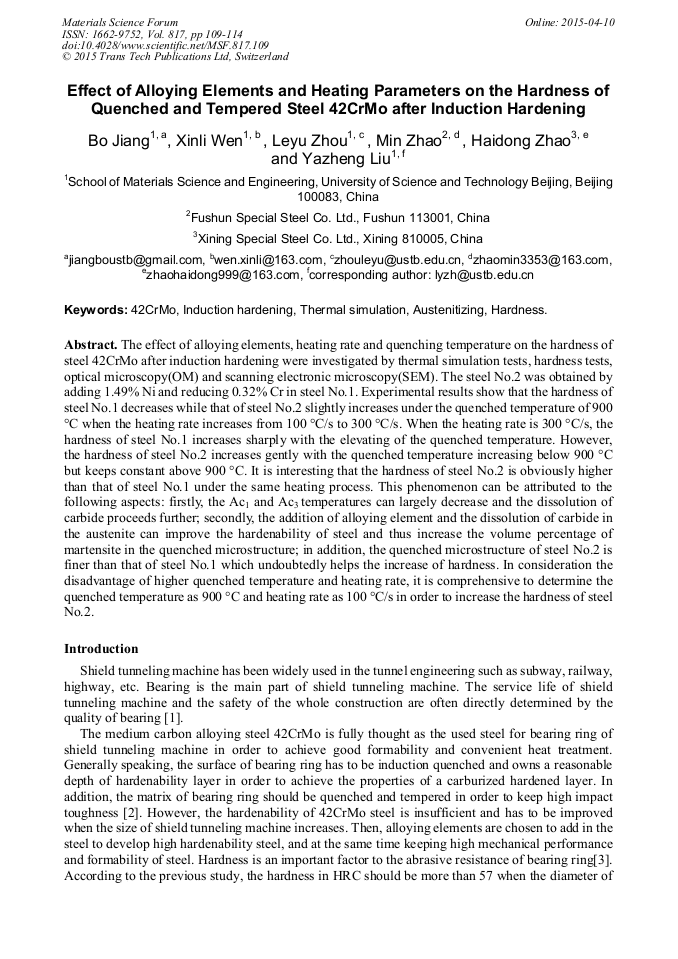

Effect of Alloying Elements and Heating Parameters on the Hardness of Quenched and Tempered Steel 42CrMo after Induction Hardening

Abstract:

The effect of alloying elements, heating rate and quenching temperature on the hardness of steel 42CrMo after induction hardening were investigated by thermal simulation tests, hardness tests, optical microscopy (OM) and scanning electronic microscopy (SEM). The steel No.2 was obtained by adding 1.49% Ni and reducing 0.32% Cr in steel No.1. Experimental results show that the hardness of steel No.1 decreases while that of steel No.2 slightly increases under the quenched temperature of 900 °C when the heating rate increases from 100 °C/s to 300 °C/s. When the heating rate is 300 °C/s, the hardness of steel No.1 increases sharply with the elevating of the quenched temperature. However, the hardness of steel No.2 increases gently with the quenched temperature increasing below 900 °C but keeps constant above 900 °C. It is interesting that the hardness of steel No.2 is obviously higher than that of steel No.1 under the same heating process. This phenomenon can be attributed to the following aspects: firstly, the Ac₁ and Ac₃ temperatures can largely decrease and the dissolution of carbide proceeds further; secondly, the addition of alloying element and the dissolution of carbide in the austenite can improve the hardenability of steel and thus increase the volume percentage of martensite in the quenched microstructure; in addition, the quenched microstructure of steel No.2 is finer than that of steel No.1 which undoubtedly helps the increase of hardness. In consideration the disadvantage of higher quenched temperature and heating rate, it is comprehensive to determine the quenched temperature as 900 °C and heating rate as 100 °C/s in order to increase the hardness of steel No.2.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 109-114
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.109
• Online since: April 2015
• Authors: Bo Jiang, Xin Li Wen, Le Yu Zhou, Min Zhao, Hai Dong Zhao, Ya Zheng Liu
• Keywords: 42CrMo, Austenitizing, Hardness, Induction Hardening, Thermal Simulation

References

[1] Y. Koyama, Present status and technology of shield tunneling method in Japan, Tunnelling. Underground. Space. Technol. 18 (2003) 145-159.

DOI: 10.1016/s0886-7798(03)00040-3

[2] A. Salemi, A. Abdollah-Zadeh, The effect of tempering temperature on the mechanical properties and fracture morphology of a NiCrMoV steel, Mater. Charact. 59 (2008) 484-487.

DOI: 10.1016/j.matchar.2007.02.012

[3] M.A. Moore, The relationship between the abrasive wear resistance, hardness and microstructure of ferritic materials, Wear. 28 (1974) 59-68.

DOI: 10.1016/0043-1648(74)90101-x

[4] Y.Z. Liu, B Huang , B Jiang, Development and quality control of bearing steel for tunnel shield machine, Iron. Steel. 49 (2014) 1-6 (in Chinese).

[5] H. Azizi-Alizamini, M. Militzer, W.J. Poole, Austenite Formation in Plain Low-Carbon Steels, Metall. Mater. Trans. A. 42 (2011) 1544-1557.

DOI: 10.1007/s11661-010-0551-5

[6] B.Q. Ning, Z.S. Yan, J.C. Fu, The effect of heating rate on the austenization process of T91 ferritic heat-resistant steel, Mater. Sci. Tech. 17 (2009) 329-332 (in Chinese).

[7] V.B. Ginzburg, Steel-rolling technology: theory and practice, Marcel Dekker, New York, (1989).

[8] B.H. Yu, Computer design of steel, Metallurgical Industry Press, Beijing, 1996 (in Chinese).

[9] Y.Q. Wen, Progress of theory and controlled technology of ultrafine grained steel, Iron. Steel. 40 (2005) 1-8 (in Chinese).

[10] P. Smith, Equilibrium of iron-carbon alloys with mixtures of CO-CO2 and CH4-H2, J. Amer. Chem. Soc. 68 (1946) 1163-1175.

[11] R.P. Smith, The diffusivity of carbon in iron by the steady state method, Acta. Metall. 1 (1953) 578-587.

[12] G.Y. Xu, Y. Z An, Austenite homogenization of steel by induction pulse heating, Heat. Treat. Met. 22 (1997) 10-12 (in Chinese).

[13] S. S Babu, H. Bhadeshia, Diffusion of carbon in substitutionally alloyed austenite, J. Mater. Sci. Lett. 14 (1995) 314-316.

DOI: 10.1007/bf00592135
