Network Carbide Inheritance during Heat Treatment Process of Large Shield Machine Bearing Steel GCr15SiMn

Abstract:

Network carbide inheritance during heat treatment process of large shield machine bearing steel GCr15SiMn was investigated by heat treatment experiments and quantitative metallographic. Samples with the proeutectoid cementite network thickness in the range of 0.19~0.54 μm were obtained by changing austenitizing temperature and soaking time of pearlite transformation. The results show that the network in hot rolled bar can be improved when the pre-heat treatment temperature is 950 °C. When the network thickness is above 0.40 μm, the undissolved cementite networks present in microstructures after quenching and tempering. In a Chinese standard, the network grades are 1.5 and 3.0 degree when the networks thickness are 0.40 μm and 0.54 μm, respectively. The critical network thickness that can be eliminated by heat treatment is 0.29 μm.

You might also be interested in these eBooks

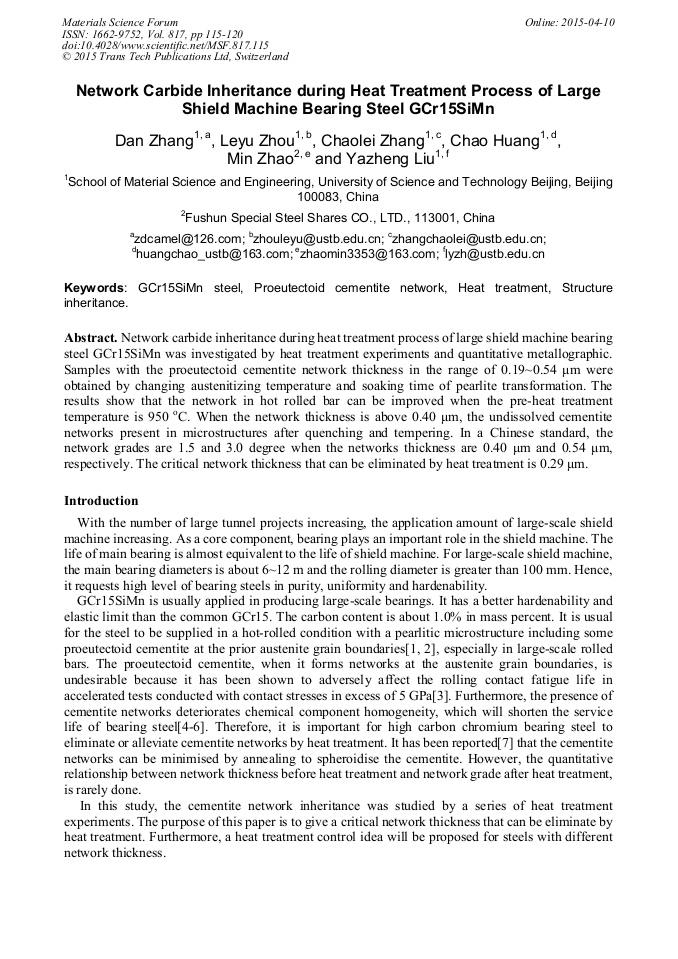

View Preview

Info:

Periodical:

Materials Science Forum (Volume 817)

Pages:

115-120

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.817.115

Citation:

Cite this paper

Online since:

April 2015

Authors:

Dan Zhang*, Le Yu Zhou, Chao Lei Zhang, Chao Huang, Min Zhao, Ya Zheng Liu

Keywords:

GCr15SiMn Steel, Heat Treatment, Proeutectoid Cementite Network, Structure Inheritance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Q. W. Chen, J. H. Guan, G.H. Zhu, et al., Transactions of Materials and Heat Treatment, 34(5)(2013), p.186.

Google Scholar

[2] H. K. D. H. Bhadeshia, Progress in Materials Science, 57(2012), p.268.

Google Scholar

[3] Anonymous, Derbyshire UK: Technical Report May, (1982), p.38.

Google Scholar

[4] C. A. Stickels, Metallurgical Transactions, 5(4)(1974), p.865.

Google Scholar

[5] X. Xu, Z. Yu, Engineering Failure Analysis, 13(5)(2006), p.857.

Google Scholar

[6] W. Z. Li, H. X. Ma, L. Huang, et al., Heat Treatment of Metals, 37(8)(2012), p.36.

Google Scholar

[7] S. Chattopadhyay, C. M. Sellars, Acta Metallurgica, 30(1)(1982), p.157.

Google Scholar

[8] J.C. Shen, J.Z. Lei, Y. Luan, et al. GB/T 18254-2002: High-carbon chromium bearing steel. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China & Standardization Administration of The People's republic of China, July, (2002).

Google Scholar

[9] J. Agren: Scripta Metall., 20(1986), p.1507.

Google Scholar
