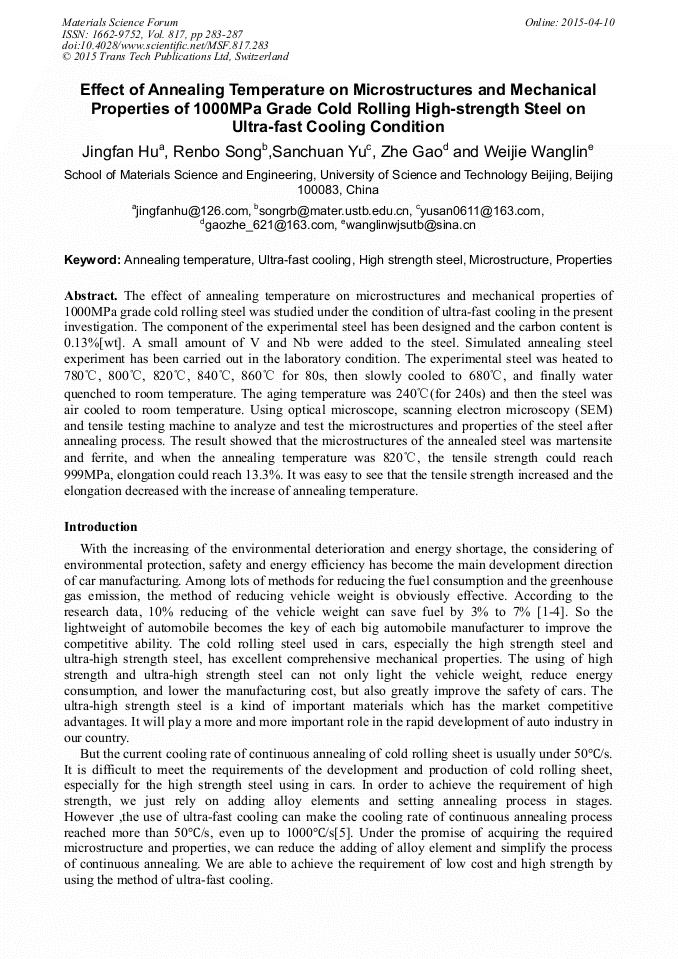

Effect of Annealing Temperature on Microstructures and Mechanical Properties of 1000MPa Grade Cold Rolling High-Strength Steel on Ultra-Fast Cooling Condition

Abstract:

The effect of annealing temperature on microstructures and mechanical properties of 1000MPa grade cold rolling steel was studied under the condition of ultra-fast cooling in the present investigation. The component of the experimental steel has been designed and the carbon content is 0.13%[wt]. A small amount of V and Nb were added to the steel. Simulated annealing steel experiment has been carried out in the laboratory condition. The experimental steel was heated to 780°C, 800°C, 820°C, 840°C, 860°C for 80s, then slowly cooled to 680°C, and finally water quenched to room temperature. The aging temperature was 240°C(for 240s) and then the steel was air cooled to room temperature. Using optical microscope, scanning electron microscopy (SEM) and tensile testing machine to analyze and test the microstructures and properties of the steel after annealing process. The result showed that the microstructures of the annealed steel was martensite and ferrite, and when the annealing temperature was 820°C, the tensile strength could reach 999MPa, elongation could reach 13.3%. It was easy to see that the tensile strength increased and the elongation decreased with the increase of annealing temperature.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 283-287
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.283
• Online since: April 2015
• Authors: Jing Fan Hua*, Ren Bo Song, San Chuan Yu, Zhe Gao, Wei Jie Wanglin
• Keywords: Annealing Temperature, High Strength Steel, Microstructure, Properties, Ultra-Fast Cooling

References

[1] Z. Dayan, G. Jixiang, C. Qilin, X. Liqun, Development and Application of 700MPa Ultra-high Strength Steel, Metallurgical Collections, 3(2011) 8-12.

[2] L. Jiangxin, W. Li, Production and Application of High Strength Steel Sheet for Automobile, Automobile Technology & Material, (2004) 1-6.

[3] G. Honggang, L. Minghui, K. Haijun, Overview of Domestic Cold-rolled Sheet for Automobile, Bengang Technology, (2009) 29-31.

[4] Z. Zheng, Development, Application and Perspective of High Strength Steel Sheets for Automobiles, Iron and Steel, 35(2000) 66-70.

[5] Z. Xianmeng, K. Yonglin, H. Qihang, Influence of Continuous Annealing and Water Quenching & Tempering Processes on Yield Characteristics of DP1000 Steel, Journal of Materials Engineering, (2012) 39-43.

[6] Q. Hua, M. Xiang, H. Chuanshun, Z. Bingrong, C. Yong, Ferrite Percentage Measurement of Duplex Stainless Steel Layering Based on Counting and Photoshop Pixel Method, Journal of Liaoning Shihua University, 33(2013) 76-79.

[7] Z. Feng, S. Renbo, L. Yazheng, Research on Heat Treatment Process and Properties of 1000MPa Cold Rolling Dual Phase Steel, Material & Heat Treatment, 37(2008) 42-45.

[8] R.O. Rocha, T.M.F. Melo, E.V. Pereloma, D.B. Santos, Microstructure Evolution at the Initial Stages of Continuous Annealing of Cold Rolled Dual-Phase Steel, (2005) 296-304.

DOI: 10.1016/j.msea.2004.08.081
