Study on Composite Interface of 4045/3003 by Cladding Casting

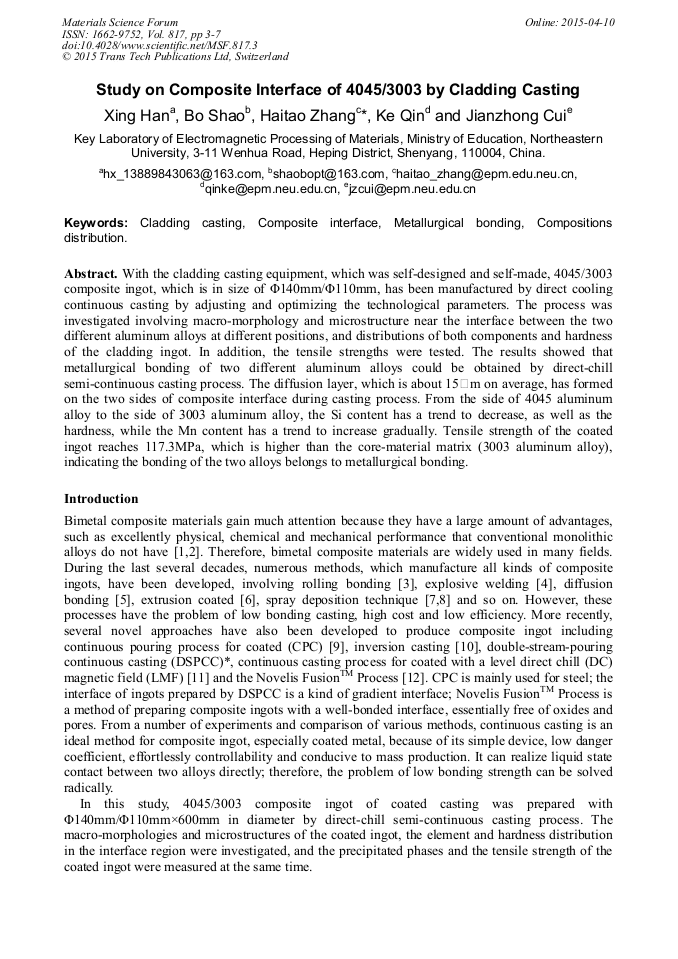

Abstract:

With the cladding casting equipment, which was self-designed and self-made, 4045/3003 composite ingot, which is in size of Φ140mm/Φ110mm, has been manufactured by direct cooling continuous casting by adjusting and optimizing the technological parameters. The process was investigated involving macro-morphology and microstructure near the interface between the two different aluminum alloys at different positions, and distributions of both components and hardness of the cladding ingot. In addition, the tensile strengths were tested. The results showed that metallurgical bonding of two different aluminum alloys could be obtained by direct-chill semi-continuous casting process. The diffusion layer, which is about 15μm on average, has formed on the two sides of composite interface during casting process. From the side of 4045 aluminum alloy to the side of 3003 aluminum alloy, the Si content has a trend to decrease, as well as the hardness, while the Mn content has a trend to increase gradually. Tensile strength of the coated ingot reaches 117.3MPa, which is higher than the core-material matrix (3003 aluminum alloy), indicating the bonding of the two alloys belongs to metallurgical bonding.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 3-7
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.3
• Online since: April 2015
• Authors: Xing Han, Bo Shao, Hai Tao Zhang*, Ke Qin, Jian Zhong Cui
• Keywords: Cladding Casting, Composite Interface, Compositions Distribution, Metallurgical Bonding

References

[1] T.B. Grishabar, A.V. Sergueeva, R.S. Mishra, A.K. Mukherjeeet, Laminated metal composites - high temperature deformation behavior, Mater. Sci. Eng. A. 403 (2005) 17-24.

DOI: 10.1016/j.msea.2005.03.112

[2] M. Hiroaki, W. Sadaoand, H. Shuji, Fabrication of pure Al/Mg-Li alloy clad plate and its mechanical properties, J. Mater. Process. Technol. 169 (2005) 9-15.

[3] H. Dyia, S. Mroz, A. Milenin, Theoretical and experimental analysis of the rolling process of bimetallic rods Cu-steel and Cu-Al, J. Mater. Process. Technol. 153 (2004) 100-107.

DOI: 10.1016/j.jmatprotec.2004.04.186

[4] A.G. Mamalis, A. Szalay, N.M. Vaxevanidis, D.E. Manolakos, Fabrication of bimetallic rods by explosive cladding and warm extrusion J. Mater. Process. Technol. 83 (1998) 48-53.

DOI: 10.1016/s0924-0136(98)00042-9

[5] D.V. Dunford, A. Wisbey, Diffusion bonding of advanced aerospace metallics, Mater. Res. Soc. Symp. Proc. 314 (1993) 39-50.

DOI: 10.1557/proc-314-39

[6] R. Sliwa, Plastic zones in the extrusion of metal composite, J. Mater. Process. Technol. 67 (1997) 29-35.

[7] A.R.E. Singer, The principles of spray rolling of metals, Met. Mater. 4 (1970) 246-250.

[8] Y.Q. He, Z.G. Chen, Current state developing trends of multi-layer spray deposited aluminum matrix composites reinforced with particles, J Mater. Sci. Eng. 30 (2012) 943-949.

[9] M. Hashimoto, T. Tanaka, T. Inoue, M. Yamashita, R. Kurahashi, R. Terakado, Development of cold rolling mill rolls of high speed steel type by using continuous pouring process for cladding, ISIJ Inter. 42 (2002) 982-989.

DOI: 10.2355/isijinternational.42.982

[10] N. Li, S.R. Guo, D.Z. Lu, Z.Q. Hu, Technique of aluminum alloy composite by inversion casting, J. Mater. Sci. Technol. 18 (2002) 187-188.

[11] E. Takeuchi, M. Zeze, H. Tanaka, H. Harada, S. Mizoguchi, Novel continuous casting process for clad steel slabs with level DC magnetic field Ironmaking Steelmaking, 24 (1997) 257-263.

[12] A. Gupta, S.T. Lee, R.B. Wagstaff, Direct chill casting of aluminum-manganese against aluminum-silicon layer via Novelis fusion process, Materials Technology, 22 (2007) 71-75.

DOI: 10.1179/175355507x214069
