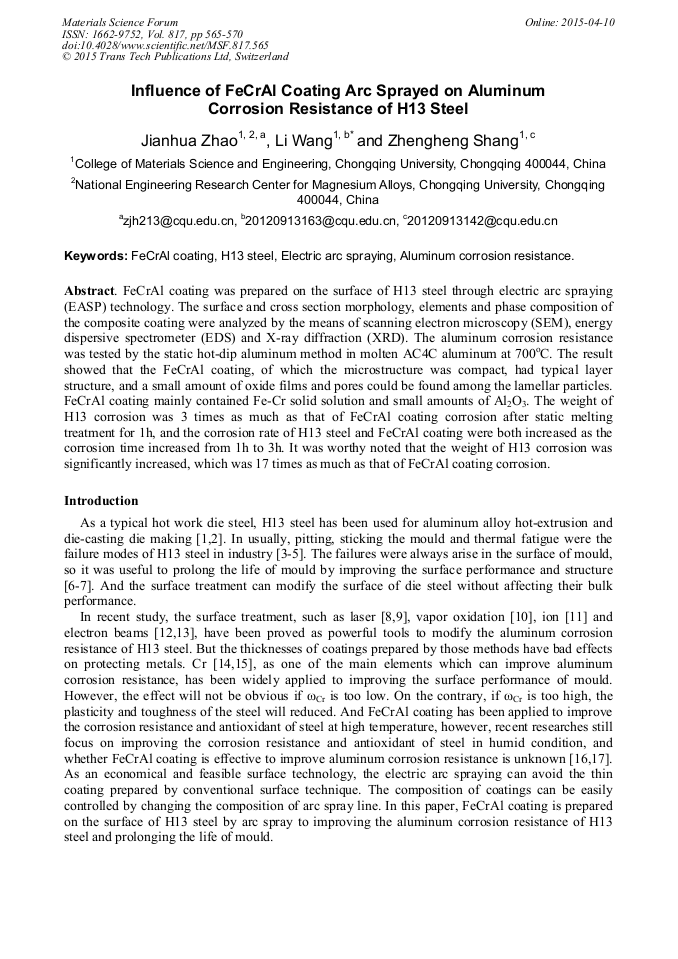

Influence of FeCrAl Coating Arc Sprayed on Aluminum Corrosion Resistance of H13 Steel

Abstract:

FeCrAl coating was prepared on the surface of H13 steel through electric arc spraying (EASP) technology. The surface and cross section morphology, elements and phase composition of the composite coating were analyzed by the means of scanning electron microscopy (SEM), energy dispersive spectrometer (EDS) and X-ray diffraction (XRD). The aluminum corrosion resistance was tested by the static hot-dip aluminum method in molten AC4C aluminum at 700°C. The result showed that the FeCrAl coating, of which the microstructure was compact, had typical layer structure, and a small amount of oxide films and pores could be found among the lamellar particles. FeCrAl coating mainly contained Fe-Cr solid solution and small amounts of Al₂O₃. The weight of H13 corrosion was 3 times as much as that of FeCrAl coating corrosion after static melting treatment for 1h, and the corrosion rate of H13 steel and FeCrAl coating were both increased as the corrosion time increased from 1h to 3h. It was worthy noted that the weight of H13 corrosion was significantly increased, which was 17 times as much as that of FeCrAl coating corrosion.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 565-570
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.565
• Online since: April 2015
• Authors: Jian Hua Zhao, Li Wang*, Zheng Heng Shang
• Keywords: Aluminum Corrosion Resistance, Electric Arc Spraying, FeCrAl Coating, H13 Steel

References

[1] J.H. Liu, G.X. Wang, et al, Inclusion Variations of Hot Working Die Steel H13 in Refining Process, Journal of Iron and Steel Research, International. 19(2012) 1-7.

DOI: 10.1016/s1006-706x(13)60012-6

[2] D. Papageorgiou, C. Medrea, N. Kyriakou, Failure analysis of H13 working die used in plastic injection moulding, Engineering Failure Analysis. 35(2013) 355-359.

DOI: 10.1016/j.engfailanal.2013.02.028

[3] S. Jhavar, C.P. Paul, N.K. Jain, Causes of failure and repairing options for dies and molds: A review, Engineering Failure Analysis. 34(2013) 519–535.

DOI: 10.1016/j.engfailanal.2013.09.006

[4] Klobčar D, Tušek J, Taljat B, Thermal fatigue of materials for die-casting tooling, Materials Science and Engineering: A. 472(2008) 198-207.

DOI: 10.1016/j.msea.2007.03.025

[5] Lavtar L, Muhič T, Kugler G, Terčelj M, Analysis of the main types of damage on a pair of industrial dies for hot forging car steering mechanisms. Engineering Failure Analysis. 18(2011) 1143-1152.

DOI: 10.1016/j.engfailanal.2010.11.002

[6] B.S. Xu, Jun Tan, J.M. Chen, Science and Technology Development of Surface Engineering, China Surface Engineering. 02(2011) 1-12.

[7] Fazarinc M, Muhič T, Kugler G, Terčelj M, Thermal fatigue properties of differently constructed functionally graded materials aimed for refurbishing of pressure-die-casting dies, Engineering Failure Analysis. 25(2012) 238-249.

DOI: 10.1016/j.engfailanal.2012.05.016

[8] D.L. Cong, Zhou Hong, et al, The thermal fatigue resistance of H13 steel repaired by a biomimetic laser remelting process, Materials & Design. 55(2014) 597-604.

DOI: 10.1016/j.matdes.2013.09.076

[9] G. Telasang, J. Dutta Majumdar, G. Padmanabham, I. Manna, Structure–property correlation in laser surface treated AISI H13 tool steel for improved mechanical properties, Materials Science and Engineering: A. (559)2014 255-267.

DOI: 10.1016/j.msea.2014.01.083

[10] Chang Shihhsien, Lin Yukai, Huang Kuotsung, Study on the thermal erosion, wear and corrosion behaviors of TiAlN/oxynitriding duplex-treated AISI H13 alloy steel, Surface and Coatings Technology. 207(2012) 571-578.

DOI: 10.1016/j.surfcoat.2012.07.080

[11] Nurşen Saklakoğlu, Characterization of surface mechanical properties of H13 steel implanted by plasma immersion ion implantation, Journal of Materials Processing Technology. 189(2007) 367-373.

DOI: 10.1016/j.jmatprotec.2007.02.014

[12] J.X. Zou , A.M. Wu, et al, Oxidation protection of AISI H13 steel by high current pulsed electron beam treatment, Surface and Coatings Technology. 183(2004) 261-267.

DOI: 10.1016/j.surfcoat.2003.08.087

[13] Kai Weigel, Klaus Bewilogua, et al, Effects of electron beam treatment on Ti(1−x)AlxN coatings on steel, Vacuum. 107(2014) 141-144.

DOI: 10.1016/j.vacuum.2014.04.023

[14] P.L. Ge, M.D. Bao, et al , Effect of plasma nitriding on adhesion strength of CrTiAlN coatings on H13 steels by closed field unbalanced magnetron sputter ion plating, Surface and Coatings Technology. 229(2013) 146-150.

DOI: 10.1016/j.surfcoat.2012.08.002

[15] Zhu Ran. Studies on high-temperature oxidation and its influence mechanism of Fe-Cr-Al alloy. Shenyang: Shenyang Normal University, 2013: 22-24.

[16] D.Y. Li, S.G. E, Z.L. Zhang, et al, High temperature antioxidation mechanism of arc-sprayed Fe-Cr-Al/Al composite coatings, Journal of Shenyang University of Technology. 31(2009) 292-295.

[17] S.Z. Hao, L.M. Zhao, D.Y. He, Surface microstructure and high temperature corrosion resistance of arc-sprayed FeCrAl coating irradiated by high current pulsed electron beam, Nuclear Instruments and Methods in Physics Research B. 312(2013) 97–103.

DOI: 10.1016/j.nimb.2013.07.015
