Superhydrophobic Surface Prepared by Organic-Inorganic Hybrid Material on Plasma Spraying Al₂O₃+13wt. %TiO₂ Ceramic Coating

Abstract:

The plasma spraying Al₂O₃+13wt. %TiO₂ ceramic coating was coated with organic-inorganic hybrid emulsion. The hybrid emulsion prepared through co-hydrolysis and copolycondensation reactions of tetraethoxysilane (TEOS) and methyltriethoxysilane (MTES), and methylsilicone resin was added in the emulsion to improve the film-forming properties. The morphologies, chemical compositions and hydrophobicity of the resulting surfaces were analyzed by scanning electron microscopy (SEM), 3-dimensional stereoscopic microscope, energy dispersive X-ray detector (EDX), Fourier transfer infrared spectrometer (FT-IR) and water contact angle measurement. When the mole ratio of TEOS/MTES and the weight ratio of methylsilicone resin were 1:1 and 3.5wt. %, respectively, this surface displayed good film-forming properties. The contact angle was 130.24°, and the contact angle hysteresis was less than 10°.

You might also be interested in these eBooks

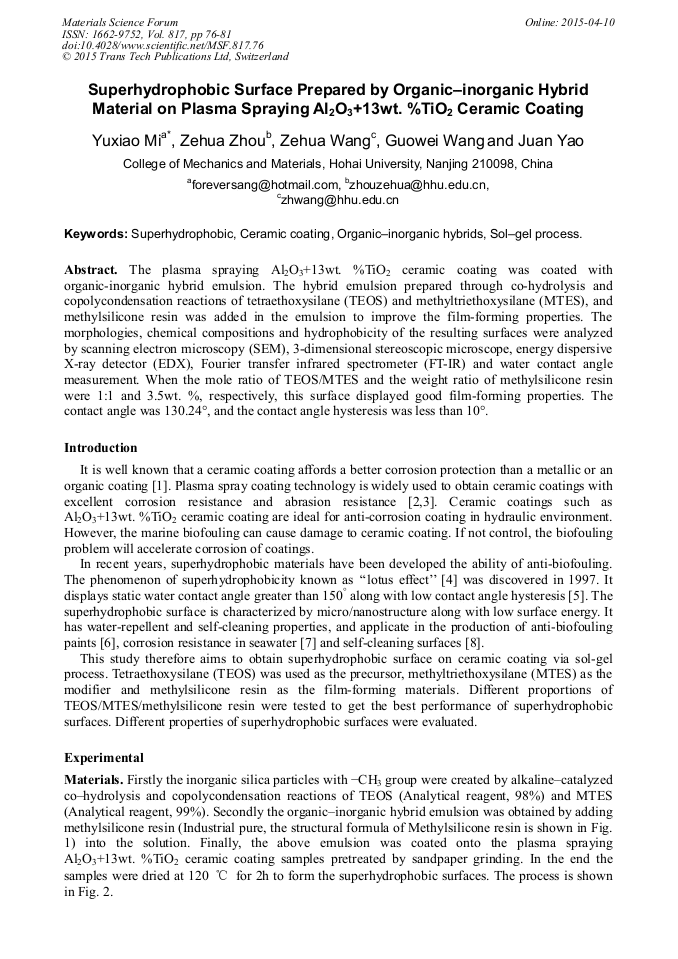

View Preview

Info:

Periodical:

Materials Science Forum (Volume 817)

Pages:

76-81

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.817.76

Citation:

Cite this paper

Online since:

April 2015

Authors:

Yu Xiao Mi*, Ze Hua Zhou, Ze Hua Wang, Guo Wei Wang, Juan Yao

Keywords:

Ceramic Coating, Organic–Inorganic Hybrids, Sol–Gel Process, Superhydrophobic

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Yan, J. He, X. Li, Y. Liu , J. Zhang, H. Ding, An investigation of the corrosion behavior of Al2O3-based ceramic composite coatings in dilute HCl solution, Surf. Coat. Technol. 141(2001) 1-6.

DOI: 10.1016/s0257-8972(01)01170-7

Google Scholar

[2] J.M. Guilemany, N. Espallargas, P.H. Suegama, A.V. Benedetti, Comparative Study of Cr3C2-NiCr Coatings Obtained by HVOF and Hard Chromium Coatings, Corros. Sci. 48(2006) 2998-3013.

DOI: 10.1016/j.corsci.2005.10.016

Google Scholar

[3] P.H. Suegama, C.S. Fugivara, A.V. Benedetti, J.M. Guilemany, J. Fernandez , J. Delgado, The influence of gun transverse speed on electrochemical behaviour of thermally sprayed Cr3C2-NiCr coatings in 0. 5 M H2SO4 solution, Electrochim. Acta 49(2004).

DOI: 10.1016/j.electacta.2003.09.017

Google Scholar

[4] W. Barthlott, C. Neinhuis, Purity of the sacred lotus, or escape from contamination in biological surface, Planta 202(1997) 1-8.

DOI: 10.1007/s004250050096

Google Scholar

[5] T.P.N. Nguyen, R. Dufour, V. Thomy, V. Senez, R. Boukherroub, Y. Coffinier, Fabrication of superhydrophobic and highly oleophobic silicon-based surfaces via electroless etching method, Appl. Surf. Sci. 295(2014) 38-43.

DOI: 10.1016/j.apsusc.2013.12.166

Google Scholar

[6] A. Scardino, A. De Nys, O. Ison, W. O'Connor, P. Steinberg, Microtopography and antifouling properties of the shell surface of the bivalve molluscs mytilus galloprovincialis and pinctada imbricata, Biofouling. 19(2003) 221-230.

DOI: 10.1080/0892701021000057882

Google Scholar

[7] T. Liu, Y. Yin, S. Chen, X. Chang, S. Cheng, Super-hydrophobic surfaces improve corrosion resistance of copper in seawater, Electrochim. Acta 52(2007) 3709-3713.

DOI: 10.1016/j.electacta.2006.10.059

Google Scholar

[8] D. Quéré, Non-sticking drops, Rep. Prog. Phys. 68(2005) 2495–2532.

DOI: 10.1088/0034-4885/68/11/r01

Google Scholar

[9] L. Zhao, Q. Liu, R. Gao, J. Wang, W. Yang, L. Liu, One-step method for the fabrication of superhydrophobic surface on magnesium alloy and its corrosion protection, antifouling performance, Corros. Sci. 80(2014) 177-183.

DOI: 10.1016/j.corsci.2013.11.026

Google Scholar

[10] Y. Fan, C. Li, Z. Chen, H. Chen, Study on fabrication of the superhydrophobic sol-gel films based on copper wafer and its anti-corrosive properties, Appl. Surf. Sci. 258(2012) 6531-6536.

DOI: 10.1016/j.apsusc.2012.03.072

Google Scholar
