Dry Sliding Wear Behavior of EB Surface-Alloyed and Dispersed AZ91 Magnesium Alloy under Mild Wear Conditions

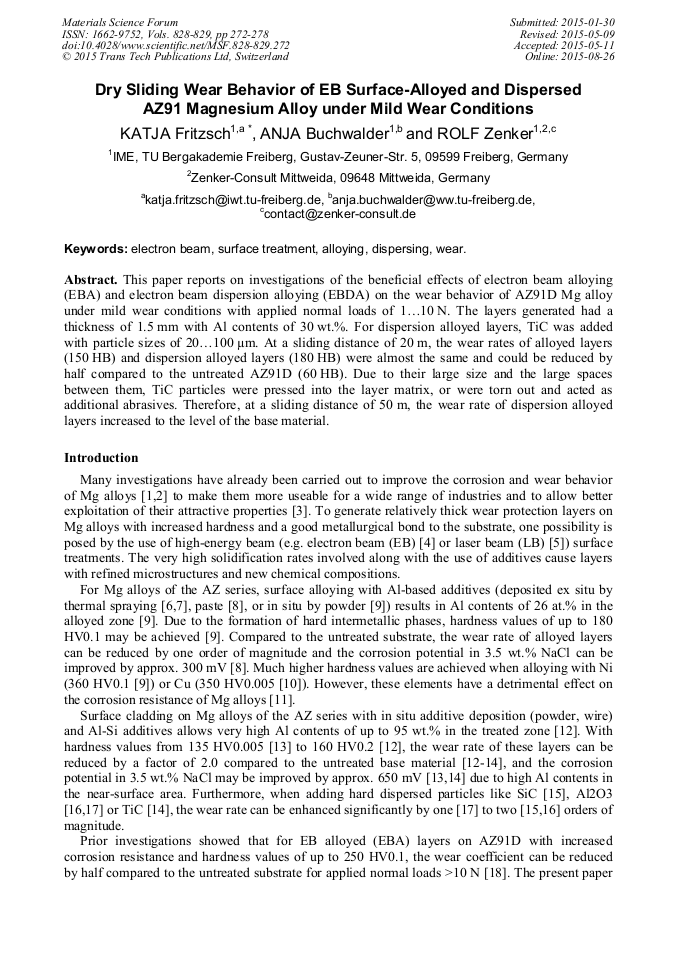

Abstract:

This paper reports on investigations of the beneficial effects of electron beam alloying (EBA) and electron beam dispersion alloying (EBDA) on the wear behavior of AZ91D Mg alloy under mild wear conditions with applied normal loads of 1…10 N. The layers generated had a thickness of 1.5 mm with Al contents of 30 wt.%. For dispersion alloyed layers, TiC was added with particle sizes of 20…100 µm. At a sliding distance of 20 m, the wear rates of alloyed layers (150 HB) and dispersion alloyed layers (180 HB) were almost the same and could be reduced by half compared to the untreated AZ91D (60 HB). Due to their large size and the large spaces between them, TiC particles were pressed into the layer matrix, or were torn out and acted as additional abrasives. Therefore, at a sliding distance of 50 m, the wear rate of dispersion alloyed layers increased to the level of the base material.

• Periodical: Materials Science Forum (Volumes 828-829)
• Pages: 272-278
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.828-829.272
• Online since: August 2015
• Authors: Katja Fritzsch*, Anja Buchwalder, Rolf Zenker
• Keywords: Alloying, Dispersing, Electron Beam, Surface Treatment, Wear

References

[1] Gray, G. E.; Luan, B.: J. of Alloys and Compounds. 336(1-2) (2002) 88.

[2] Song, G. -L.: Mat. Science Forum 488/489 (2003) 649.

[3] Mordike, B. L.; Ebert, T.: Mat. Science and Engineering A. 302 1(2001) 37.

[4] Zenker, R.; Klemm, M.: In: Kainer, K.U. (Ed. ): Magnesium. 8th Int. Conf. on Mg Alloys and their Applications. Weimar, October 2009, 927.

[5] Singh, A.; Harimkar, S. P.: JOM 64(6) (2012) 716.

[6] Pokhmurska, H.; Wielage, B.; Lampke, T.; Grund, T.; Student, M.; Chervinska, N.: Surf. & Coat. Tech. 202 (2008) 4515.

DOI: 10.1016/j.surfcoat.2008.04.036

[7] Qian, M.; Li, D.; Liu, S.B.; Gong, S.L.: Corrosion Science 51 (2010) 3554.

[8] Paital, S. R.; Bhattacharya, A.; Moncayo, M.; Hsien Ho, Y.; Mahdak, K.; Nag, S.; Banerjee, R.; Dahotre, N. B.: Surf. & Coat. Tech. 206 (2012) 2308.

DOI: 10.1016/j.surfcoat.2011.10.009

[9] Galun, R.; Weisheit, A.; Mordike, B. L.: In: Bremer Inst. f. Angewandte Strahltechnik (Ed. ): ECLAT'94. Proc. of the 5th Europ. Conf. on Laser Treatment of Materials. Bd. 163 DVS-Berichte. Bremen-Vegesack, September 1994, 421.

[10] Gao, Y.; Wang, C.; Pang, H.; Liu, H.; Yao, M.: Appl. Surf. Science 253 (2007) 4917.

[11] Song, G. -L.; Atrens, A.: Adv. Eng. Mat. 5, 12 (2003) 837.

[12] Carcel, B.; Sampedro, J.; Ruescas, A.; Toneu, X.: Phys. Procedia 12A (2011) 353.

[13] Bobzin, K.; Kopp, N.; Warda, T.; Schulz, C.; Rolink, G.; Weisheit, A.: J. of Thermal Spray Technology 22 2-3 (2013) 207.

DOI: 10.1007/s11666-012-9867-6

[14] Rolink, G.; Weisheit, A.; Wissenbach, K.; Schulz, C.; Bobzin, K.; Kopp, N.; Warda, T: In: Poole, W.J.; Kainer K.U. (Eds. ): Mg 2012 – 9th Int. Conf. on Mg Alloys and their Applications. Vancouver 2012, 273.

[15] Majumdar, J.D.; Chandra, B.R.; Galun, R.; Mordike, B.L.; Manna, I.: Composites Science and Technology 63(2003) 771.

DOI: 10.1016/s0266-3538(02)00266-x

[16] Majumdar, J.D.; Chandra, B.R.; Mordike, B.L.; Galun, R.; Manna, I.: Surf. & Coat. Tech. 179 (2004) 297.

[17] Hazra, M.; Mondal, A.K.; Kumar, S.; Blawert, C.; Dahotre, N.B.: Surf. & Coat. Tech. 203 (2009) 2292.

[18] Fritzsch, K.; Buchwalder, A.; Zenker, R.: In: Zoch, H. -W.; Schneider, R.; Lübben, T. (Eds): Europ. Conf. on Heat Treatment and 21st IFHTSE Congress. Munich 2014, 423.

[19] Lu, Y.; Wang, Q.; Zeng, X; Zhu, Y.; Ding, W.: Mat. Science and Techn. 17 (2001) 207.
