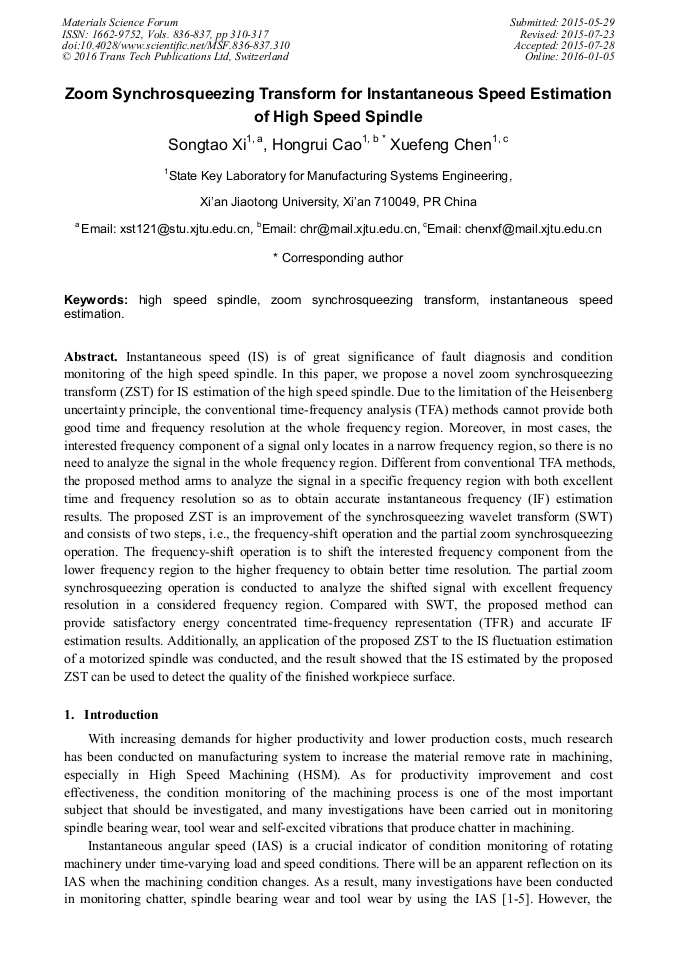

Zoom Synchrosqueezing Transform for Instantaneous Speed Estimation of High Speed Spindle

Abstract:

Instantaneous speed (IS) is of great significance of fault diagnosis and condition monitoring of the high speed spindle. In this paper, we propose a novel zoom synchrosqueezing transform (ZST) for IS estimation of the high speed spindle. Due to the limitation of the Heisenberg uncertainty principle, the conventional time-frequency analysis (TFA) methods cannot provide both good time and frequency resolution at the whole frequency region. Moreover, in most cases, the interested frequency component of a signal only locates in a narrow frequency region, so there is no need to analyze the signal in the whole frequency region. Different from conventional TFA methods, the proposed method arms to analyze the signal in a specific frequency region with both excellent time and frequency resolution so as to obtain accurate instantaneous frequency (IF) estimation results. The proposed ZST is an improvement of the synchrosqueezing wavelet transform (SWT) and consists of two steps, i.e., the frequency-shift operation and the partial zoom synchrosqueezing operation. The frequency-shift operation is to shift the interested frequency component from the lower frequency region to the higher frequency to obtain better time resolution. The partial zoom synchrosqueezing operation is conducted to analyze the shifted signal with excellent frequency resolution in a considered frequency region. Compared with SWT, the proposed method can provide satisfactory energy concentrated time-frequency representation (TFR) and accurate IF estimation results. Additionally, an application of the proposed ZST to the IS fluctuation estimation of a motorized spindle was conducted, and the result showed that the IS estimated by the proposed ZST can be used to detect the quality of the finished workpiece surface.

• Periodical: Materials Science Forum (Volumes 836-837)
• Pages: 310-317
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.836-837.310
• Online since: January 2016
• Authors: Song Tao Xi, Hong Rui Cao*, Xue Feng Chen
• Keywords: High Speed Spindle, Instantaneous Speed Estimation, Zoom Synchrosqueezing Transform

References

[1] F. Girardin, D. Rémond, J. -F. Rigal, Tool wear detection in milling—An original approach with a non-dedicated sensor, Mechanical Systems and Signal Processing, 24 (2010) 1907-(1920).

DOI: 10.1016/j.ymssp.2010.02.008

[2] M. Lamraoui, M. Thomas, M. El Badaoui, Cyclostationarity approach for monitoring chatter and tool wear in high speed milling, Mechanical Systems and Signal Processing, 44 (2014) 177-198.

DOI: 10.1016/j.ymssp.2013.05.001

[3] M. Lamraoui, M. Thomas, M. El Badaoui, F. Girardin, Indicators for monitoring chatter in milling based on instantaneous angular speeds, Mechanical Systems and Signal Processing, 44 (2014) 72-85.

DOI: 10.1016/j.ymssp.2013.05.002

[4] C. Stander, P. Heyns, Instantaneous angular speed monitoring of gearboxes under non-cyclic stationary load conditions, Mechanical Systems and Signal Processing, 19 (2005) 817-835.

DOI: 10.1016/j.ymssp.2004.10.006

[5] L. Renaudin, F. Bonnardot, O. Musy, J. Doray, D. Rémond, Natural roller bearing fault detection by angular measurement of true instantaneous angular speed, Mechanical Systems and Signal Processing, 24 (2010) 1998-(2011).

DOI: 10.1016/j.ymssp.2010.05.005

[6] K. Rodopoulos, C. Yiakopoulos, I. Antoniadis, A parametric approach for the estimation of the instantaneous speed of rotating machinery, Mechanical Systems and Signal Processing, 44 (2014) 31-46.

DOI: 10.1016/j.ymssp.2013.02.011

[7] R. Zimroz, J. Urbanek, T. Barszcz, W. Bartelmus, F. Millioz, N. Martin, Measurement of instantaneous shaft speed by advanced vibration signal processing-application to wind turbine gearbox, Metrology and Measurement Systems, 18 (2011) 701-712.

DOI: 10.2478/v10178-011-0066-4

[8] I. Djurović, L. Stanković, An algorithm for the Wigner distribution based instantaneous frequency estimation in a high noise environment, Signal Processing, 84 (2004) 631-643.

DOI: 10.1016/j.sigpro.2003.12.006

[9] I. Daubechies, J. Lu, H. -T. Wu, Synchrosqueezed wavelet transforms: An empirical mode decomposition-like tool, Applied and Computational Harmonic Analysis, 30 (2011) 243-261.

DOI: 10.1016/j.acha.2010.08.002

[10] G. Thakur, E. Brevdo, N.S. Fučkar, H. -T. Wu, The Synchrosqueezing algorithm for time-varying spectral analysis: Robustness properties and new paleoclimate applications, Signal Processing, 93 (2013) 1079-1094.

DOI: 10.1016/j.sigpro.2012.11.029

[11] C. Li, M. Liang, A generalized synchrosqueezing transform for enhancing signal time–frequency representation, Signal Processing, 92 (2012) 2264-2274.

DOI: 10.1016/j.sigpro.2012.02.019

[12] Z. Feng, X. Chen, M. Liang, Iterative generalized synchrosqueezing transform for fault diagnosis of wind turbine planetary gearbox under nonstationary conditions, Mechanical Systems and Signal Processing, 52 (2015) 360-375.

DOI: 10.1016/j.ymssp.2014.07.009

[13] S. Xi, H. Cao, X. Chen, X. Zhang, X. Jin, A Frequency-Shift Synchrosqueezing Method for Instantaneous Speed Estimation of Rotating Machinery, Journal of Manufacturing Science and Engineering, 137 (2015) 031012.

DOI: 10.1115/1.4029824
