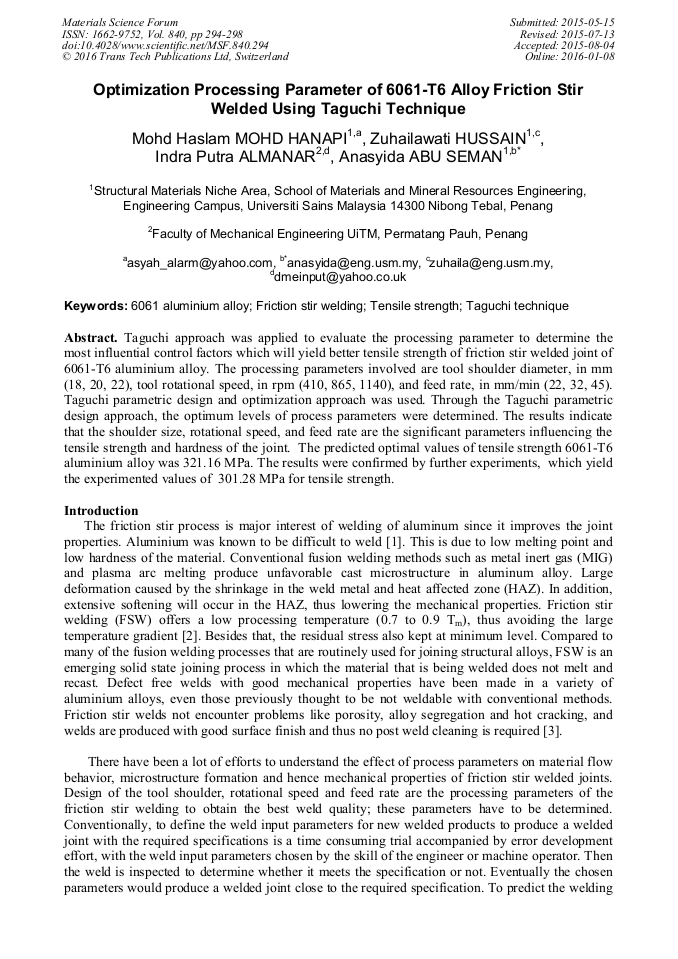

Optimization Processing Parameter of 6061-T6 Alloy Friction Stir Welded Using Taguchi Technique

Abstract:

Taguchi approach was applied to evaluate the processing parameter to determine the most influential control factors which will yield better tensile strength of friction stir welded joint of 6061-T6 aluminium alloy. The processing parameters involved are tool shoulder diameter, in mm (18 ,20, 22), tool rotational speed, in rpm (410, 865, 1140), and feed rate, in mm/min (22, 32, 45). Taguchi parametric design and optimization approach was used. Through the Taguchi parametric design approach, the optimum levels of process parameters were determined. The results indicate that the shoulder size, rotational speed, and feed rate are the significant parameters influencing the tensile strength and hardness of the joint. The predicted optimal values of tensile strength 6061-T6 aluminium alloy is 321.16 MPa. The results was confirmed by further experiments, where the experimented values for tensile strength is 301.28 MPa.

You might also be interested in these eBooks

Development and Investigation of Materials Using Modern Techniques

View Preview

Info:

Periodical:

Materials Science Forum (Volume 840)

Pages:

294-298

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.840.294

Citation:

Cite this paper

Online since:

January 2016

Authors:

Mohd Haslam Mohd Hanapi, Zuhailawati Hussain, Indra Putra Almanar, Anasyida Abu Seman*

Keywords:

6061 Aluminium Alloy, Friction Stir Welding, Taguchi Technique, Tensile Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Jayaraman, R. Sivasubramanian, B. Balasubramanian: Establishing relationship between the base metal properties and friction stir welding process parameters of cast aluminium alloys. Mater. Design, 31 (2010) 4567–4576.

DOI: 10.1016/j.matdes.2010.03.040

Google Scholar

[2] K. Elangovan: Predicting tensile strength of friction stir welded AA6061 aluminium alloy joints by a mathematical model, Mater. Design, 30 (2009) 188-193.

DOI: 10.1016/j.matdes.2008.04.037

Google Scholar

[3] Y.Y. Dong, P.W. Ai, S. Juergen, Y.S. Qing: Predicting residual distortion of aluminum alloy stiffened sheet after friction stir welding by numerical simulation. Mater. Design, 32 (2011) 2284–2291.

DOI: 10.1016/j.matdes.2010.11.032

Google Scholar

[4] A. K. Lakshminarayanan: Process parameters optimization for friction stir welding of RDE-40 aluminium alloy using Taguchi technique Trans. of Nonferrous Metals Soc. China, 18 (2009) 548-554.

DOI: 10.1016/s1003-6326(08)60096-5

Google Scholar
