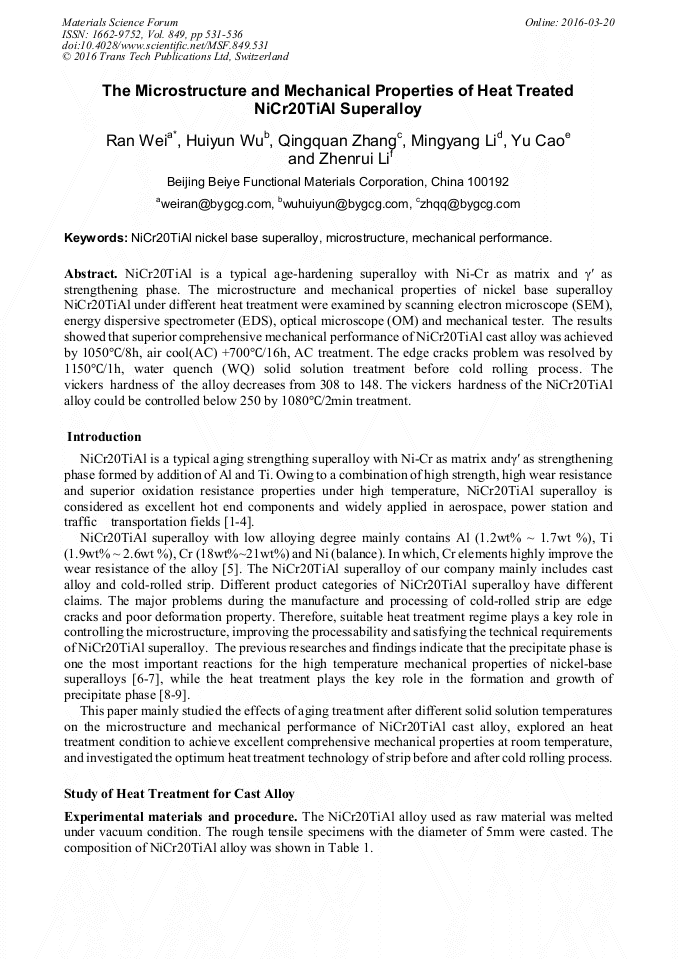

The Microstructure and Mechanical Properties of Heat Treated NiCr20TiAl Superalloy

Abstract:

NiCr20TiAl is a typical age-hardening superalloy with Ni-Cr as matrix and γ′ as strengthening phase. The microstructure and mechanical properties of nickel base superalloy NiCr20TiAl under different heat treatment were examined by scanning electron microscope (SEM), energy dispersive spectrometer (EDS), optical microscope (OM) and mechanical tester. The results showed that superior comprehensive mechanical performance of NiCr20TiAl cast alloy was achieved by 1050°C/8h, air cool (AC) +700°C/16h, AC treatment. The edge cracks problem was resolved by 1150°C/1h, water quench (WQ) solid solution treatment before cold rolling process. The vickers hardness of the alloy decreases from 308 to 148. The vickers hardness of the NiCr20TiAl alloy could be controlled below 250 by 1080°C/2min treatment.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 531-536
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.531
• Online since: March 2016
• Authors: Ran Wei*, Hui Yun Wu, Qing Quan Zhang, Ming Yang Li, Yu Cao, Zhen Rui Li
• Keywords: Mechanical Performance, Microstructure, NiCr20TiAl Nickel Base Superalloy

References

[1] Kim DK, Kim DY, Ryu SH, Kim DJ. Application of Nimonic 80A to the hot forging of an exhaust valve head. J Mater Process Technol 2001; 113: 148–52.

DOI: 10.1016/s0924-0136(01)00700-2

[2] Jeong HS, Cho JR, Park HC. Microstructure prediction of Nimonic 80A for large exhaust valve during hot closed die forging. J Mater Process Technol 2005; 162–163: 504–11.

DOI: 10.1016/j.jmatprotec.2005.02.101

[3] Wilthan B, Preis K, Tanzer R, Schützenhöfer W, Pottlacher G. Thermophysical properties of the Ni-based alloy Nimonic 80A up to 2400 K, II. J Alloys Compd 2008; 452: 102–4.

DOI: 10.1016/j.jallcom.2006.11.214

[4] B. Wilthan, R. Tanzer, W. Schützenhöfer and G. Pottlacher. Thermophysical properties of the Ni-based alloy Nimonic 80A up to 2400 K. J Rare Metals 2006; 25: 529 –531.

DOI: 10.1016/s1001-0521(06)60093-4

[5] R. Sunulahpašić, M. Oruč, M. Hadžalić and A. Gigović-Gekić. Analysis of the influence of chemical composition and temperature on mechanical properties of superalloys Nimonic80A . J METALURGIJA 2014; 1: 13–16.

[6] A.M. Ges, O. Fornaro and H.A. Palacio. Coarsening behaviour of a Ni-base superalloy under different heat treatment conditions. Materials Science and Engineering A 2007; 458: 96–100.

DOI: 10.1016/j.msea.2006.12.107

[7] Sabita Ghosh, Sandip Yadav and Goutam Das. Study of standard heat treatment on mechanical properties of Inconel 718 using ball indentation technique. Materials Letters 2008; 62: 2619–2622.

DOI: 10.1016/j.matlet.2008.01.001

[8] R.A. MacKay, M.V. Nathal. γ' coarsening in high volume fraction nickel-base alloys. Acta Metall. Mater 1990; 38: 993-1005.

DOI: 10.1016/0956-7151(90)90171-c

[9] A Ges, O Fornaro,  and H Palacio. Long term coarsening of γ' precipitates in a Ni-base superalloy. J. Mater. Sci 1997; 32: 3687-3691.

[10] Yulai Xu, Caixiong Yang, Xueshan Xiao. Strengthening behavior of Al and Ti elements at room temperature and hightemperature in modified Nimonic 80A. J Materials Chemistry and Physics 2012; 134: 706–715.

DOI: 10.1016/j.matchemphys.2012.03.055
