Effect of Sulfur on the Hot Plasticity of GH625 Superalloy

Abstract:

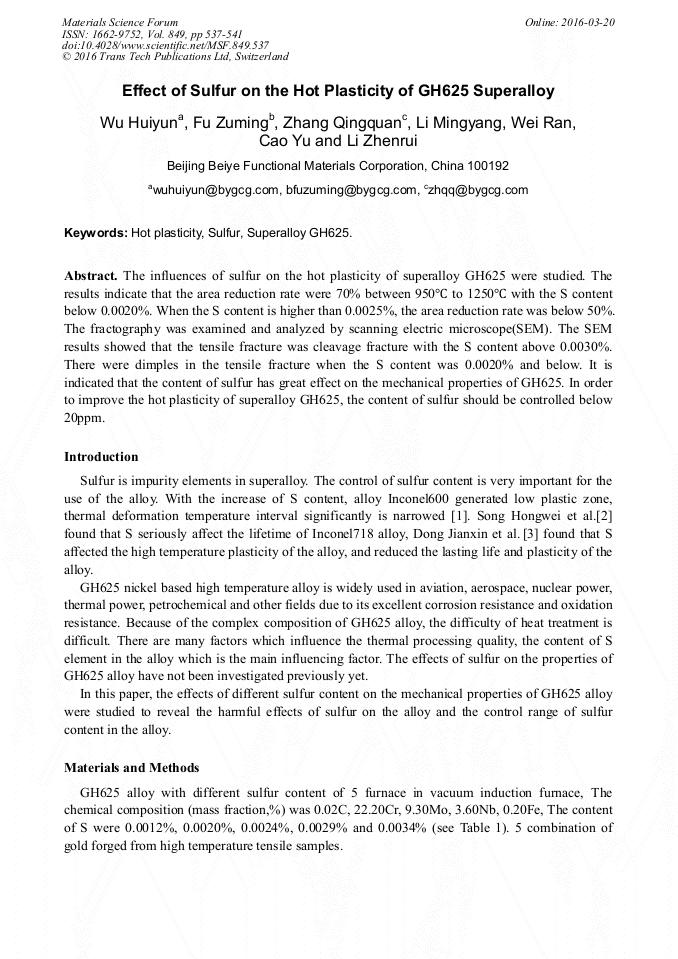

The influences of sulfur on the hot plasticity of superalloy GH625 were studied. The results indicate that the area reduction rate were 70% between 950°C to 1250°C with the S content below 0.0020%. When the S content is higher than 0.0025%, the area reduction rate was below 50%. The fractography was examined and analyzed by scanning electric microscope (SEM). The SEM results showed that the tensile fracture was cleavage fracture with the S content above 0.0030%. There were dimples in the tensile fracture when the S content was 0.0020% and below. It is indicated that the content of sulfur has great effect on the mechanical properties of GH625. In order to improve the hot plasticity of superalloy GH625, the content of sulfur should be controlled below 20ppm.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 537-541
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.537
• Online since: March 2016
• Authors: Hui Yun Wu, Zu Ming Fu, Qing Quan Zhang, Ming Yang Li, Ran Wei, Yu Cao, Zhen Rui Li
• Keywords: Hot Plasticity, Sulfur, Superalloy GH625

References

[1] Changxu Shi, Hengde Li, Dingzuo Wang, etc. A proposal on accelerating development of metallic magnesium industry in China[J]. Materials review, 2001, 15(4): 5-6.

[2] Kojima Y, Shigeharu Kamado. Fundamental Magnesium Researches in Japan [C]. Materials Science Forum, 2005, (488-489): 9-16.

DOI: 10.4028/www.scientific.net/msf.488-489.9

[3] Xutao Guo, Peijie Li, Shuxun Liu, etc. Development Status and prospect of heat resisant rare earth-magnesium alloy[J]. Foundry, 2012, 41(6): 181-183.

[4] CHANG Sen, SONG Jia, ZHANG Shaofeng. Study on Solid Solution Treatment of Mg-Gd-Y Heat-resistant Mg Alloy[J]. Hot Working Technology, 2012, 41(6): 181-183.

[5] LI Dehui, DONG Jie, ZENG Xiaoqin, etc. Research Progress of High-performance Magnesium Rare-earth Alloys[J]. Materials Review, 2005, 19（8）：51-54.

[6] BAO Xingcai. The Effects of Nb on Microstructure And Mechanical Properties of The ZM6 Alloy[D]. Harbin: Harbin aviation industry group, (2007).

[7] Wei L Y, Dunlop G L, Westengen H. Solidification behavior and phase constituents of cast Mg-Zn-Misch metal alloys[J]. J. Mater Sci., 1997, 32: 3335-3340.

[8] Guoru Fu. Study on segregation behavior of alloy solidification process[D]. Shenyang：nstitute of metal research in Chinese Academy of Sciences, (1992).

[9] Feng Zhou, Ming Guo, Ganfeng Tu, etc. Effect of sulfur on hot ductility of Ni-Cr-W-Al Superauoy[J]. Hot Working Technology 2013, Vol. 42, No. 6.
