Morphology of Iron-Zinc Coating for Hot Press Forming Steel

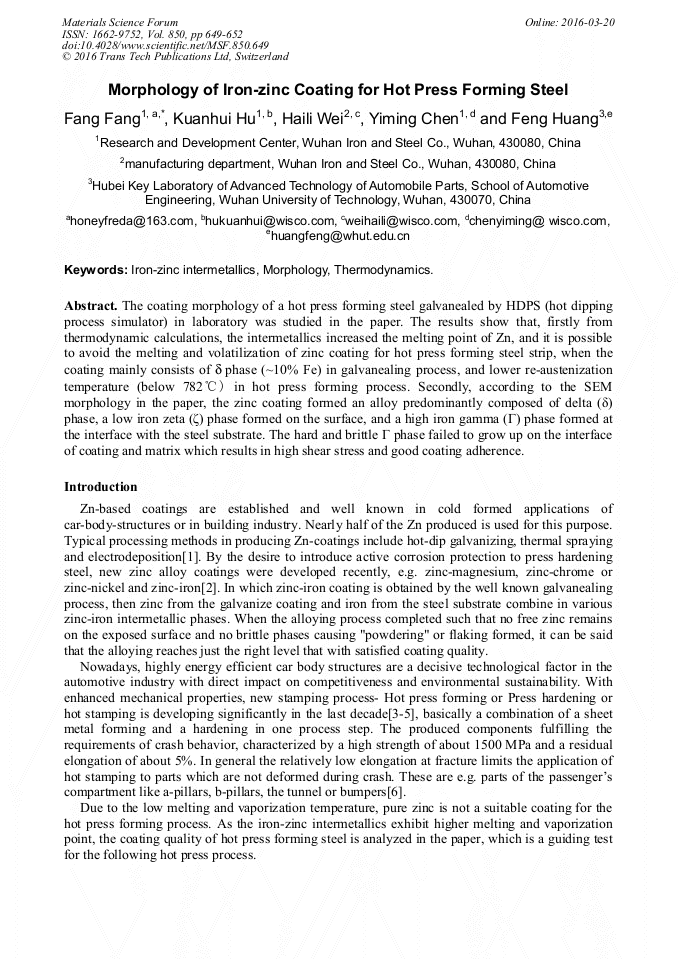

Abstract:

The coating morphology of a hot press forming steel galvanealed by HDPS (hot dipping process simulator) in laboratory was studied in the paper. The results show that, firstly from thermodynamic calculations, the intermetallics increased the melting point of Zn, and it is possible to avoid the melting and volatilization of zinc coating for hot press forming steel strip, when the coating mainly consists of δ phase (~10% Fe) in galvanealing process, and lower re-austenization temperature (below 782°C) in hot press forming process. Secondly, according to the SEM morphology in the paper, the zinc coating formed an alloy predominantly composed of delta (δ) phase, a low iron zeta (ζ) phase formed on the surface, and a high iron gamma (Γ) phase formed at the interface with the steel substrate. The hard and brittle Γ phase failed to grow up on the interface of coating and matrix which results in high shear stress and good coating adherence.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 649-652
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.649
• Online since: March 2016
• Authors: Fang Fang, Kuan Hui Hu, Hai Li Wei, Yi Ming Chen, Feng Huang
• Keywords: Iron-Zinc Intermetallics, Morphology, Thermodynamics

References

[1] Marder, A. R.: The metallurgy of zinc-coated steel, Progress in Materials Science. 45 (2000), p.191–271.

DOI: 10.1016/s0079-6425(98)00006-1

[2] Faderl, J.: et al., Continuous galvanizing meets press-hardening, in Proc. of the 8th Int. Conf. on Zinc and Zinc Alloy Coated Steel Sheet, Genova, Italy (2011). GALVATECH (2011).

[3] Jens Kondratiuk; Patrick Kuhn; Maria Köyer; Manfred Meurer, Jens Horstmann, Franz-Josef Lenze. A new coating solution for hot press forming. GALVATECH. (2011).

[4] Karbasian H., Tekkaya A. E. A review on hot stamping [J]. Journal of Materials Processing Technology, 2010, 210: 2130-2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[5] Fan D. W., De Cooman B. C. State-of-the-Knowledge on Coating Systems for Hot Stamped Parts [J]. steel research int., 2012, 83 (5): 412-433.

DOI: 10.1002/srin.201100292

[6] Lenze, F. -J., Banik, J., Sikora, S., Gerber, T.: Further development of manganese boron steels for the lightweight design of body in white structures. In: Proceedings of the 50th IDDRG Conference, Graz 2010, 17-26.

[7] K. K. Wang, C. W. Hsu, L. Chang, et al, Role of Al in Zn bath on the formation of inhibition layer during hot-dip galvanizing for a 1. 2Si-1. 5Mn transformation-induced plasticity steel, Appl. Surf. Sci., (2013).

DOI: 10.1016/j.apsusc.2013.08.077

[8] M. Rodriguez, M. de la Garza, L. Leduc, et al, Physical modeling of the influence of the environment and the nature of corrosion inhibitors on the degradation of galvanized steel strip, GALVATECH 2013, 684.

[9] I. Suzuki: Corrosion-Resistant Coating Technology, Corrosion Technology Series, P.A. Schweitzer (Ed), Marcel Dekker, New York, (1989).

[10] S.H. Deits and D.K. Matlock, Zinc-Based Steel Coating Systems: Metallurgy and Performance, TMS, Warrendale, PA, 1990, 297.

[11] T. Kanamura, J. Morita, M. Nakayama, K. Arai, and Y. Ogawa, Properties of Iron-Zinc Alloy-Electroplated Galvannealed Steel Sheet, Nippon Steel Tech. Rep., 1994, 63, 23–26.
