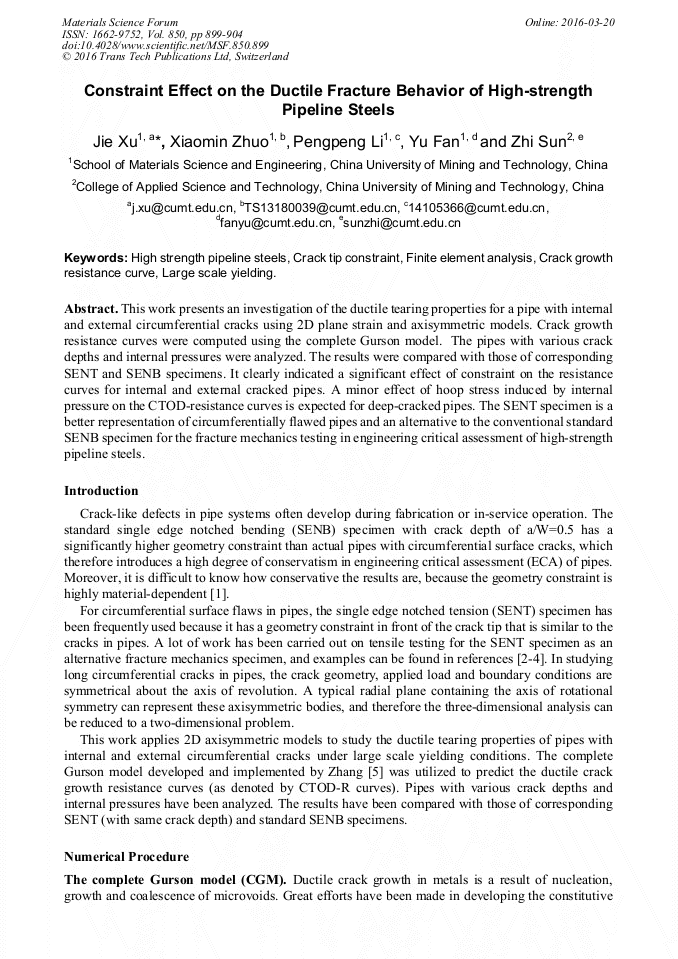

Constraint Effect on the Ductile Fracture Behavior of High-Strength Pipeline Steels

Abstract:

This work presents an investigation of the ductile tearing properties for a pipe with internal and external circumferential cracks using 2D plane strain and axisymmetric models. Crack growth resistance curves were computed using the complete Gurson model. The pipes with various crack depths and internal pressures were analyzed. The results were compared with those of corresponding SENT and SENB specimens. It clearly indicated a significant effect of constraint on the resistance curves for internal and external cracked pipes. A minor effect of hoop stress induced by internal pressure on the CTOD-resistance curves is expected for deep-cracked pipes. The SENT specimen is a better representation of circumferentially flawed pipes and an alternative to the conventional standard SENB specimen for the fracture mechanics testing in engineering critical assessment of high-strength pipeline steels.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 899-904
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.899
• Online since: March 2016
• Authors: Jie Xu*, Xiao Min Zhuo, Peng Peng Li, Yu Fan, Zhi Sun
• Keywords: Crack Growth Resistance Curve, Crack Tip Constraint, Finite Element Analysis, High Strength Pipeline Steels, Large Scale Yielding

References

[1] J. Xu, Z.L. Zhang, E. Østby, B. Nyhus and D.B. Sun, Constraint effect on the ductile crack growth resistance of circumferentially cracked pipes, Engng. Fract. Mech. 77(2010) 671-684.

DOI: 10.1016/j.engfracmech.2009.11.005

[2] B. Nyhus, E. Østby, H.O. Knagenhjelm, S. Black and P.A. Røstadsand, Experimental studies on the effect of crack length and asymmetric geometries on the ductile tearing resistance, In: proceedings of OMAE2005, the 24th international conference on offshore mechanics and arctic engineering, Halkidiki, Greece, (2005).

DOI: 10.1115/omae2005-67532

[3] W.R. Tyson, G. Shen, G. Roy, Effect of biaxial stress of ECA of pipelines under strain-based design, In: proceedings of ISOPE2007, the 17th international offshore and polar engineering conference, Lisbon, Portugal, (2007).

[4] S. Cravero, C. Ruggieri, Crack growth testing of pipelines steels using SENT fracture specimens, In: proceedings of ISOPE2007, the 17th international offshore and polar engineering conference, Lisbon, Portugal, (2007).

[5] Z.L. Zhang, C. Thaulow, J. Ødegård, A complete Gurson model approach for ductile fracture, Engng. Fract. Mech. 67(2000) 155-168.

DOI: 10.1016/s0013-7944(00)00055-2

[6] A.L. Gurson, Plastic flow and fracture behavior of ductile materials incorporating void nucleation, growth and coalescence, PhD dissertation, Brown University, (1975).

[7] V. Tvergaard, Influence of voids on shear band instabilities under plane strain conditions. Int. J. Fract. 17(1981) 389–407.

DOI: 10.1007/bf00036191

[8] V. Tvergaard, On localization in ductile materials containing spherical voids, Int. J. Fract. 18(1982) 237-252.

DOI: 10.1007/bf00015686

[9] V. Tvergaard, A. Needleman, Analysis of the cup-core fracture in a round tensile bar, Acta. Metall. 32(1984) 157-169.

DOI: 10.1016/0001-6160(84)90213-x

[10] P.F. Thomason, Ductile fracture of metals, Oxford, Pergamon Press, (1990).

[11] V. Tvergaard, A. Needleman, Analysis of the cup-core fracture in a round tensile bar, Acta. Metall. 32(1984) 157-169.

DOI: 10.1016/0001-6160(84)90213-x

[12] Z.L. Zhang, E. Niemi, A new failure criterion for the Gurson-Tvergaard dilatational constitutive model, Int. J. Fract. 70(1995) 321-334.

DOI: 10.1007/bf00032450

[13] E. Østby, A.O. Hellesvik, Fracture control–offshore pipelines JIP, results from large scale testing of the effect of biaxial loading on the strain capacity of pipes with defects, In: proceedings of ISOPE2007, the 17th international offshore and polar engineering conference, Lisbon, Portugal, (2007).

[14] W.R. Tyson, G. Shen, G. Roy, Effect of biaxial stress of ECA of pipelines under strain-based design, In: proceedings of ISOPE2007, the 17th international offshore and polar engineering conference, Lisbon, Portugal, (2007).
