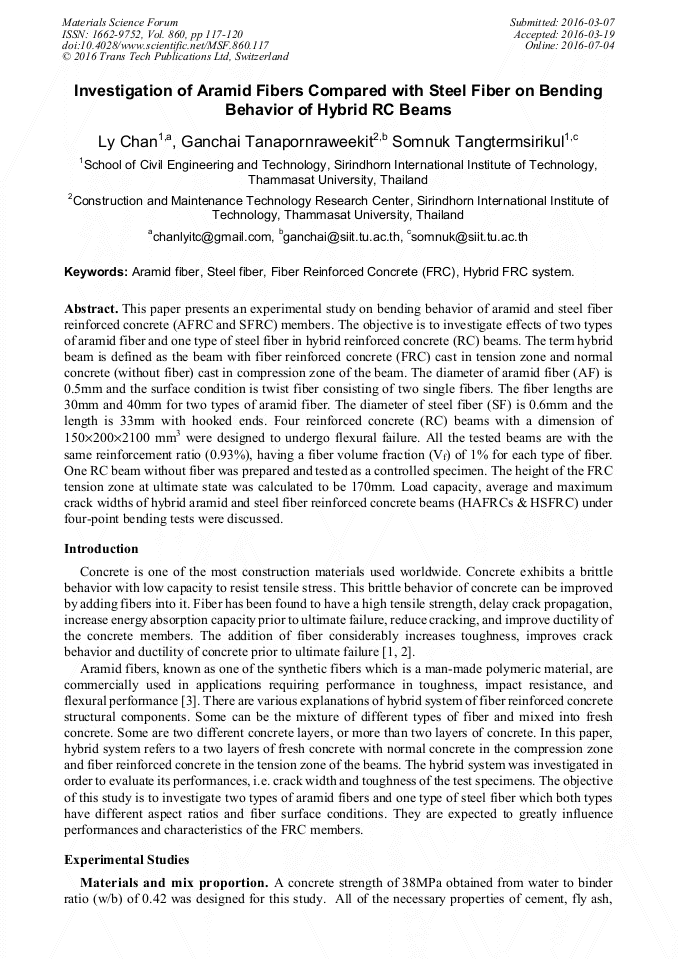

Investigation of Aramid Fibers Compared with Steel Fiber on Bending Behavior of Hybrid RC Beams

Abstract:

This paper presents an experimental study on bending behavior of aramid and steel fiber reinforced concrete (AFRC and SFRC) members. The objective is to investigate effects of two types of aramid fiber and one type of steel fiber in hybrid reinforced concrete (RC) beams. The term hybrid beam is defined as the beam with fiber reinforced concrete (FRC) cast in tension zone and normal concrete (without fiber) cast in compression zone of the beam. The diameter of aramid fiber (AF) is 0.5mm and the surface condition is twist fiber consisting of two single fibers. The fiber lengths are 30mm and 40mm for two types of aramid fiber. The diameter of steel fiber (SF) is 0.6mm and the length is 33mm with hooked ends. Four reinforced concrete (RC) beams with a dimension of 150×200×2100 mm³ were designed to undergo flexural failure. All the tested beams are with the same reinforcement ratio (0.93%), having a fiber volume fraction (V_f) of 1% for each type of fiber. One RC beam without fiber was prepared and tested as a controlled specimen. The height of the FRC tension zone at ultimate state was calculated to be 170mm. Load capacity, average and maximum crack widths of hybrid aramid and steel fiber reinforced concrete beams (HAFRCs & HSFRC) under four-point bending tests were discussed.

• Periodical: Materials Science Forum (Volume 860)
• Pages: 117-120
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.860.117
• Online since: July 2016
• Authors: Ly Chan*, Ganchai Tanapornraweekit, Somnuk Tangtermsirikul
• Keywords: Aramid Fiber, Fiber Reinforced Concrete (FRC), Hybrid FRC System, Steel Fiber

References

[1] F. Altun, T. Haktanir, K. Ari, Effects of steel fiber addition on mechanical properties of concrete and RC beams, Construction and Building Materials. 21 (2007) 654-661.

DOI: 10.1016/j.conbuildmat.2005.12.006

[2] J. Zhang and H. Stang. Application of stress crack width relationship in predicting the flexural behaviour of fiber reinforced concrete, Cement and Concrete Research 28(1998) 439-452.

DOI: 10.1016/s0008-8846(97)00275-5

[3] J. I. Daniel, State of the Art Report on Fiber Reinforced Concrete, ACI structural journal, American Concrete Institute, Farmington Hills, Michigan, (2002).

[4] RILEMTC162-TDF. Test and design methods for steel fiber reinforced concrete: σ-ε design method. Mater Struct (2000) 75–81.

[5] RILEM TC162-TDF. Test and design methods for steel fiber reinforced concrete: bending test. Mater Struct (2000) 3–5.

DOI: 10.1617/13884

[6] ASTM, C. 1018, Standard test method for flexural toughness and first crack strength of fibre reinforced concrete (Using beam with third-point loading), American Society of Testing and Materials, Philadelphia, Annual Book of Standard, 4. 02(1994).

DOI: 10.1520/c1018
