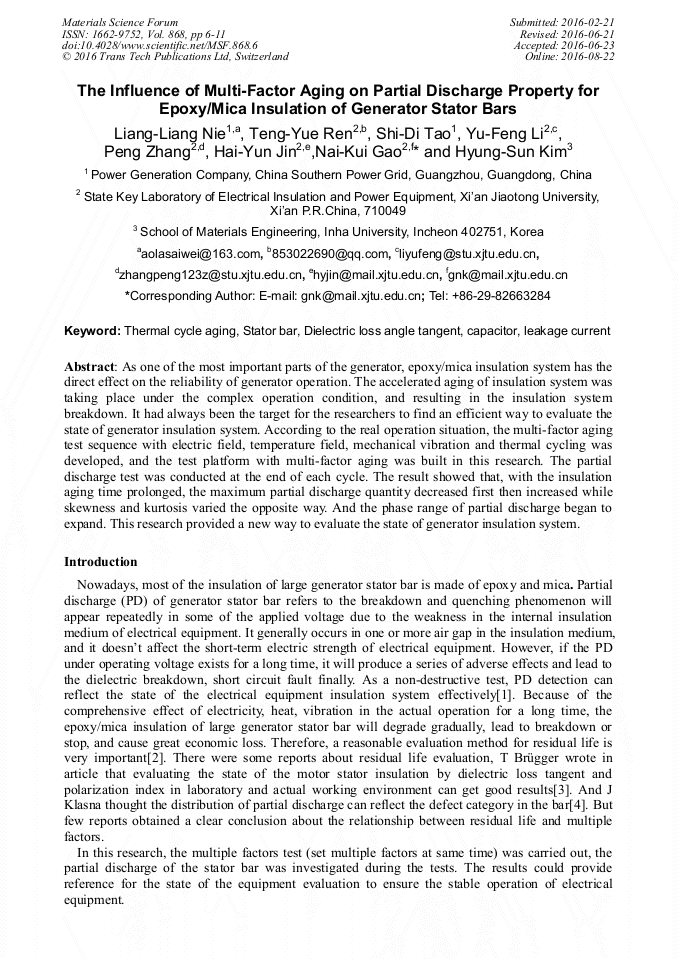

The Influence of Multi-Factor Aging on Partial Discharge Property for Epoxy/Mica Insulation of Generator Stator Bars

Abstract:

As one of the most important parts of the generator, Epoxy/mica insulation system has the direct effect on the reliability of generator operation. The accelerated aging of insulation system was taking place under the complex operation condition, and resulting in the insulation system breakdown. It had always been the target for the researchers to find an efficient way to evaluate the state of generator insulation system. According to the real operation situation, the multi-factor aging test sequence with electric field, temperature field, mechanical vibration and thermal cycling was developed, and the test platform with multi-factor aging was built in this research. The partial discharge test was conducted at the end of each cycle. The result showed that, with the insulation aging time prolonged, the maximum partial discharge quantity decreased first then increased while skewness and kurtosis varied the opposite way. And the phase range of partial discharge began to expand. This research provided a new way to evaluate the state of generator insulation system.

• Periodical: Materials Science Forum (Volume 868)
• Pages: 6-11
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.868.6
• Online since: August 2016
• Authors: Liang Liang Nie, Teng Yue Ren, Shi Di Tao, Yu Feng Li, Peng Zhang, Hai Jin, Nai Kui Gao*, Hyung Sun Kim
• Keywords: Capacitor, Dielectric Loss Angle Tangent, Leakage Current, Stator Bar, Thermal Cycle Aging

References

[1] C. V. Maughan, Partial Discharge-A Valuable Stator Winding Evaluation Tool, Conference record of the 2006 IEEE International Symposium on electrical insulation, Toronto, CANADA, JUN 11-14, 2006, 388-391.

DOI: 10.1109/elinsl.2006.1665339

[2] H. D. Cao, Analyzing on fault and defect of turbo generator, Large Electric Machine and Hydraulic Turbine, 5 (1998) 23-33.

[3] T. Brüegger, Evaluation of diagnostic measurements used on stator insulation of hydrogenerators, Conference Record of the 2010 IEEE International Symposium on Electrical Insulation, San Diego, CA, JUN 06-09, 2010, 4 pp.

DOI: 10.1109/elinsl.2010.5549793

[4] J. Klasna, P. Martínek, R. Fanta R, et al. Partial discharges in high-voltage insulation of turbogenerators, Proceeding of the 2010 IEEE International Conference on Solid Dielectrics, Potsdam, GERMANY, JUL 04-09, 2010, 4 pp.

DOI: 10.1109/icsd.2010.5568133

[5] C. S. Kim, Y. Tani and T. Mizutani, Investigation of Aging Process with New PD Pulse Parameters. Proceedings of 2001 International Symposium on Electrical Insulating Materials ( ISEIM 2001) , Himeji, Japan, 19-22 Nov. 2001, 123-126.

DOI: 10.1109/iseim.2001.973581

[6] A. Pedersen, G. C. Crichton and I. W. McAllister, Partial discharge detection: theoretical and practical aspects, IEE Proc. - Sci. Meas. Technol., 142 (1995) 29-36.

DOI: 10.1049/ip-smt:19951566
