Similar and Dissimilar Ultrasonic Spot Welding of 5754 Aluminum Alloy for Automotive Applications

Abstract:

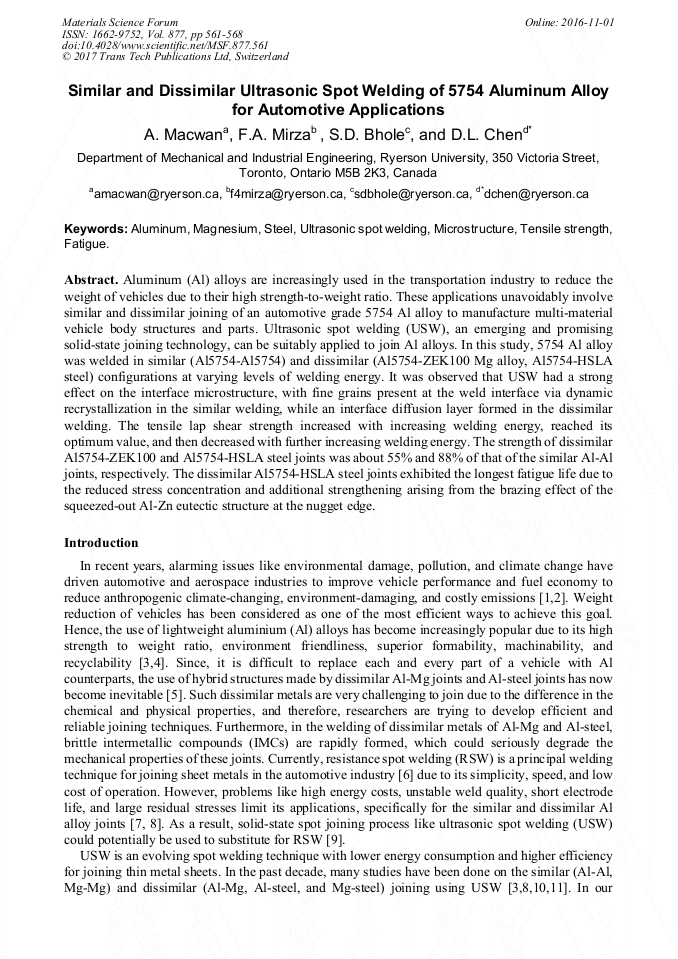

Aluminum (Al) alloys are increasingly used in the transportation industry to reduce the weight of vehicles due to their high strength-to-weight ratio. These applications unavoidably involve similar and dissimilar joining of an automotive grade 5754 Al alloy to manufacture multi-material vehicle body structures and parts. Ultrasonic spot welding (USW), an emerging and promising solid-state joining technology, can be suitably applied to join Al alloys. In this study, 5754 Al alloy was welded in similar (Al5754-Al5754) and dissimilar (Al5754-ZEK100 Mg alloy, Al5754-HSLA steel) configurations at varying levels of welding energy. It was observed that USW had a strong effect on the interface microstructure, with fine grains present at the weld interface via dynamic recrystallization in the similar welding, while an interface diffusion layer formed in the dissimilar welding. The tensile lap shear strength increased with increasing welding energy, reached its optimum value, and then decreased with further increasing welding energy. The strength of dissimilar Al5754-ZEK100 and Al5754-HSLA steel joints was about 55% and 88% of that of the similar Al-Al joints, respectively. The dissimilar Al5754-HSLA steel joints exhibited the longest fatigue life due to the reduced stress concentration and additional strengthening arising from the brazing effect of the squeezed-out Al-Zn eutectic structure at the nugget edge.

• Periodical: Materials Science Forum (Volume 877)
• Pages: 561-568
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.877.561
• Online since: November 2016
• Authors: A. Macwan, F.A. Mirza, S.D. Bhole, Dao Lun Chen*
• Keywords: Aluminium, Fatigue, Magnesium, Microstructure, Steel, Tensile Strength, Ultrasonic Spot Welding

References

[1] A.I. Cooper, Cooperative carbon capture, Nature 519 (2015) 294-5.

[2] M. Jakob, J. Hilaire, Unburnable fossil-fuel reserves, Nature 517 (2015) 150-2.

DOI: 10.1038/517150a

[3] V.K. Patel, S.D. Bhole, D.L. Chen, Ultrasonic spot welding of aluminum to high-strength low-alloy steel: microstructure, tensile and fatigue properties, Metall. Mater. Trans. A 45A (2014) 2055-66.

DOI: 10.1007/s11661-013-2123-y

[4] E. O. Hall, Variation of hardness of metals with grain size, Nature 173(4411) (1954) 948-9.

DOI: 10.1038/173948b0

[5] H. Das, S.S. Jana, T.K. Pal, A. De, Numerical and experimental investigation on friction stir lap welding of aluminum to steel, Sci. Technol. Weld. Join. 19(1) (2013) 69-75.

DOI: 10.1179/1362171813y.0000000166

[6] S. Niknejad, L. Liu, M. Lee, S. Esmaeili, NY. Zhou, Resistance spot welding of AZ series magnesium alloys: Effects of aluminum content on microstructure and mechanical properties, Mater. Sci. Eng. A 618 (2014) 323-34.

DOI: 10.1016/j.msea.2014.08.013

[7] A. Macwan, D.L. Chen, Microstructure and mechanical properties of ultrasonic spot welded copper-to-magnesium alloy joints, Mater. Des. 84 (2015) 261-9.

DOI: 10.1016/j.matdes.2015.06.104

[8] F. Haddadi, D. Strong, P.B. Pragnell, Effect of zinc coating on joint properties and interfacial reactions in Al to steel ultrasonic spot welding, JOM 64(3) (2012) 407-13.

DOI: 10.1007/s11837-012-0265-9

[9] J.E. Gould, Joining aluminum sheet in the automotive industry-A 30 year history, Welding J. 91 (2012) 23-34.

[10] F.A. Mirza, A. Macwan, S.D. Bhole, D.L. Chen, Microstructure and fatigue properties of ultrasonic spot welded joints of aluminum 5754 alloy, JOM (2016) 1-11.

DOI: 10.1007/s11837-015-1796-7

[11] D. Bakavos, P.B. Prangnell, Mechanisms of joint and microstructure formation in high power ultrasonic spot welding 6111 aluminum automotive sheet, Mater. Sci. Eng. A 527 (2010) 6320-34.

DOI: 10.1016/j.msea.2010.06.038

[12] A. Panteli, Y.C. Chen, D. Strong, X. Zhang, P.B. Prangnell, Optimization of aluminum-to-magnesium ultrasonic spot welding, JOM 64(3) (2012) 414-20.

DOI: 10.1007/s11837-012-0268-6

[13] I.E. Gunduz, T. Ando, E. Shattuck, P.Y. Wong, C.C. Doumanidis, Enhanced diffusion and phase transformation during ultrasonic welding of zinc and aluminium, Scr. Mater. 52 (2005) 939-43.

DOI: 10.1016/j.scriptamat.2004.12.015

[14] Z. Zhang, B.L. Xiao, Z.Y. Ma, Enhancing mechanical properties of friction stir welded 2219Al-T6 joints at high welding speed through water cooling and post-welding artificial ageing, Mater. Charact. 255 (2015) 255-65.

DOI: 10.1016/j.matchar.2015.06.003

[15] H.E. Hu, L. Zhen, B.Y. Zhang, L. Yang, J.Z. Chen, Microstructure characterization of 7050 aluminum alloy during dynamic recrystallization and dynamic recovery, Mater. Charact. 59(9) (2008) 1185-9.

DOI: 10.1016/j.matchar.2007.09.010

[16] A. Macwan, D.L. Chen, Ultrasonic spot welding of a rare-earth containing ZEK100 magnesium alloy: effect of welding energy, Metall. Mater. Trans. A, (2016) 1-12.

DOI: 10.1007/s11661-016-3355-4

[17] J.L. Murray, The Al-Mg (Aluminum-Magnesium) system, Bull. Alloy Phase Diagrams 3(1) (1982) 60-74.

[18] J.L. Murray, The Al-Zn (Aluminum-Zinc) system, Bull. Alloy Phase Diagrams 4(1) (1983) 55-73.

DOI: 10.1007/bf02880321

[19] T.B. Massalski, ASM Binary Alloy Phase Diagrams, 2nd ed., ASM International, Materials Park, OH, 2001, 147-49.

[20] Y.C. Chen, K. Nakata, Effect of the surface state of steel on the microstructure and mechanical properties of dissimilar metal lap joints of aluminum and steel by friction stir welding, Metall. Mater. Trans. A 39 (2008) 1985-92.

DOI: 10.1007/s11661-008-9523-4

[21] S. Chen, J. Huang, K. Ma, H. Zhang, X. Zhao, Influence of a Ni-foil interlayer on Fe/Al dissimilar joint by laser penetration welding, Mater. Lett. 79 (2012) 296-9.

DOI: 10.1016/j.matlet.2012.03.073

[22] C. Ma, D.L. Chen, S.D. Bhole, G. Boudreau, A. Lee, E. Biro, Microstructure and fracture characteristics of spot-welded DP600 steel, Mater. Sci. Eng. A 485 (2008) 334-6.

DOI: 10.1016/j.msea.2007.08.010
