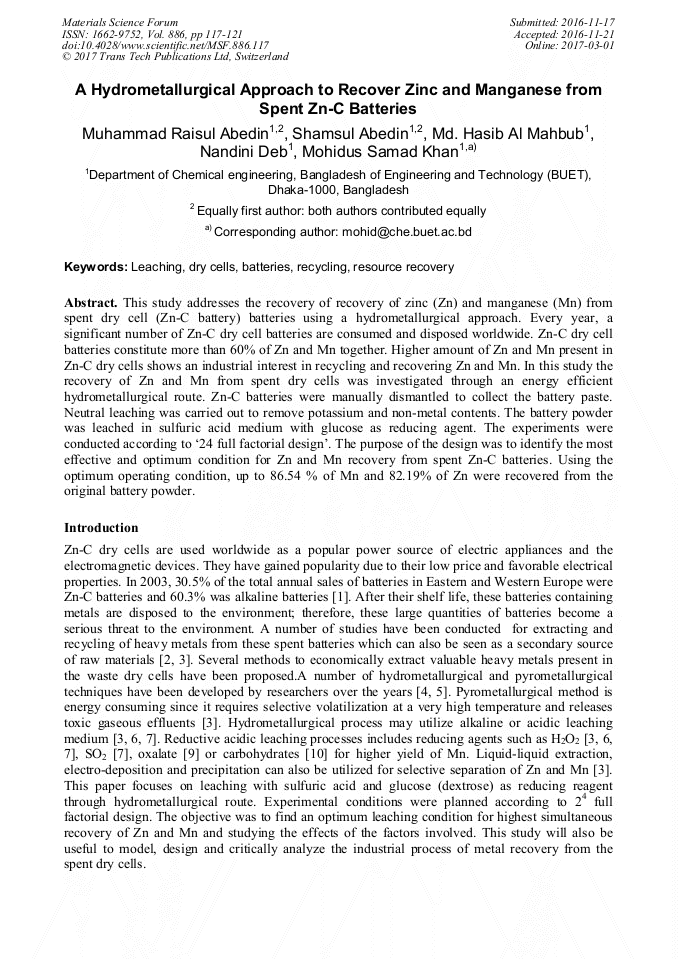

A Hydrometallurgical Approach to Recover Zinc and Manganese from Spent Zn-C Batteries

Abstract:

This study addresses the recovery of recovery of zinc (Zn) and manganese (Mn) from spent dry cell (Zn-C battery) batteries using a hydrometallurgical approach. Every year, a significant number of Zn-C dry cell batteries are consumed and disposed worldwide. Zn-C dry cell batteries constitute more than 60% of Zn and Mn together. Higher amount of Zn and Mn present in Zn-C dry cells shows an industrial interest in recycling and recovering Zn and Mn. In this study the recovery of Zn and Mn from spent dry cells was investigated through an energy efficient hydrometallurgical route. Zn-C batteries were manually dismantled to collect the battery paste. Neutral leaching was carried out to remove potassium and non-metal contents. The battery powder was leached in sulfuric acid medium with glucose as reducing agent. The experiments were conducted according to ‘24 full factorial design’. The purpose of the design was to identify the most effective and optimum condition for Zn and Mn recovery from spent Zn-C batteries. Using the optimum operating condition, up to 86.54 % of Mn and 82.19% of Zn were recovered from the original battery powder.

• Periodical: Materials Science Forum (Volume 886)
• Pages: 117-121
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.886.117
• Online since: March 2017
• Authors: Muhammad Raisul Abedin, Shamsul Abedin, Md. Hasib Al Mahbub, Nandini Deb, Mohidus Samad Khan*
• Keywords: Batteries, Dry Cells, Leaching, Recycling, Resource Recovery

References

[1] Toro, L., et al., Recovery of zinc and manganese from spent batteries by different leaching systems. CHEMICAL ENGINEERING, 2007. 11: pp.173-178.

[2] Veloso, L.R.S., et al., Development of a hydrometallurgical route for the recovery of zinc and manganese from spent alkaline batteries. Journal of Power Sources, 2005. 152(0): pp.295-302.

DOI: 10.1016/j.jpowsour.2005.03.133

[3] Sayilgan, E., et al., A review of technologies for the recovery of metals from spent alkaline and zinc–carbon batteries. Hydrometallurgy, 2009. 97(3–4): pp.158-166.

DOI: 10.1016/j.hydromet.2009.02.008

[4] Espinosa, D.C.R., A.M. Bernardes, and J.A.S. Tenório, An overview on the current processes for the recycling of batteries. Journal of Power Sources, 2004. 135(1–2): pp.311-319.

DOI: 10.1016/j.jpowsour.2004.03.083

[5] Bernardes, A.M., D.C.R. Espinosa, and J.A.S. Tenório, Recycling of batteries: a review of current processes and technologies. Journal of Power Sources, 2004. 130(1–2): pp.291-298.

DOI: 10.1016/j.jpowsour.2003.12.026

[6] Kim, T. -H., et al., Preparation of Mn−Zn ferrite from spent zinc-carbon batteries by alkali leaching, acid leaching and Co-precipitation. Metals and Materials International, 2008. 14(5): pp.655-658.

DOI: 10.3365/met.mat.2008.10.655

[7] Avraamides, J., G. Senanayake, and R. Clegg, Sulfur dioxide leaching of spent zinc–carbon-battery scrap. Journal of Power Sources, 2006. 159(2): pp.1488-1493.

DOI: 10.1016/j.jpowsour.2005.11.081

[8] Sayilgan, E., et al., Reductive leaching of manganese and zinc from spent alkaline and zinc–carbon batteries in acidic media. Hydrometallurgy, 2009. 97(1–2): pp.73-79.

DOI: 10.1016/j.hydromet.2009.01.004

[9] De Michelis, I., et al., Recovery of zinc and manganese from alkaline and zinc-carbon spent batteries. Journal of Power Sources, 2007. 172(2): pp.975-983.

DOI: 10.1016/j.jpowsour.2007.04.092

[10] G. Furlani , E.M., F. Pagnanelli,F. Ferella, F. Vegliò, F.L. Toro, Recovery of manganese from zinc alkaline batteries by reductive acid leaching using carbohydrates as reductant. Hydrometallurgy 2009(99): pp.115-118.

DOI: 10.1016/j.hydromet.2009.07.005

[11] Ferella, F., et al., Extraction of Zinc and Manganese from Alkaline and Zinc-Carbon Spent Batteries by Citric-Sulphuric Acid Solution. International Journal of Chemical Engineering, 2010. (2010).

DOI: 10.1155/2010/659434
