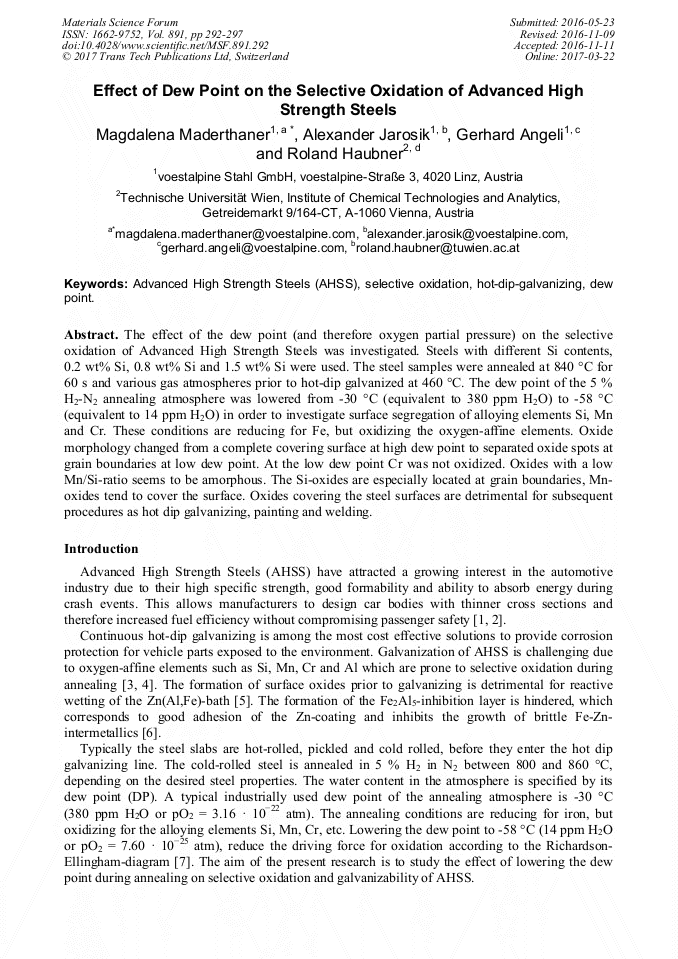

Effect of Dew Point on the Selective Oxidation of Advanced High Strength Steels

Abstract:

The effect of the dew point (and therefore oxygen partial pressure) on the selective oxidation of Advanced High Strength Steels was investigated. Steels with different Si contents, 0.2 wt% Si, 0.8 wt% Si and 1.5 wt% Si were used. The steel samples were annealed at 840 °C for 60 s and various gas atmospheres prior to hot-dip galvanized at 460 °C. The dew point of the 5 % H₂-N₂ annealing atmosphere was lowered from-30 °C (equivalent to 380 ppm H₂O) to-58 °C (equivalent to 14 ppm H₂O) in order to investigate surface segregation of alloying elements Si, Mn and Cr. These conditions are reducing for Fe, but oxidizing the oxygen-affine elements. Oxide morphology changed from a complete covering surface at high dew point to separated oxide spots at grain boundaries at low dew point. At the low dew point Cr was not oxidized. Oxides with a low Mn/Si-ratio seems to be amorphous. The Si-oxides are especially located at grain boundaries, Mn-oxides tend to cover the surface. Oxides covering the steel surfaces are detrimental for subsequent procedures as hot dip galvanizing, painting and welding.

• Periodical: Materials Science Forum (Volume 891)
• Pages: 292-297
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.891.292
• Online since: March 2017
• Authors: Magdalena Maderthaner*, Alexander Jarosik, Gerhard Angeli, Roland Haubner
• Keywords: Advanced High Strength Steels (AHSS), Dew Point, Hot-Dip-Galvanizing, Selective Oxidation

References

[1] A. Pichler, S. Traint, T. Hebesberger, P. Stiaszny, E.A. Werner, Processing of thin sheet multiphase steel grades, Steel Research International 78. 3 (2007) 216.

DOI: 10.1002/srin.200705883

[2] E.M. Bellhouse, J.R. McDermid, Effect of Continuous Galvanizing Heat Treatments on the Microstructure and Mechanical Properties of High Al-Low Si Transformation Induced Plasticity Steels, Metallurgical and Materials Transactions A 41. 6 (2010).

DOI: 10.1007/s11661-010-0185-7

[3] V.G. Praig, R. Haubner, M. Stöger-Pollach, Microstructure and Composition of Grain Boundary- and Intragranular Oxides in Low Alloy Mn-Cr, Mn-Al-Si and Si-Al-P Hot-rolled Steel Sheets, Praktische Metallographie - Practical Metallography 51 (2014).

DOI: 10.3139/147.110175

[4] M. Auinger, V.G. Praig, B. Linder, H. Danninger, Grain boundary oxidation in iron-based alloys, investigated by 18O enriched water vapour - The effect of mixed oxides in binary and ternary Fe-{Al. Cr, Mn, Si} systems, Corrosion Science 96 (2015).

DOI: 10.1016/j.corsci.2015.04.009

[5] M. Arndt, J. Duchoslav, R. Steinberger, G. Hesser, C. Commenda, L. Samek, E. Arenholz, D. Stifter, Nanoscale analysis of the influence of pre-oxidation on oxide formation and wetting behavior of hot-dip galvanized high strength steel, Corrosion Science 93 (2015).

DOI: 10.1016/j.corsci.2015.01.016

[6] A.R. Marder, The metallurgy of zinc-coated steel, Progress in materials science 45. 3 (2000) 191-271.

DOI: 10.1016/s0079-6425(98)00006-1

[7] H. J.T. Ellingham, Reducibility of oxides and sulfides in metallurgical processes, J Soc Chem Ind 63 (1944) 125-133.

[8] R. Sagl, A. Jarosik, D. Stifter, G. Angeli, The role of surface oxides on annealed high-strength steels in hot-dip galvanizing, Corrosion Science 70 (2013) 268-275.

DOI: 10.1016/j.corsci.2013.01.039
