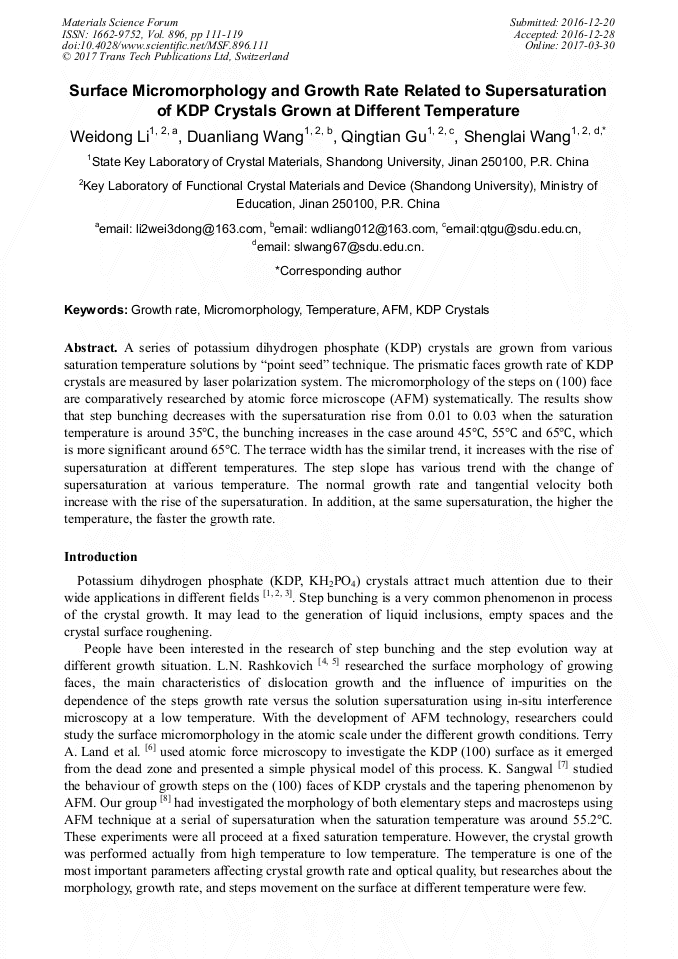

Surface Micromorphology and Growth Rate Related to Supersaturation of KDP Crystals Grown at Different Temperature

Abstract:

A series of potassium dihydrogen phosphate (KDP) crystals are grown from various saturation temperature solutions by “point seed” technique. The prismatic faces growth rate of KDP crystals are measured by laser polarization system. The micromorphology of the steps on (100) face are comparatively researched by atomic force microscope (AFM) systematically. The results show that step bunching decreases with the supersaturation rise from 0.01 to 0.03 when the saturation temperature is around 35°C, the bunching increases in the case around 45°C, 55°C and 65°C, which is more significant around 65°C. The terrace width has the similar trend, it increases with the rise of supersaturation at different temperatures. The step slope has various trend with the change of supersaturation at various temperature. The normal growth rate and tangential velocity both increase with the rise of the supersaturation. In addition, at the same supersaturation, the higher the temperature, the faster the growth rate.

• Periodical: Materials Science Forum (Volume 896)
• Pages: 111-119
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.896.111
• Online since: March 2017
• Authors: Wei Dong Li, Duan Liang Wang, Qing Tian Gu, Sheng Lai Wang*
• Keywords: AFM, Growth Rate, KDP Crystals, Micromorphology, Temperature

References

[1] G B. Su, J B. Zeng, Y P. He, et al. Application of lagre section KDP crystals in the study of laser fusion. Journal of the Chinese Ceramic Society, 25 (1997) 717-719.

[2] N. Zaitseva, J. Atherton, R. Rozsa, et al. Design and benefits of continuous filtration in rapid growth of large KDP and DKDP crystals. Journal of Crystal Growth, 197 (1999) 911-920.

DOI: 10.1016/s0022-0248(98)01095-1

[3] J J. De Yoreo, A K. Burnham, P K. Whitman. Developing KH2PO4 and KD2PO4 crystal for world's most powerful laser. International Materials Reviews, 47 (2002) 113-152.

[4] L N. Rashkovich, N V. Kronsky. Influence of Fe3+ and Al3+ ions on the kinetics of steps on the {100} faces of KDP. Journal of Crystal Growth, 182 (1997) 434-441.

DOI: 10.1016/s0022-0248(97)00360-6

[5] L N. Rashkovich, KDP family of crystals, hilger-Bristol, (1991).

[6] T A. Land, T L. Martin, P. Sergey, etal. Recovery of surfaces from impurity poisoning during crystal growth. Nature, 399 (1999) 442 - 445.

DOI: 10.1038/20886

[7] K. Sangwal, J. Torrent-Burgues, P. Gorostiza, F. Sanz. AFM study of the behaviour of growth steps on the (100) faces of KDP crystals and the tapering phenomenon. Cryst. Res. Technol. 34 (1999) 667-675.

DOI: 10.1002/(sici)1521-4079(199906)34:5/6<667::aid-crat667>3.0.co;2-l

[8] J X. Ding, S L. Wang, X M. Mu, et al. AFM Investigation on Step Bunching on (100) Face of KDP Crystal [J]. Journal of Inorganic Materials, 25(2010) 1191-1194.

DOI: 10.3724/sp.j.1077.2010.01191

[9] S J. Zhu, S L. Wang, J X. Ding, et al. Improvement of growth rate and optical performances of rapidly grown KDP crystal by adding cyclohexane diamine tetraacetic acid in growth solution. Journal of Crystal Growth, 388 (2014) 98-102.

DOI: 10.1016/j.jcrysgro.2013.11.058

[10] W K. Burton, N. Cabrera, F C. Frank. The growth of crystals and the equilibrium structure of their surfaces. Royal Soc. London Philos Trans, 243 (1951) 299-358.

[11] B. Liu, S L. Wang, C S. Fang, et al. In Situ Measurement of the Prismatic Faces Growth Rate of KDP Crystal. Journal of Inorganic Materials, 21(2006) 22-28.

[12] T N. Thomas, T A. Land, T. Martin, W H. Casey, J J. De Yoreo. AFM investigation of step kinetics and hillock morphology of the {100} face of KDP. Journal of Crystal Growth, 260 (2004) 566-579.

DOI: 10.1016/j.jcrysgro.2003.08.054

[13] L.N. Rashkovich, KDP family of crystals, hilger-Bristol, (1991).

[14] F.C. Frank. Crystal Growth, Butterworths, (1959).

[15] K. Sangwal, Prog. Cryst. Growth Charact, 36 (1998) 163.

[16] K. Sangwal, J. Crystal Growth, 192 (1998) 200.

[17] H.V. Alexandru, S. Antohe, J. Crystal Growth, 258 (2003) 149.

[18] A.V. Belustin, A.V. Kolona, Kristallografyia, 20 (1975) 206.
