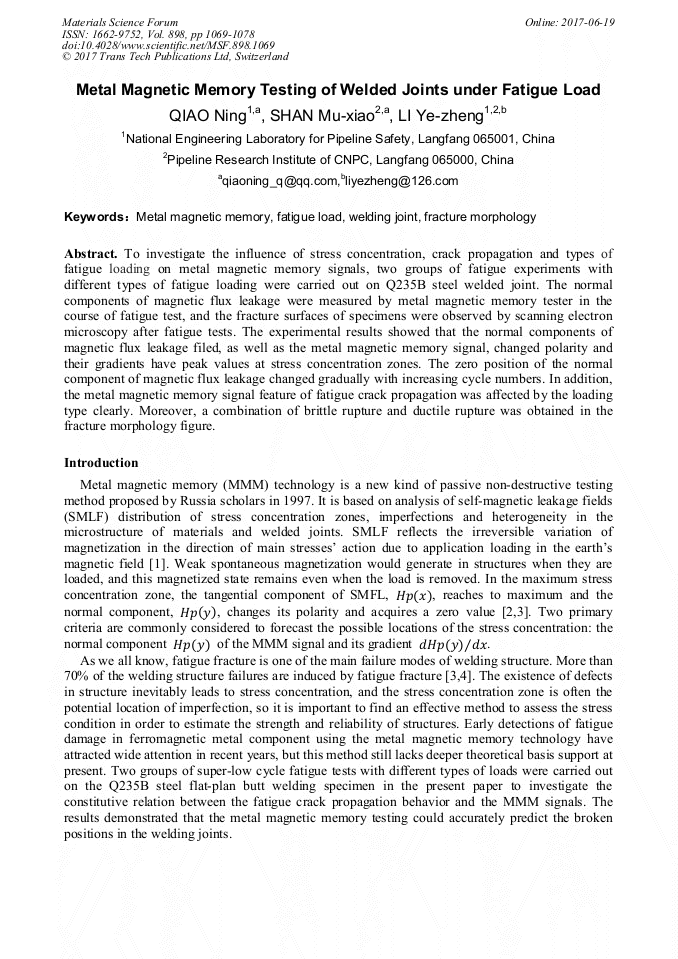

Metal Magnetic Memory Testing of Welded Joints under Fatigue Load

Abstract:

To investigate the influence of stress concentration, crack propagation and types of fatigue loading on metal magnetic memory signals, two groups of fatigue experiments with different types of fatigue loading were carried out on Q235B steel welded joint. The normal components of magnetic flux leakage were measured by metal magnetic memory tester in the course of fatigue test, and the fracture surfaces of specimens were observed by scanning electron microscopy after fatigue tests. The experimental results showed that the normal components of magnetic flux leakage filed, as well as the metal magnetic memory signal, changed polarity and their gradients have peak values at stress concentration zones. The zero position of the normal component of magnetic flux leakage changed gradually with increasing cycle numbers. In addition, the metal magnetic memory signal feature of fatigue crack propagation was affected by the loading type clearly. Moreover, a combination of brittle rupture and ductile rupture was obtained in the fracture morphology figure.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1069-1078
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1069
• Online since: June 2017
• Authors: Ning Qiao, Mu Xiao Shan, Ye Zheng Li
• Keywords: Fatigue Load, Fracture Morphology, Metal Magnetic Memory, Welding Joint

References

[1] A.A. Dubov. Method of metal magnetic memory and inspection instruments. Training handbook. Document No: V-1347-06.

[2] Z.D. Wang, K. Yao, B. Deng, K.Q. Ding. Theoretical studies of metal magnetic memory technique on magnetic flux leakage signals. NDT&E International. 43 (2010) 354–359.

DOI: 10.1016/j.ndteint.2009.12.006

[3] C.L. Shi, S.Y. Dong, B.S. Xu, P. He. Metal magnetic memory effect caused by static tension load in a case hardened steel. Journal of Magnetism and Magnetic Materials. 322 (2010) 413–416.

DOI: 10.1016/j.jmmm.2009.09.066

[4] Serope Kalpakjian, Steven R. Schmid. Manufacturing Processes for Engineering Materials. Pearson Education. (2008) 98-103.

[5] Maciej Roskosz. Metal magnetic memory testing of welded joints of ferritic and austenitic steels. NDT&E International. 44 (2011) 305-310.

DOI: 10.1016/j.ndteint.2011.01.008

[6] Kocańda Stanisław. Fatigue Failure of Metals. Alphen aan den Rijn Sijthoff & Noordhoff International Publishers. (1978).

DOI: 10.1002/zamm.19790591219

[7] S.J. Fang, J. H. Hemann, J. D. Achenbach. Experimental and Analytical Investigation of Dynamic Stress concentrations at a Circular Hole. J. Appl. Mech. 41 (1974) 417-422.

DOI: 10.1115/1.3423303

[8] J. W. Dally, W. F. Halbleib. Dynamic Stress concentrations at Circular Holes in Struts. Journal of Mechanical Engineering Science March. 7-1 (1965) 23-27.

DOI: 10.1243/jmes_jour_1965_007_006_02

[9] Richard Shea. Dynamic Stress concentration factors. Experimental Mechanics. 4-1 20-24.

[10] Pao Y H, Mow C-C. Diffraction of Elastic Waves and Dynamic Stress Concentrations [M]. New York: Russak, Crane, (1973).

[11] Xue Hui, Song JinIiang, Jia Youquan. The influence of load waveform on dynamic stress concentration factors under Impact Load. Journal of Machine Design. 11 (l995) 23-26.

[12] Xue Hui, Song JinIiang, Jia Youquan. Dynamic stress concentration factors due to incidence of triangle and step waves. Journal of mechanical strength. 120-2 (1998) 87-90.

[13] H. Ilker Yelbay, Ibrahim Cam, C. Hakan G ¨ur. Non-destructive determination of residual stress state in steel weldments by Magnetic Barkhausen Noise technique. NDT&E International. 43 (2010) 29–33.

DOI: 10.1016/j.ndteint.2009.08.003

[14] Ren jilin, et al. The method of metal magnetic memory[M]. Beijing: China Electric Power Press, (2000).

[15] A.A. Dubov. A study of metal properties using the method of magnetic memory. Metal Science and Heat Treatment. 39 (1997) 9-10.

[16] XU Zhangsui, XU Ying, WANG Jianbin, et al. The principle and application of crack leakagemagnetic quantitative test[M]. Beijing: National Defense Industry Press, (2005).

[17] Shi Changliang, Dong Shiyun, Xu Binshi, He Peng. Stress concentration degree affects spontaneous magnetic signals of ferromagnetic steel under dynamic tension load. NDT&E International. 43 (2010) 8–12.

DOI: 10.1016/j.ndteint.2009.08.002

[18] Marcia Maru, Linilson Padovese. Evaluating Plastic Deformation by the Magnetic Barkhausen Noise. ECNDT. 2006 - Tu. 1. 6. 4.

[19] M. Blaow, J.T. Evans, B.A. Shaw. Magnetic Barkhausen noise: the influence of microstructure and deformation in bending. Acta Materialia. 53 (2005) 279-287.

DOI: 10.1016/j.actamat.2004.09.021

[20] Jiles D. Introduction to magnetism and magnetic materials. London; New York: Chapman and Hall. (1991).
