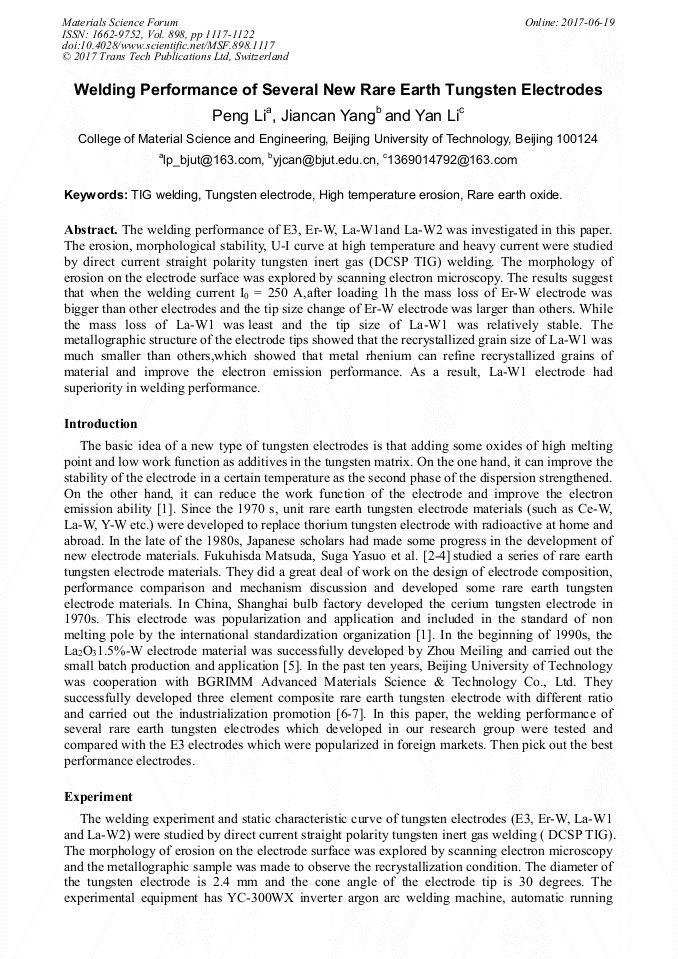

Welding Performance of Several New Rare Earth Tungsten Electrodes

Abstract:

The welding performance of E3, Er-W, La-W1and La-W2 was investigated in this paper. The erosion, morphological stability, U-I curve at high temperature and heavy current were studied by direct current straight polarity tungsten inert gas (DCSP TIG) welding. The morphology of erosion on the electrode surface was explored by scanning electron microscopy. The results suggest that when the welding current I₀ = 250 A,after loading 1h the mass loss of Er-W electrode was bigger than other electrodes and the tip size change of Er-W electrode was larger than others. While the mass loss of La-W1 was least and the tip size of La-W1 was relatively stable. The metallographic structure of the electrode tips showed that the recrystallized grain size of La-W1 was much smaller than others,which showed that metal rhenium can refine recrystallized grains of material and improve the electron emission performance. As a result, La-W1 electrode had superiority in welding performance.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1117-1122
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1117
• Online since: June 2017
• Authors: Peng Li*, Jian Can Yang, Yan Li
• Keywords: High Temperature Erosion, Rare Earth Oxide, TIG Welding, Tungsten Electrode

References

[1] X.Q. Yang, Z.Z. Luo, R.H. Guo, et al. Research progress of tungsten electrode materials[J]. Rare Metals and Cemented Carbides, 2005, 33(4): 52-54.

[2] Fukuhisa Mstsuda et. Temperature and Work Function Measurements with Different GTA Electrodes[J]. Trans. Japan Welding Sociaty, 2011, 22(1): 3-9.

[3] K.P. Cooper, H.N. Jones, R.A. Meger. Metallurgical Analysis of Railgun Material[R]. US-A: Naval Research Lab Washington D.C. Material Science and Technology DIV, 2010, 19(3): 7-9.

[4] P.P. Zhang, W.P. Shen, Y.N. Zhou, et al. Effect of Nano-TaC on Microstructure of Sintered Tungsten by SPS[J]. Rare metal materials and Engineering, 2012, 41(8): 1431-1434.

[5] M.Y. Zhao, J.L. Fan, et al. The present situation and development trend of tungsten processing industry in China[J]. China Tungsten Industry, 2010, 25(2): 26-29.

[6] Z. R Nie, M.L. Zhou, Y. Chen, et al. Tungsten electrodes containing three types of rare earth oxides[J]. Transactions of the Nonferrous Metals Society of China, 1999, 9(1): 36-39.

[7] Y. Peng, F.C. Hu, B.S. Li, et al. On the Multiplicity Rare Earth Tungstern Electrodes[J]. China Tungsten Industry, 2007, 22(1): 42-45.

[8] Z.R. Nie, M.L. Zhou, Y. Chen, et al. The characteristics of tungsten electrode with two combined additions of rare earth oxides[J]. Acta Metallurgica Sinica, 1999, 35(3): 334.

[9] W. G Zhu, J. C Yang, Y.C. Xi, et al. Welding Performance of Several TIG Tungsten Electrodes[J]. Chinese Journal of Rare Metals, 2014, 38(5): 793-799.

[10] H.M. Sun, D.Y. Liu, Y.T. Chen. Erosion of Cathode Material of DC Arc Air Plasma Torch[J]. Chinese Journal of Rare Metals, 2012, 36(2): 260-260.

[11] H.R. He, Q. Liu, Z.P. Wang, et al. The preparation and application of tungsten rhenium alloy[J]. Industrial Measurement, 2015 (5): 24-27.

[12] S.W. Tao, J.S. Wang, Y.M. Wang, et al. Advances in Scandate Cathodes with Tungsten Matrix[J]. Chinese Journal of Rare Metals, 2003, 27(2): 268-272.
