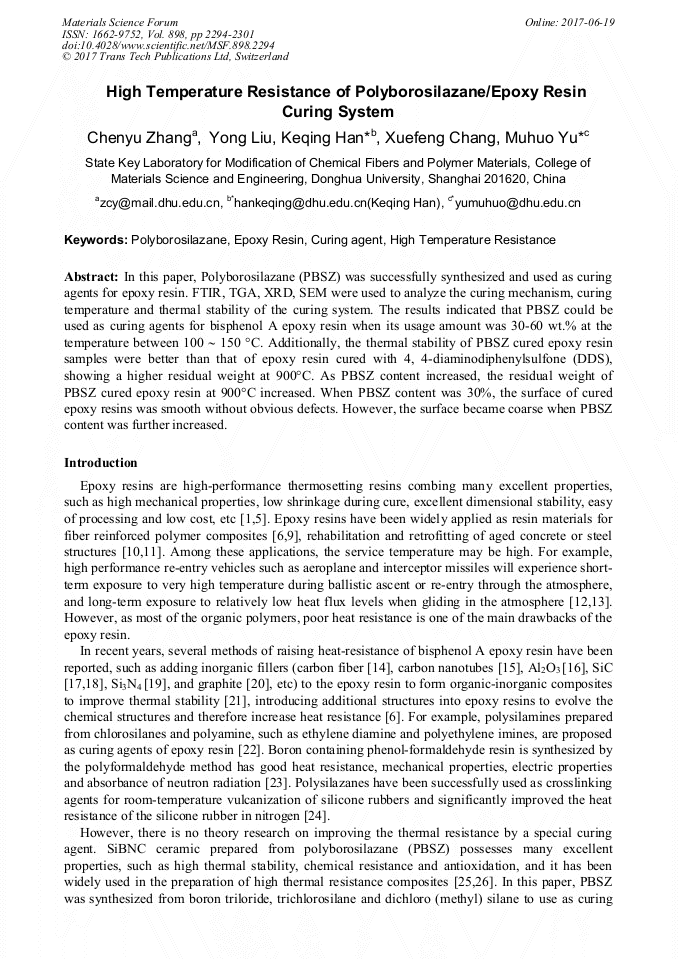

High Temperature Resistance of Polyborosilazane/Epoxy Resin Curing System

Abstract:

In this paper, Polyborosilazane (PBSZ) was successfully synthesized and used as curing agents for epoxy resin. FTIR, TGA, XRD, SEM were used to analyze the curing mechanism, curing temperature and thermal stability of the curing system. The results indicated that PBSZ could be used as curing agents for bisphenol A epoxy resin when its usage amount was 30-60 wt.% at the temperature between 100 ∼ 150 °C. Additionally, the thermal stability of PBSZ cured epoxy resin samples were better than that of epoxy resin cured with 4, 4-diaminodiphenylsulfone (DDS), showing a higher residual weight at 900°C. As PBSZ content increased, the residual weight of PBSZ cured epoxy resin at 900°C increased. When PBSZ content was 30%, the surface of cured epoxy resins was smooth without obvious defects. However, the surface became coarse when PBSZ content was further increased.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 2294-2301
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.2294
• Online since: June 2017
• Authors: Chen Yu Zhang, Yong Liu, Ke Qing Han*, Xue Feng Chang, Mu Huo Yu
• Keywords: Curing Agent, Epoxy Resin, High Temperature Resistance, Polyborosilazane

References

[1] Gu J W, Zhang Q Y, Li H C, et al. Study on Preparation of SiO2/Epoxy Resin Hybrid Materials by Means of Sol-Gel. Polymer-Plastics Technology and Engineering, 2007, 46(10-12): 1129-1134.

DOI: 10.1080/03602550701558033

[2] Gu J, Zhang Q, Dang J, et al. Preparation and mechanical properties researches of silane coupling reagent modified β-silicon carbide filled epoxy composites. Polymer Bulletin, 2009, 62(5): 689-697.

DOI: 10.1007/s00289-009-0045-z

[3] Gu J, Zhang Q, Dang J, et al. Thermal conductivity epoxy resin composites filled with boron nitride. Polymers for Advanced Technologies, 2012, 23(6): 1025-1028.

DOI: 10.1002/pat.2063

[4] Ying L L, Chiu Y C, Wu C S. Preparation of silicon-/phosphorous-containing epoxy resins from the fusion process to bring a synergistic effect on improving the resin' thermal stability and flame retardancy. Journal of Applied Polymer Science, 2003, 87(3): 404-411.

DOI: 10.1002/app.11383

[5] Enami H, Imai T. Epoxy resin compositions. Theoretical & Applied Climatology, 2015: 1-12.

[6] Yang Y, Xian G, Li H, et al. Thermal aging of an anhydride-cured epoxy resin. Polymer Degradation & Stability, 2015, 118: 111-119.

DOI: 10.1016/j.polymdegradstab.2015.04.017

[7] Anderson B J. Thermal stability of high temperature epoxy adhesives by thermogravimetric analysis and adhesive strength. Polymer Degradation & Stability, 2011, 96(10): 1874-1881.

DOI: 10.1016/j.polymdegradstab.2011.07.010

[8] Nardone F, Ludovico M D, Basalo F J D C Y, et al. Tensile behavior of epoxy based FRP composites under extreme service conditions. Composites Part B Engineering, 2012, 43(3): 1468–1474.

DOI: 10.1016/j.compositesb.2011.08.042

[9] Zarrelli M, Skordos A A, Partridge I K. Investigation of cure induced shrinkage in unreinforced epoxy resin. Plastics Rubber & Composites, 2015, volume 31(31): 377-384.

DOI: 10.1179/146580102225006350

[10] Böer P, Holliday L, Kang H K. Independent environmental effects on durability of fiber-reinforced polymer wraps in civil applications: A review. Construction & Building Materials, 2013, 48(11): 360-370.

DOI: 10.1016/j.conbuildmat.2013.06.077

[11] Kalavagunta S, Naganathan S, Mustapha K N B. Capacity assessment and design of CFRP-strengthened steel channel columns. Indian Journal of Science & Technology, 2013, 6(4): 4255-4261.

DOI: 10.17485/ijst/2013/v6i4.10

[12] Sun J T, Huang Y D, Cao H L, et al. Effects of ambient-temperature curing agents on the thermal stability of poly(methylphenylsiloxane). Polymer Degradation & Stability, 2004, 85(1): 725-731.

DOI: 10.1016/j.polymdegradstab.2004.03.018

[13] Polezhaev Y V. Modern Problems of Thermal Protection. Journal of Engineering Physics &Thermophysics, 2001, 74(6): 1364-1374.

[14] Chen Y M, Ting J M. Ultra high thermal conductivity polymer composites. Carbon, 2002, 40(3): 359-362.

DOI: 10.1016/s0008-6223(01)00112-9

[15] Wang S, Liang R, Wang B, et al. Dispersion and thermal conductivity of carbon nanotube composites. Carbon, 2009, 47(1): 53-57.

DOI: 10.1016/j.carbon.2008.08.024

[16] Jiang W, Jin F L, Park S J. Thermo-mechanical behaviors of epoxy resins reinforced with nano-Al 2 O 3 particles. Journal of Industrial & Engineering Chemistry, 2012, 18(2): 594-596.

DOI: 10.1016/j.jiec.2011.11.140

[17] Yang K, Gu M. Enhanced thermal conductivity of epoxy nanocomposites filled with hybrid filler system of triethylenetetramine-functionalized multi-walled carbon nanotube/silane-modified nano-sized silicon carbide. Composites Part A Applied Science & Manufacturing, 2010, 41(2): 215-221.

DOI: 10.1016/j.compositesa.2009.10.019

[18] Zhou T, Wang X, Liu X, et al. Improved thermal conductivity of epoxy composites using a hybrid multi-walled carbon nanotube/micro-SiCfiller. Carbon, 2010, 48(4): 1171-1176.

DOI: 10.1016/j.carbon.2009.11.040

[19] Wang W, Yang X, Fang Y, et al. Enhanced thermal conductivity and thermal performance of form-stable composite phase change materials by using β-Aluminum nitride. Applied Energy, 2009, 86(7): 1196-1200.

DOI: 10.1016/j.apenergy.2008.10.020

[20] Ganguli S, Roy A K, Anderson D P. Improved thermal conductivity for chemically functionalized exfoliated graphite/epoxy composites. Carbon, 2008, 46(5): 806-817.

DOI: 10.1016/j.carbon.2008.02.008

[21] Jin F L, Park S J. Thermal properties of epoxy resin/filler hybrid composites. Polymer Degradation & Stability, 2012, 97(11): 2148-2153.

DOI: 10.1016/j.polymdegradstab.2012.08.015

[22] Zhang Y, Huang Y, Liu X, et al. Studies on the silicone resins cured with polymethylsilazanes at ambient temperature. Journal of Applied Polymer Science, 2003, 89(6): 1702-1707.

DOI: 10.1002/app.12433

[23] Gao J, Liu Y, Yang L. Thermal stability of boron-containing phenol formaldehyde resin. Polymer Degradation & Stability, 1999, 63(1): 19-22.

DOI: 10.1016/s0141-3910(98)00056-1

[24] Mutin P H. Control of the Composition and Structure of Silicon Oxycarbide and Oxynitride Glasses Derived from PolysiloxanePrecursors. Journal of Sol-Gel Science and Technology, 1999, 14(14): 27-38.

[25] Tang Y, Wang J, Li X, et al. Thermal stability of polymer derived SiBNCceramics. Ceramics International, 2009, 35(7): 2871-2876.

DOI: 10.1016/j.ceramint.2009.03.043

[26] Jin S Y, Guo K K, Qi H M, et al. High Yield Polyborosilazane Precursor for SiBN Ceramics. Advanced Materials Research, 2014: 409-414.

DOI: 10.4028/www.scientific.net/amr.1004-1005.409

[27] Camino G, Lomakin S M, Lazzari M. Polydimethylsiloxane thermal degradation Part 1. Kinetic aspects. Polymer, 2001, 42(6): 2395-2402.

DOI: 10.1016/s0032-3861(00)00652-2
