Harmonic Structured Ti6Al4V by Spark Plasma Sintering

Article Preview

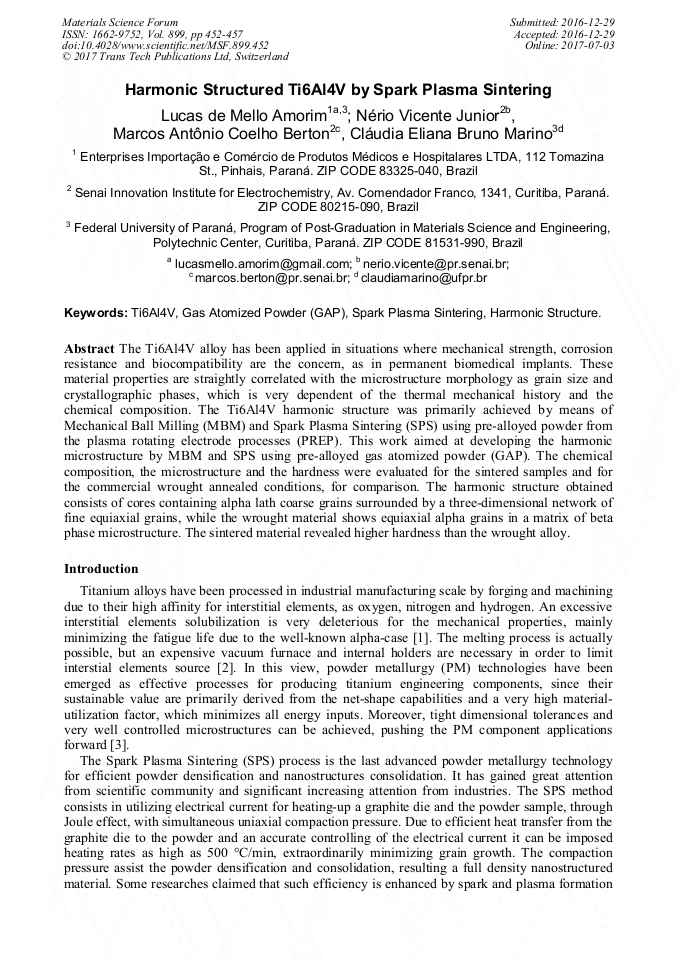

Abstract:

The Ti6Al4V alloy has been applied in situations where mechanical strength, corrosion resistance and biocompatibility are the concern, as in permanent biomedical implants. These material properties are straightly correlated with the microstructure morphology as grain size and crystallographic phases, which is very dependent of the thermal mechanical history and the chemical composition. The Ti6Al4V harmonic structure was primarily achieved by means of Mechanical Ball Milling (MBM) and Spark Plasma Sintering (SPS) using pre-alloyed powder from the plasma rotating electrode processes (PREP). This work aimed at developing the harmonic microstructure by MBM and SPS using pre-alloyed gas atomized powder (GAP). The chemical composition, the microstructure and the hardness were evaluated for the sintered samples and for the commercial wrought annealed conditions, for comparison. The harmonic structure obtained consists of cores containing alpha lath coarse grains surrounded by a three-dimensional network of fine equiaxial grains, while the wrought material shows equiaxial alpha grains in a matrix of beta phase microstructure. The sintered material revealed higher hardness than the wrought alloy.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

452-457

Citation:

Online since:

July 2017

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] W.G. Lütjering: Titanium. (Springer second edition Berlin, 2007).

Google Scholar

[2] M. Qian: Titanium Powder Metallurgy: Science, Technology and Applications. (Butterworth-Heinemann, 2015).

Google Scholar

[3] O. Yoshiki: Bioscience and Bioengineering of Titanium Materials. (Elsevier Insights second edition, 2007).

Google Scholar

[4] C. Shearwood: Scripta Materialia Vol. 52 (6) (2005), p.455.

Google Scholar

[5] Tokita: Mechanism of Spark Plasma Sintering. (Sumitomo Coal Mining Company Japan, 2000).

Google Scholar

[6] D. A Hulbert: Scripta Materialia Vol. (10) (2009), p.835.

Google Scholar

[7] T. Sekiguchi, K. Ameyama: Materials Transactions Vol. 51 (2010), p.39.

Google Scholar

[8] S. Vajpai, K. Ameyama, M. Ota: Materials Science and Engineering Vol. 63 (2014).

Google Scholar

[9] S. Vajpai, K. Ameyama: Materials Science and Engineering C Vol. 58 (2015), p.1008.

Google Scholar

[10] Z. Zhang, S. KumarVajpai, D. Orlov, K. Ameyama: Materials Science & Engineering A Vol. 598 (2014), p.106.

Google Scholar

[11] ASTM E 1941: Standard Test Method for Determination of Carbon in Refractory and Reactive Metals and Their Alloys by Combustion Analysis.

Google Scholar

[12] ASTM E 1409: Standard Test Method for Determination of Oxygen and Nitrogen in Titanium and Titanium Alloys by Inert Gas Fusion.

DOI: 10.1520/e1409

Google Scholar

[13] ASTM E18 - 15 Standard Test Methods for Rockwell Hardness of Metallic Materials.

Google Scholar

[14] ASTM B933 - 14 Standard Test Method for Microindentation Hardness of Powder Metallurgy (PM) Materials.

Google Scholar

[15] ASTM B988-13. Standard Specification for Powder Metallurgy (PM) Titanium and Titanium Alloy Structural Components.

DOI: 10.1520/b0988

Google Scholar

[16] ASTM F136: Standard Specification for Wrought Titanium-6Aluminum- 4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications.

DOI: 10.1520/f0136-13r21e01

Google Scholar

[17] S. Vajpai, K. Ameyama, M. Ota: Materials Science and Engineering, (2014).

Google Scholar
