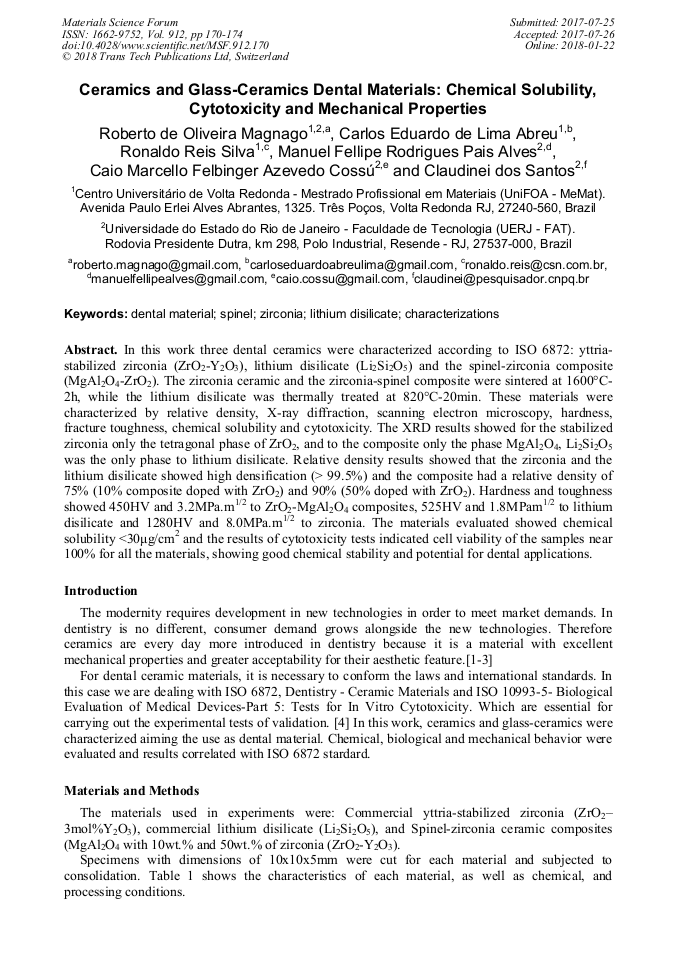

Ceramics and Glass-Ceramics Dental Materials: Chemical Solubility, Cytotoxicity and Mechanical Properties

Abstract:

In this work three dental ceramics were characterized according to ISO 6872: yttria-stabilized zirconia (ZrO₂-Y₂O₃), lithium disilicate (Li₂Si₂O₅) and the spinel-zirconia composite (MgAl₂O₄-ZrO₂). The zirconia ceramic and the zirconia-spinel composite were sintered at 1600°C-2h, while the lithium disilicate was thermally treated at 820°C-20min. These materials were characterized by relative density, X-ray diffraction, scanning electron microscopy, hardness, fracture toughness, chemical solubility and cytotoxicity. The XRD results showed for the stabilized zirconia only the tetragonal phase of ZrO₂, and to the composite only the phase MgAl₂O₄, Li₂Si₂O₅ was the only phase to lithium disilicate. Relative density results showed that the zirconia and the lithium disilicate showed high densification (> 99.5%) and the composite had a relative density of 75% (10% composite doped with ZrO₂) and 90% (50% doped with ZrO₂). Hardness and toughness showed 450HV and 3.2MPa.m^1/2 to ZrO₂-MgAl₂O₄ composites, 525HV and 1.8MPam^1/2 to lithium disilicate and 1280HV and 8.0MPa.m^1/2 to zirconia. The materials evaluated showed chemical solubility <30μg/cm² and the results of cytotoxicity tests indicated cell viability of the samples near 100% for all the materials, showing good chemical stability and potential for dental applications.

• Periodical: Materials Science Forum (Volume 912)
• Pages: 170-174
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.912.170
• Online since: January 2018
• Authors: Roberto de Oliveira Magnago, Carlos Eduardo de Lima Abreu, Ronaldo Reis Silva, Manuel Fellipe Rodrigues Pais Alves, Caio Marcelo Felbinger Azevedo Cossu, Claudinei dos Santos
• Keywords: Characterization, Dental Material, Lithium Disilicate, Spinel, Zirconia

References

[1] K.J. Anusavice: Phillips' Science of Dental Materials. (Elsevier Science, 11th ed. USA, 2003).

[2] R.G. Craig: Restorative Dental Materials. (Harcouret Brace, 10 ed. 1998).

[3] I. Denry, J.R. Kelly: Dent Mater. Vol. 24 (3) (2008), p.299.

[4] International Standard Organization, ISO6872 - Dentistry - Dental Materials, 3th edition, (2008).

[5] JCPDS - Joint Committee on Powder Diffraction Standard. Inorganic Materials. Pensilvania: International Centre for Diffraction Data Swarthmore. (2004).

[6] ASTM C1327-15, Standard Test Method for Vickers Indentation Hardness of Advanced Ceramics, ASTM International, West Conshohocken, (2015) 1-10.

[7] ASTM: C 1421-99. Standard test method for determination of fracture toughness of advanced ceramics at ambient temperature. (2015) 1-33.

[8] C. Santos, S. Ribeiro, J.K.M.F. Daguano, S.O. Rogero, K. Strecker, C.R.M. Silva: Science and Engineering C Vol. 27 (2007), p.148.

[9] C. Piconi, G. Maccauro: Biomaterials Vol. 20 (1) (1999), p.1.
