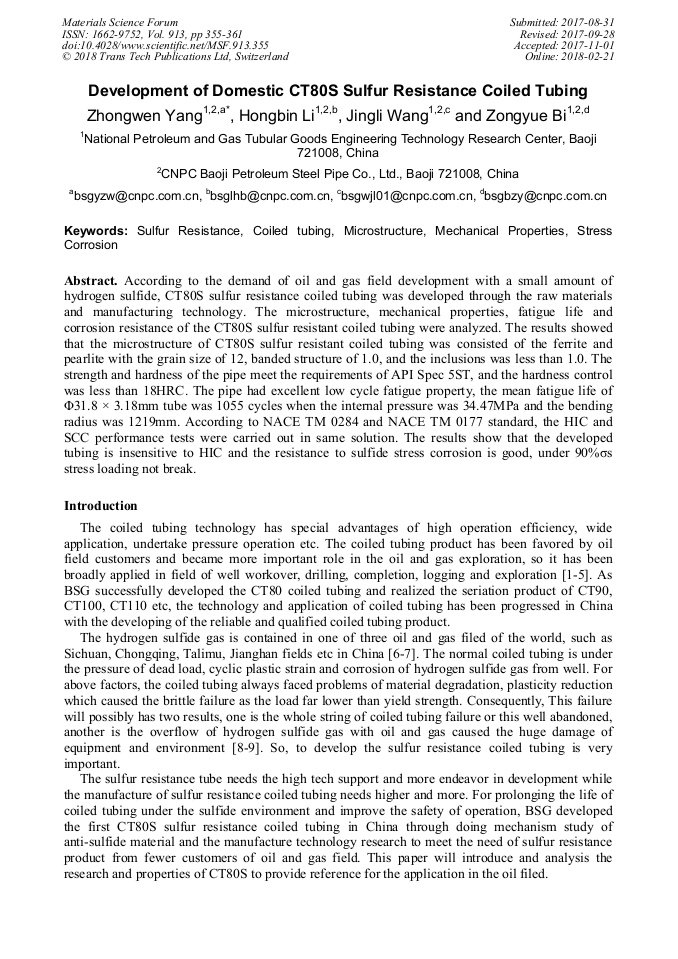

Development of Domestic CT80S Sulfur Resistance Coiled Tubing

Abstract:

According to the demand of oil and gas field development with a small amount of hydrogen sulfide, CT80S sulfur resistance coiled tubing was developed through the raw materials and manufacturing technology. The microstructure, mechanical properties, fatigue life and corrosion resistance of the CT80S sulfur resistant coiled tubing were analyzed. The results showed that the microstructure of CT80S sulfur resistant coiled tubing was consisted of the ferrite and pearlite with the grain size of 12, banded structure of 1.0, and the inclusions was less than 1.0. The strength and hardness of the pipe meet the requirements of API Spec 5ST, and the hardness control was less than 18HRC. The pipe had excellent low cycle fatigue property, the mean fatigue life of Φ31.8 × 3.18mm tube was 1055 cycles when the internal pressure was 34.47MPa and the bending radius was 1219mm. According to NACE TM 0284 and NACE TM 0177 standard, the HIC and SCC performance tests were carried out in same solution. The results show that the developed tubing is insensitive to HIC and the resistance to sulfide stress corrosion is good, under 90%σs stress loading not break.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 355-361
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.355
• Online since: February 2018
• Authors: Zhong Wen Yang*, Hong Bin Li, Jing Li Wang, Zong Yue Bi
• Keywords: Coiled Tubing, Mechanical Properties, Microstructure, Stress Corrosion, Sulfur Resistance

References

[1] Huique He, Review of coiled tubing technology and equipment development, CHINA PETROLEUM MACHINERY. 34 (1) 1-6.

[2] Zaimei Peng, Shubai Dou, Shuai Dong , et al, Pipe Welding, 04 (2008) 5-8.

[3] Zongtian Li, Coiled tubing Technical Manual, Beijing, Petroleum Industry Press, (2003).

[4] Xinliang Su, Gen Li, Zhonghou Shen, et al. Natural gas industry., 28 (2008) 55-57.

[5] Zongyue Bi, Xiaotian Jing, Shilin Jin, et al. Coiled tubing performance research and product development Oil field equipment. 39 (2010) 16-20.

[6] Yongde Bi, Wenyan Xu, Youyun Zhao, Tianjin metallurgy. 6 (2005) 3-26.

[7] Yun Lu, Shengpeng Ma, Bing Liang, Protection technique in gas production test of high H2S gas field, Safety and environmental protection technology in petrochemical industry. 27 (2011) 1-27.

[8] Luguang Li, Technical progress and development direction technical progress of high sulfur gas reservoir, Natural gas industry. 33 (2013) 18-24.

[9] Xuxiao Guo, Inner Mongolia Petrochemical Industry. 16 (2014) 28-29.

[10] Weiwei Qi, Ping Zhou, Laiwu Steel Technology. 4 (2008) 3-45.

[11] Qi Lou, Wei Du, Dongfeng Li, et al. Pipeline technology and equipment. 5 (2013) 7-9.

[12] Jingtao Li, Qingwu Cai, Demin Mo, Wide plate. 12 (2006) 13-21.

[13] Jiahua Pan, Research of hydrogen induced cracking in gas transmission pipeline, Oil & Gas Storage and Transportation. 16 (1997) 1-4.

[14] Kun Chi, Yanjie Zhou, Li Chen, et al, Inner Mongolia Petrochemical Industry. 1 (2013) 3-55.

[15] Ming Chen, Qi Cui, Research status and progress of hydrogen sulfide corrosion mechanism and protection in Oilfield, Petroleum Engineering Construction. 36 (2010) 1-5.

[16] Wei Liu, Xiaolin Pu, Xiaodong Bai, et al, Research status and progress of hydrogen sulfide corrosion mechanism and protection in Oilfield, Petroleum Drilling Techniques. 6 (2008) 83-86.

[17] Ning Xian, Fang Jiang, Ming Rong, et al. Natural gas industry. 31 (2011) 113-116.

[18] Xiaoping Zhu, Drilling and production industry. 27 (2004) 73-75.

[19] Zongyue Bi, Xiaofeng Zhang, Wanpeng Zhang, et al. Physical and chemical examination-Physical fascicle. 48 (2012) 79-82.
