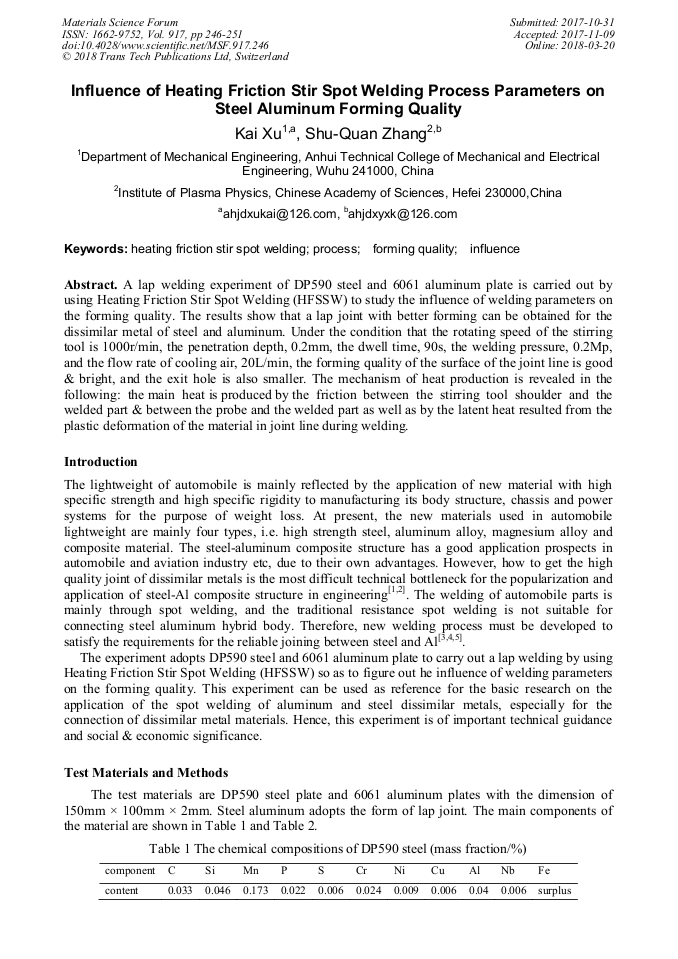

Influence of Heating Friction Stir Spot Welding Process Parameters on Steel Aluminum Forming Quality

Abstract:

A lap welding experiment of DP590 steel and 6061 aluminum plate is carried out by using Heating Friction Stir Spot Welding (HFSSW) to study the influence of welding parameters on the forming quality. The results show that a lap joint with better forming can be obtained for the dissimilar metal of steel and aluminum. Under the condition that the rotating speed of the stirring tool is 1000r/min, the penetration depth, 0.2mm, the dwell time, 90s, the welding pressure, 0.2Mp, and the flow rate of cooling air, 20L/min, the forming quality of the surface of the joint line is good & bright, and the exit hole is also smaller. The mechanism of heat production is revealed in the following: the main heat is produced by the friction between the stirring tool shoulder and the welded part & between the probe and the welded part as well as by the latent heat resulted from the plastic deformation of the material in joint line during welding.

• Periodical: Materials Science Forum (Volume 917)
• Pages: 246-251
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.917.246
• Online since: March 2018
• Authors: Kai Xu*, Shu Quan Zhang
• Keywords: Forming Quality, Heating Friction Stir Spot Welding, Influence, Process

References

[1] Wei Yan-ni, Li Jing-long, Xiong Jiang-tao, et al. Research status on friction stir welding of Aluminum/Steel dissimilar metals. Journal of Netshape for Ming Engineering 2015, 7(5): 34-38.

[2] Jafar Zadegan M, Feng A, Abdollah-zadeh A, et al. Micro-structural characterization in dissimilar friction stir welding between 304 stainless steel and st37 steel. Materials Characterization 2012, 74: 28-41.

DOI: 10.1016/j.matchar.2012.09.004

[3] Movahedi M, Kokabi A H, Seyed Reihani S M, et al. Effect of annealing treatment on joint strength of Aluminum/Steel friction stir lap weld. Materials ＆ Design 2013, 44: 487-492.

DOI: 10.1016/j.matdes.2012.08.028

[4] Gao Fuyang, Yu Yan, Jiang Peng, et al. Microstructure and property of friction⁃stir⁃welded lap joint of Al/Fe dissimilar alloys. Ordnance Material Science and Engineering 2016, 39(2): 51-54.

[5] Gratecap F, Girard M, Marya S, et al. Exploring material flow in friction stir welding: Tool eccentricity and formation of banded structures. International Journal of Materials Form 2012, 5(2): 99-107.

DOI: 10.1007/s12289-010-1008-5

[6] Xu Haisheng. The research of process and joining mechanism of dissimilar materials Al/Fe by friction stir welding. Nan jing, Nanjing University of Aeronautics and Astronautics. Master degree thesis (2015).
