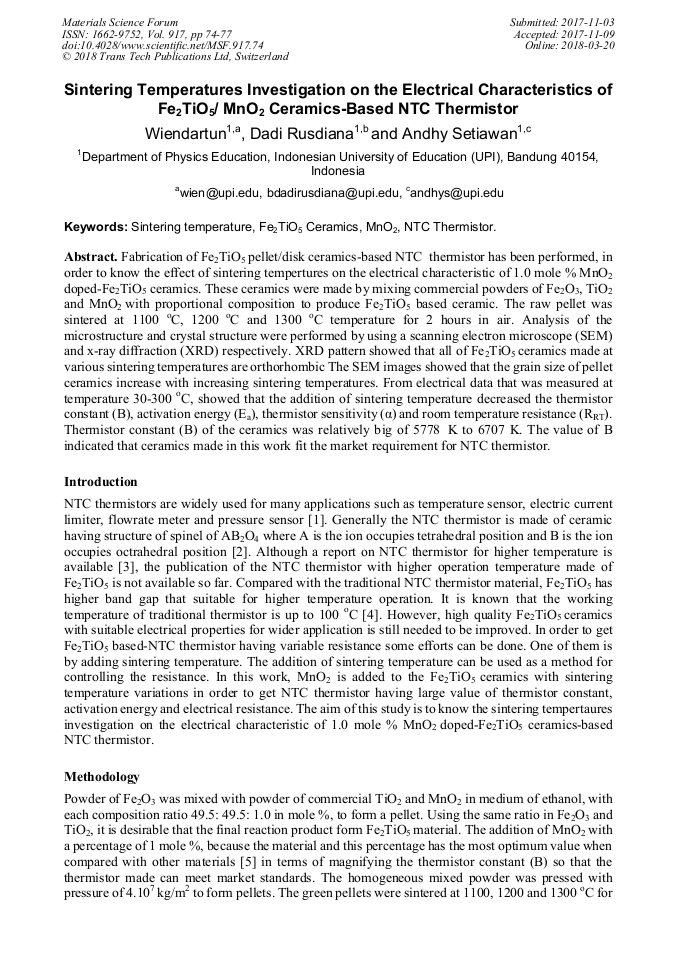

Sintering Temperatures Investigation on the Electrical Characteristics of Fe₂TiO₅/MnO₂ Ceramics-Based NTC Thermistor

Abstract:

Fabrication of Fe₂TiO₅pellet/disk ceramics-based NTC thermistor has been performed, in order to know the effect of sintering tempertures on the electrical characteristic of 1.0 mole % MnO₂doped-Fe₂TiO₅ ceramics. These ceramics were made by mixing commercial powders of Fe₂O₃, TiO₂ and MnO₂with proportional composition to produce Fe₂TiO₅ based ceramic. The raw pellet was sintered at 1100 °C, 1200 °C and 1300 °C temperature for 2 hours in air. Analysis of the microstructure and crystal structure were performed by using a scanning electron microscope (SEM) and x-ray diffraction (XRD) respectively. XRD pattern showed that all of Fe₂TiO₅ceramics made at various sintering temperatures are orthorhombic The SEM images showed that the grain size of pellet ceramics increase with increasing sintering temperatures. From electrical data that was measured at temperature 30-300 °C, showed that the addition of sintering temperature decreased the thermistor constant (B), activation energy (E_a), thermistor sensitivity (α) and room temperature resistance (R_RT). Thermistor constant (B) of the ceramics was relatively big of 5778 K to 6707 K. The value of B indicated that ceramics made in this work fit the market requirement for NTC thermistor.

You might also be interested in these eBooks

Material Science and Engineering Technology VI

View Preview

Info:

Periodical:

Materials Science Forum (Volume 917)

Pages:

74-77

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.917.74

Citation:

Cite this paper

Online since:

March 2018

Authors:

Wiendartun Wiendartun*, Dadi Rusdiana, Andhy Setiawan

Keywords:

Fe₂TiO₅ Ceramics, MnO₂, NTC Thermistor, Sintering Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R. Metz, Electrical Properties of NTC Thermistors Made of Manganite Ceramics of General Spinel Structure; Mn3-x-x' MxNx'O4 (0≤x+x'≤1; M and N being Ni, Co or Cu). Aging Phenomena Study, J. Mat Sci. Vol.

Google Scholar

[35] (2000), 4705-4711.

Google Scholar

[2] M. Vakiv, O. Shpotyuk, O. Mrooz, I. Hadzaman, Controlled Thermistor Effect in the System CuxNi1-x-y Co2y Mn2-y O4, J. Euro. Ceram. Soc., Vol.

DOI: 10.1016/s0955-2219(01)00115-7

Google Scholar

[21] (2001) , 1783-1785.

Google Scholar

[3] A. Feltz, W. Polzl, Spinel Forming ceramics of the System FexNiyMn3-y-xO4 for High Temperature NTC Thermistor Applications, J. Euro. Ceram. Soc., Vol.

DOI: 10.1016/s0955-2219(00)00140-0

Google Scholar

[20] (2000) 2352-2366.

Google Scholar

[4] G. D. C. Csete de Gyorgyfalva, I. M. Reaney, Decomposition of NiMn2O4 spinel: an NTC thermistor material, J. Euro. Ceram. Soc., Vol.

DOI: 10.1016/s0955-2219(01)00190-x

Google Scholar

[21] (2001) ,2145-2148.

Google Scholar

[5] Wiendartun, Waslaluddin, D.G. Syarif, Effect of MnO2 Addition on Characteristics of Fe2TiO5 Ceramics for NTC Thermistor Utilizing Commercial and Local Iron Oxide, J. Aust. Ceram. Soc., 49.

Google Scholar

[2] (2013) 141-147.

Google Scholar

[7] K. Park, J.K. Lee, The effect of ZnO content and sintering temperature on the electrical properties of Cu containing Mn1.95xNi0.45Co0.15Cu0.45ZnxO4 (0≤x≤0.3) NTC thermistors, J. Alloy. Compd., 475 (2009) 513-517.

DOI: 10.1016/j.jallcom.2008.07.076

Google Scholar

[8] Chengjian Ma, Yunfei Liu, Yinong Lu, Hao Qian, Preparation and electrical properties of Ni0.6Mn2.4_xTixO4 NTC ceramics, Alloy. Comp. J 650 (2015) 931- 935.

DOI: 10.1016/j.jallcom.2015.08.077

Google Scholar

[9] Anonymous, NTC Thermistor, American Zetler, Inc., Available at www.azetler.com.

Google Scholar
