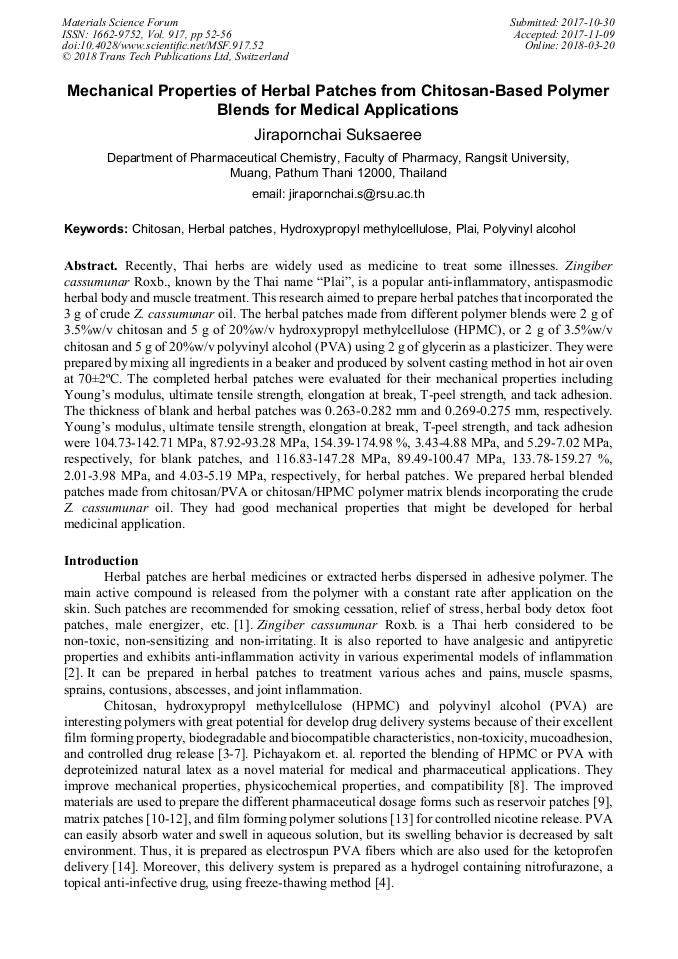

Mechanical Properties of Herbal Patches from Chitosan-Based Polymer Blends for Medical Applications

Abstract:

Recently, Thai herbs are widely used as medicine to treat some illnesses. Zingiber cassumunar Roxb., known by the Thai name “Plai”, is a popular anti-inflammatory, antispasmodic herbal body and muscle treatment. This research aimed to prepare herbal patches that incorporated the 3 g of crude Z. cassumunar oil. The herbal patches made from different polymer blends were 2 g of 3.5%w/v chitosan and 5 g of 20%w/v hydroxypropyl methylcellulose (HPMC), or 2 g of 3.5%w/v chitosan and 5 g of 20%w/v polyvinyl alcohol (PVA) using 2 g of glycerin as a plasticizer. They were prepared by mixing all ingredients in a beaker and produced by solvent casting method in hot air oven at 70±2oC. The completed herbal patches were evaluated for their mechanical properties including Young’s modulus, ultimate tensile strength, elongation at break, T-peel strength, and tack adhesion. The thickness of blank and herbal patches was 0.263-0.282 mm and 0.269-0.275 mm, respectively. Young’s modulus, ultimate tensile strength, elongation at break, T-peel strength, and tack adhesion were 104.73-142.71 MPa, 87.92-93.28 MPa, 154.39-174.98 %, 3.43-4.88 MPa, and 5.29-7.02 MPa, respectively, for blank patches, and 116.83-147.28 MPa, 89.49-100.47 MPa, 133.78-159.27 %, 2.01-3.98 MPa, and 4.03-5.19 MPa, respectively, for herbal patches. We prepared herbal blended patches made from chitosan/PVA or chitosan/HPMC polymer matrix blends incorporating the crude Z. cassumunar oil. They had good mechanical properties that might be developed for herbal medicinal application.

• Periodical: Materials Science Forum (Volume 917)
• Pages: 52-56
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.917.52
• Online since: March 2018
• Authors: Jirapornchai Suksaeree*
• Keywords: Chitosan, Herbal Patches, Hydroxypropyl Methylcellulose, Plai, Polyvinyl Alcohol

References

[1] S.R. Rathva, N.N. Patel, V. Shah, U.M. Upadhyay. Herbal transdermal patches: A review: Int J Drug Dis Herb Res Vol. 2 (2012), p.397.

[2] A. Panthong, D. Kanjanapothi, W. Niwatananant, P. Tuntiwachwuttikul, V. Reutrakul. Anti-inflammatory activity of compound D {(E)-4-(3', 4'-dimethoxyphenyl)but-3-en-2-ol} isolated from Zingiber cassumunar Roxb: Phytomedicine Vol. 4 (1997), p.207.

DOI: 10.1016/s0944-7113(97)80069-4

[3] C. Fadnis, S.R. Illiger, K.P. Rao, T. Demappa. Miscibility studies of HPMC/PVA blends in water by viscosity, density, refractive index and ultrasonic velocity method: Carbohydr Polym Vol. 74 (2008), p.779.

DOI: 10.1016/j.carbpol.2008.04.036

[4] J.O. Kim, J.K. Park, J.H. Kim, S.G. Jin, C.S. Yong, D.X. Li, J.Y. Choi, J.S. Woo, B.K. Yoo, W.S. Lyoo, J. -A. Kim, H. -G. Choi. Development of polyvinyl alcohol-sodium alginate gel-matrix-based wound dressing system containing nitrofurazone: Int J Pharm Vol. 359 (2008).

DOI: 10.1016/j.ijpharm.2008.03.021

[5] H.S. Samanta, S.K. Ray. Controlled release of tinidazole and theophylline from chitosan based composite hydrogels: Carbohydr Polym Vol. 106 (2014), p.109.

DOI: 10.1016/j.carbpol.2014.01.097

[6] Siddaramaiah, P. Kumar, K.H. Divya, B.T. Mhemavathi, D.S. Manjula. Chitosan/HPMC polymer blends for developing transdermal drug delivery systems: J Macromol Sci; A Vol. 43 (2006), p.601.

DOI: 10.1080/10601320600575231

[7] W.W. Thein-Han, W.F. Stevens. Transdermal delivery controlled by a chitosan membrane: Drug Dev Ind Pharm Vol. 30 (2004), p.397.

[8] W. Pichayakorn, J. Suksaeree, P. Boonme, W. Taweepreda, G.C. Ritthidej. Preparation of deproteinized natural rubber latex and properties of films formed by itself and several adhesive polymer blends: Ind Eng Chem Res Vol. 51 (2012), p.13393.

DOI: 10.1021/ie301985y

[9] W. Pichayakorn, J. Suksaeree, P. Boonme, T. Amnuaikit, W. Taweepreda, G.C. Ritthidej. Deproteinized natural rubber as membrane controlling layer in reservoir type nicotine transdermal patches: Chem Eng Res Des Vol. 91 (2012), p.520.

DOI: 10.1016/j.cherd.2012.09.011

[10] W. Pichayakorn, J. Suksaeree, P. Boonme, T. Amnuaikit, W. Taweepreda, G.C. Ritthidej. Deproteinized natural rubber latex/hydroxypropylmethyl cellulose blending polymers for nicotine matrix films: Ind Eng Chem Res Vol. 51 (2012), p.8442.

DOI: 10.1021/ie300608j

[11] W. Pichayakorn, J. Suksaeree, P. Boonme, T. Amnuaikit, W. Taweepreda, G.C. Ritthidej. Nicotine transdermal patches using polymeric natural rubber as the matrix controlling system: Effect of polymer and plasticizer blends: J Membr Sci Vol. 411-412 (2012).

DOI: 10.1016/j.memsci.2012.04.017

[12] J. Suksaeree, P. Boonme, W. Taweepreda, G.C. Ritthidej, W. Pichayakorn. Characterization, in vitro release and permeation studies of nicotine transdermal patches prepared from deproteinized natural rubber latex blends: Chem Eng Res Des Vol. 90 (2012).

DOI: 10.1016/j.cherd.2011.11.002

[13] W. Pichayakorn, J. Suksaeree, P. Boonme, T. Amnuaikit, W. Taweepreda, C.G. Ritthidej. Deproteinized natural rubber film forming polymeric solutions for nicotine transdermal delivery: Pharmaceut Dev Tech Vol. 18 (2013), p.1111.

DOI: 10.3109/10837450.2012.705297

[14] E. -R. Kenawy, F.I. Abdel-Hay, M.H. El-Newehy, G.E. Wnek. Controlled release of ketoprofen from electrospun poly(vinyl alcohol) nanofibers: Mater Sci Eng A Vol. 459 (2007), p.390.

DOI: 10.1016/j.msea.2007.01.039

[15] J. Suksaeree, L. Charoenchai, F. Madaka, C. Monton, A. Sakunpak, T. Charoonratana, W. Pichayakorn. Zingiber cassumunar blended patches for skin application: Formulation, physicochemical properties, and in vitro studies: Asian J Pharm Sci Vol. 10 (2015).

DOI: 10.1016/j.ajps.2015.03.001

[16] J. Suksaeree, C. Monton, F. Madaka, T. Chusut, W. Saingam, W. Pichayakorn, P. Boonme. Formulation, physicochemical characterization, and in vitro study of chitosan/HPMC blends-based herbal blended patches: AAPS PharmSciTech Vol. 16 (2015), p.171.

DOI: 10.1208/s12249-014-0216-6
