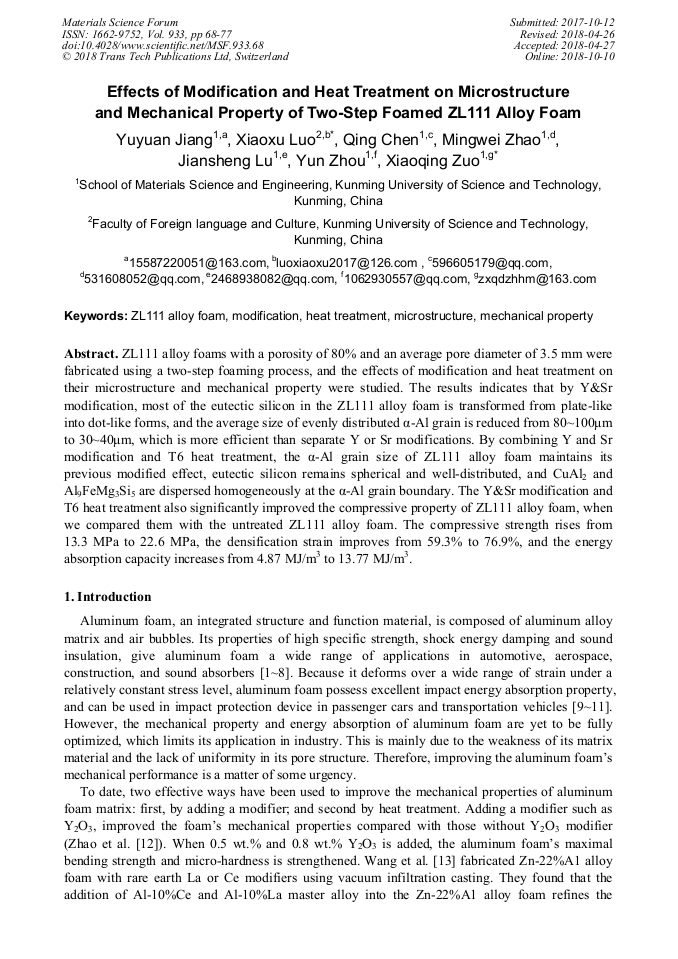

Effects of Modification and Heat Treatment on Microstructure and Mechanical Property of Two-Step Foamed ZL111 Alloy Foam

Abstract:

ZL111 alloy foams with a porosity of 80% and an average pore diameter of 3.5 mm were fabricated using a two-step foaming process, and the effects of modification and heat treatment on their microstructure and mechanical property were studied. The results indicates that by Y&Sr modification, most of the eutectic silicon in the ZL111 alloy foam is transformed from plate-like into dot-like forms, and the average size of evenly distributed α-Al grain is reduced from 80~100μm to 30~40μm, which is more efficient than separate Y or Sr modifications. By combining Y and Sr modification and T6 heat treatment, the α-Al grain size of ZL111 alloy foam maintains its previous modified effect, eutectic silicon remains spherical and well-distributed, and CuAl₂ and Al₉FeMg₃Si₅ are dispersed homogeneously at the α-Al grain boundary. The Y&Sr modification and T6 heat treatment also significantly improved the compressive property of ZL111 alloy foam, when we compared them with the untreated ZL111 alloy foam. The compressive strength rises from 13.3 MPa to 22.6 MPa, the densification strain improves from 59.3% to 76.9%, and the energy absorption capacity increases from 4.87 MJ/m³ to 13.77 MJ/m³.

• Periodical: Materials Science Forum (Volume 933)
• Pages: 68-77
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.933.68
• Online since: October 2018
• Authors: Yu Yuan Jiang, Xiao Xu Luo, Qing Chen, Ming Wei Zhao, Jian Sheng Lu, Yun Zhou, Xiao Qing Zuo*
• Keywords: Heat Treatment, Mechanical Properties, Microstructure, Modification, ZL111 Alloy Foam

References

[1] C.J. Yu, H.H. Eifert, J. Banhart, Metal foaming by a powder metallurgy method: Production, properties and applications, Mate. Res. Innovations. 2 (1998) 181-188.

DOI: 10.1007/s100190050082

[2] J. Banhart, Manufacture, characterization and application of cellular metals and metal foams, Prog. Mater. Sci. 46 (2001) 559-632.

DOI: 10.1016/s0079-6425(00)00002-5

[3] D.J. Werther, A.J. Howard, J.P. Ingraham, Characterization and modeling of strain localization in aluminum foam using multiple face analysis, Scripta. Mater. 54 (2006) 783-787.

DOI: 10.1016/j.scriptamat.2005.11.020

[4] H. Nakajima, Fabrication, properties and application of porous metals with directional pores, Pro. Mater. Sci. 52 (2007) 1091-1173.

DOI: 10.1016/j.pmatsci.2006.09.001

[5] P. Colombo, H.P. Degischer, Highly porous metals and ceramics, Adv. Eng. Mater. 26 (2010) 1145-1158.

[6] Y. Bienvenu, Application and future of solid foams, Com. Ren. Phy. 15 (2014) 719-730.

[7] M. Malekjafarian, S.K. Sadrnezhaad, Closed-cell Al alloy composite foams: Production and characterization, Mater. Des. 42 (2012) 8-12.

DOI: 10.1016/j.matdes.2012.05.036

[8] F. Garcíamoreno, Commercial applications of metal foams: their properties and production, Mater 9 (2016).

[9] K.A. Dannemann, J. Lankford, High strain rate compression of closed-cell aluminium foams, Mater. Sci. Eng. A 293 (2000) 157-164.

DOI: 10.1016/s0921-5093(00)01219-3

[10] P.S. Liu, K.M. Liang, Review- functional materials of porous metals made by P/M, electroplating and some other techniques, J. Mater. Sci. 36 (2001) 5059-5072.

[11] Y. Feng, N. Tao, Z. Zhu, Effect of aging treatment on the quasi-static and dynamic compressive properties of aluminum alloy foams, Mater. Lett. 57 (2003) 4058-4063.

DOI: 10.1016/s0167-577x(03)00265-9

[12] N.Q. Zhao, B. Jiang, X.W. Du, Effect of Y2O3, on the mechanical properties of open cell aluminum foams, Mater. Lett. 60 (2006) 1665-1668.

DOI: 10.1016/j.matlet.2005.11.088

[13] H.B. Wang, S.H. Liang, P. Xiao, Z.K. Fan, Influence of rare earths on microstructure and damping capacity of ZA alloy foam, Chi. Jou. Non. Met. 17 (2007) 1685-1689.

[14] W.M. Zhao, Z. Zhang, Y.N. Wang, Compressive characteristics of closed-cell aluminum foams with different percentages of Er element, Chi. Fou. 13 (2016) 36-41.

DOI: 10.1007/s41230-016-5109-8

[15] F. Campana, D. Pilone, Effect of heat treatments on the mechanical behaviour of aluminium alloy foams, Scripta. Mater. 60 (2009) 679-682.

DOI: 10.1016/j.scriptamat.2008.12.045

[16] Z. Wang, Z. Li, J. Ning, Effect of heat treatments on the crushing behaviour and energy absorbing performance of aluminium alloy foams, Mater. Des. 30 (2009) 977-982.

DOI: 10.1016/j.matdes.2008.06.058

[17] M. Taherishargh, I.V. Belova, G.E. Murch, On the mechanical properties of heat-treated expanded perlite–aluminium syntactic foam, Mater. Des. 63 (2014) 375-383.

DOI: 10.1016/j.matdes.2014.06.019

[18] P. Schüler, R. Frank, D. Uebel, Influence of heat treatments on the microstructure and mechanical behaviour of open cell AlSi7Mg0.3 foams on different lengthscales, Acta. Mater. 109 (2016) 32-45.

DOI: 10.1016/j.actamat.2016.02.041

[19] V.G. Davydov, T.D. Rostova, V.V. Zakharov, Scientific principles of making an alloying addition of scandium to aluminium alloys, Mater. Sci. Eng. A 280 (2000) 30-36.

DOI: 10.1016/s0921-5093(99)00652-8

[20] S. Lathabai, P.G. Lloyd, The effect of scandium on the microstructure, mechanical properties and weldability of a cast Al–Mg alloy, Acta. Mater. 50 (2002) 4275-4292.

DOI: 10.1016/s1359-6454(02)00259-8

[21] Y. Harada, D.C. Dunand, Microstructure of Al3Sc with ternary rare-earth additions, Int. 17 (2009) 17-24.

DOI: 10.1016/j.intermet.2008.09.002

[22] L. Huang, H. Wang, D. Yang, Effects of scandium additions on mechanical properties of cellular Al-based foams, Int. 28 (2012) 71-76.

DOI: 10.1016/j.intermet.2012.03.050

[23] H. Yan, J.Q. Zhang, S. Zang, Research progress on rare earth aluminium alloy modification, Mater. Rev. 27 (2013) 285-287.
