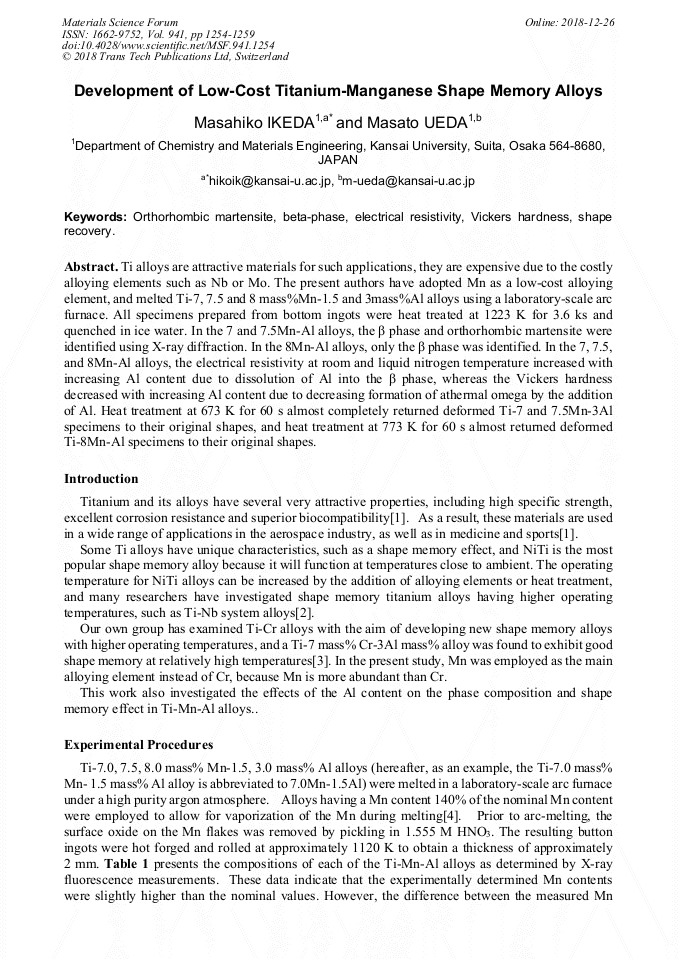

Development of Low-Cost Titanium-Manganese Shape Memory Alloys

Abstract:

Ti alloys are attractive materials for such applications, they are expensive due to the costly alloying elements such as Nb or Mo. The present authors have adopted Mn as a low-cost alloying element, and melted Ti-7, 7.5 and 8 mass%Mn-1.5 and 3mass%Al alloys using a laboratory-scale arc furnace. All specimens prepared from bottom ingots were heat treated at 1223 K for 3.6 ks and quenched in ice water. In the 7 and 7.5Mn-Al alloys, the β phase and orthorhombic martensite were identified using X-ray diffraction. In the 8Mn-Al alloys, only the β phase was identified. In the 7, 7.5, and 8Mn-Al alloys, the electrical resistivity at room and liquid nitrogen temperature increased with increasing Al content due to dissolution of Al into the β phase, whereas the Vickers hardness decreased with increasing Al content due to decreasing formation of athermal omega by the addition of Al. Heat treatment at 673 K for 60 s almost completely returned deformed Ti-7 and 7.5Mn-3Al specimens to their original shapes, and heat treatment at 773 K for 60 s almost returned deformed Ti-8Mn-Al specimens to their original shapes.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 1254-1259
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.1254
• Online since: December 2018
• Authors: Masahiko Ikeda*, Masato Ueda
• Keywords: Beta-Phase, Electrical Resistivity, Orthorhombic Martensite, Shape Recovery, Vickers Hardness

References

[1] Materials Properties Handbook, Titanium Alloys, Eds. R. Boyer, G. Welsch and E. W. Collings, ASM International, Materials Park, Ohio, 1994, P. 3-4.

[2] C. Baker, The Shape-Memory Effect in a Titanium –35wt% Niobium Alloy. Metal Science Journal, Vol. 5, 1971, P.92-101.

[3] M. Ikeda, D. Sugano, S. Masuda and M. Ogawa, The Influence of Aluminum Content on Shape Memory Effect of Ti-7Cr-Al Alloys Fabricated Using Low Grade Sponge Titanium, Vol. 46, 2005, P. 1604-1609.

DOI: 10.2320/matertrans.46.1604

[4] M. Ikeda, M. Ueda, R. Matsunaga, M, Ogawa and M. Niinomi, Isothermal Aging Behavior of Beta Titanium-Manganese Alloys, Vol. 50, 2009, P. 2737-2743.

DOI: 10.2320/matertrans.ma200902

[5] Y. Takemoto, M. Ochi, T. Senuma, J. Takada, I. Shimizu and K. Matsugi, Unprecedented Phenomena with Tempering of Ti-4Fe-7Al Alloy, J. Japan Inst. Metals, Vol. 76, 2012, P. 449-455.

DOI: 10.2320/jinstmet.76.449

[6] M. Ijiri, Y. Tomita, T. Ishikawa and Y. Takemoto, Phase Transformation Behavior of Ti-35Nb-7Al Alloy with Tempering, J. Japan Inst. Met. Mater. Vol. 80, 2016, P. 547-552.

DOI: 10.2320/jinstmet.jaw201601
