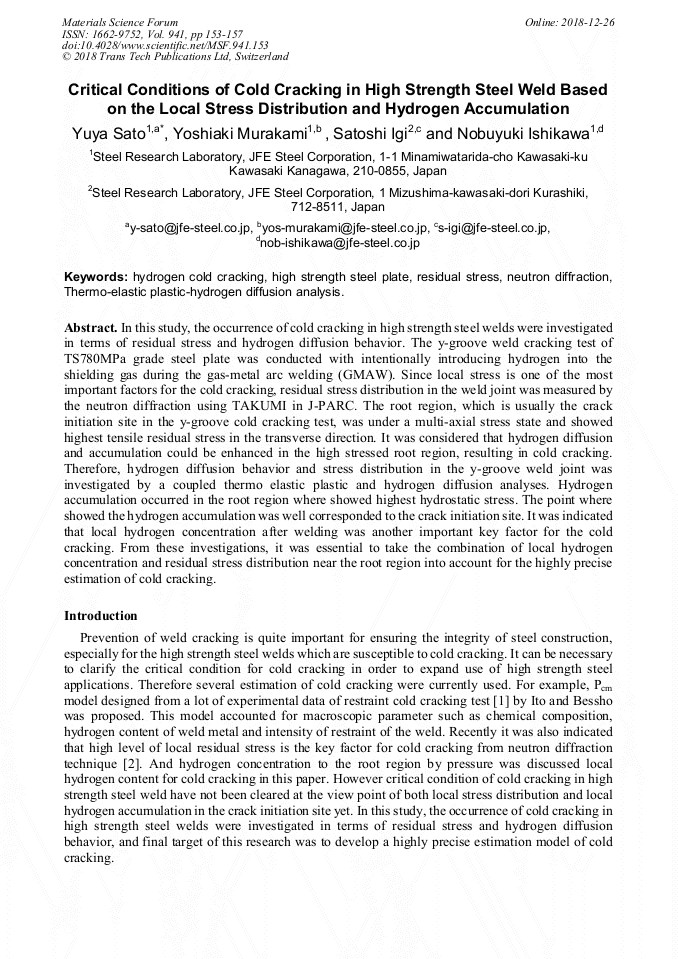

Critical Conditions of Cold Cracking in High Strength Steel Weld Based on the Local Stress Distribution and Hydrogen Accumulation

Abstract:

In this study, the occurrence of cold cracking in high strength steel welds were investigated in terms of residual stress and hydrogen diffusion behavior. The y-groove weld cracking test of TS780MPa grade steel plate was conducted with intentionally introducing hydrogen into the shielding gas during the gas-metal arc welding (GMAW). Since local stress is one of the most important factors for the cold cracking, residual stress distribution in the weld joint was measured by the neutron diffraction using TAKUMI in J-PARC. The root region, which is usually the crack initiation site in the y-groove cold cracking test, was under a multi-axial stress state and showed highest tensile residual stress in the transverse direction. It was considered that hydrogen diffusion and accumulation could be enhanced in the high stressed root region, resulting in cold cracking. Therefore, hydrogen diffusion behavior and stress distribution in the y-groove weld joint was investigated by a coupled thermo elastic plastic and hydrogen diffusion analyses. Hydrogen accumulation occurred in the root region where showed highest hydrostatic stress. The point where showed the hydrogen accumulation was well corresponded to the crack initiation site. It was indicated that local hydrogen concentration after welding was another important key factor for the cold cracking. From these investigations, it was essential to take the combination of local hydrogen concentration and residual stress distribution near the root region into account for the highly precise estimation of cold cracking.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 153-157
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.153
• Online since: December 2018
• Authors: Yuya Sato*, Yoshiaki Murakami, Igi Satoshi, Nobuyuki Ishikawa
• Keywords: High Strength Steel Plate, Hydrogen Cold Cracking, Neutron Diffraction, Residual Stress, Thermo-Elastic Plastic-Hydrogen Diffusion Analysis

References

[1] Y. Ito and K Bessho, Cracking parameter of high strength steels related to heat affected zone cracking, J. Jpn. Weld. Soc. 38 (1969) 983-991.

[2] N. Ishikawa, H Sueyoshi, H Suzuki and K Akita, Critical condtion for hydrogen induced cold cracking of 980MPa class weld metal, Q. J. Jpn. Weld. Soc. 29 (2011) 218-224.

DOI: 10.2207/qjjws.29.218

[3] T. Yokobori, T. Nemoto, K. Satoh and T. Yamada, Numerical analysis on hydrogen diffusion and concentration in solid with emission around the crack tip, Eng. Fract. Mech., 55 (1996) 47-60.

DOI: 10.1016/0013-7944(96)00002-1

[4] H. Suzuki, T. M. Holden, A. Moriai, N. Minakawa and Y. Morii, Residual stress evaluation of butt weld sample of high tensile strength steel using neutron diffraction, J. Soc. Mat. Sci., 54 (2005) 685-691.

DOI: 10.2472/jsms.54.685
