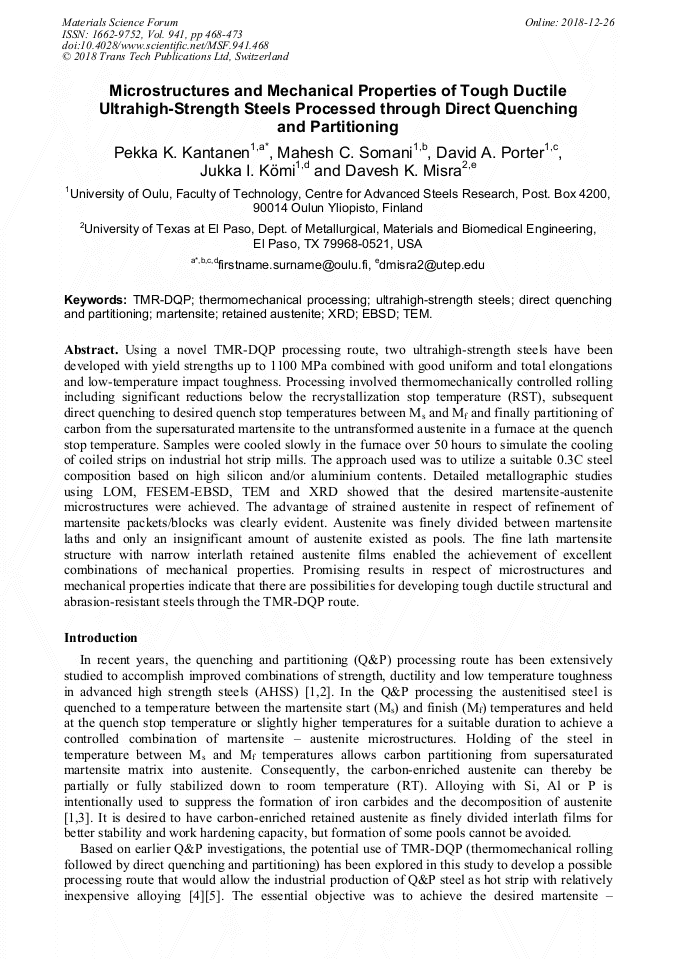

Microstructures and Mechanical Properties of Tough Ductile Ultrahigh-Strength Steels Processed through Direct Quenching and Partitioning

Abstract:

Using a novel TMR-DQP processing route, two ultrahigh-strength steels have been developed with yield strengths up to 1100 MPa combined with good uniform and total elongations and low-temperature impact toughness. Processing involved thermomechanically controlled rolling including significant reductions below the recrystallization stop temperature (RST), subsequent direct quenching to desired quench stop temperatures between M_s and M_f and finally partitioning of carbon from the supersaturated martensite to the untransformed austenite in a furnace at the quench stop temperature. Samples were cooled slowly in the furnace over 50 hours to simulate the cooling of coiled strips on industrial hot strip mills. The approach used was to utilize a suitable 0.3C steel composition based on high silicon and/or aluminium contents. Detailed metallographic studies using LOM, FESEM-EBSD, TEM and XRD showed that the desired martensite-austenite microstructures were achieved. The advantage of strained austenite in respect of refinement of martensite packets/blocks was clearly evident. Austenite was finely divided between martensite laths and only an insignificant amount of austenite existed as pools. The fine lath martensite structure with narrow interlath retained austenite films enabled the achievement of excellent combinations of mechanical properties. Promising results in respect of microstructures and mechanical properties indicate that there are possibilities for developing tough ductile structural and abrasion-resistant steels through the TMR-DQP route.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 468-473
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.468
• Online since: December 2018
• Authors: Pekka K. Kantanen*, Mahesh Chandra Somani, David A. Porter, Jukka I. Kömi, Devesh K. Misra
• Keywords: Direct Quenching, EBSD, Martensite, Partitioning, Retained Austenite, TEM, Thermomechanical Processing, TMR-DQP, Ultrahigh-Strength Steel, X-Ray Diffraction

References

[1] J. Speer, D.K. Matlock, B.C. De Cooman, J.G. Schroth, Carbon partitioning into austenite after martensite transformation, Acta Mater. 51 (2003) 2611–2622.

DOI: 10.1016/s1359-6454(03)00059-4

[2] A. Arlazarov, M. Ollat, J.P. Masse, M. Bouzat, Influence of partitioning on mechanical behavior of Q&P steels, Mater. Sci. Eng. A. 661 (2016) 79–86.

DOI: 10.1016/j.msea.2016.02.071

[3] M.J. Santofimia, T. Nguyen-Minh, L. Zhao, R. Petrov, I. Sabirov, J. Sietsma, New low carbon Q&P steels containing film-like intercritical ferrite, Mater. Sci. Eng. A. 527 (2010) 6429–6439.

DOI: 10.1016/j.msea.2010.06.083

[4] M.C. Somani, D.A. Porter, L.P. Karjalainen, R.D.K. Misra, On Various Aspects of Decomposition of Austenite in a High-Silicon Steel during Quenching and Partitioning, Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 45 (2014) 1247–1257.

DOI: 10.1007/s11661-013-2053-8

[5] M.C. Somani, D.A. Porter, L.P. Karjalainen, P.P. Suikkanen, R.D.K. Misra, Process Design for Tough Ductile Martensitic Steels through Direct Quenching and Partitioning, Mater. Today Proc. 2 (2015) 631–634.

DOI: 10.1016/j.matpr.2015.07.363

[6] G.A. Thomas, J.G. Speer, D.K. Matlock, Quenched and partitioned microstructures produced via Gleeble simulations of hot-strip mill cooling practices, Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 42 (2011) 3652–3659.

DOI: 10.1007/s11661-011-0648-5

[7] D.P. Koistinen, R.E. Marburger, A general equation prescribing the extent of the austenite-martensite transformation in pure iron-carbon alloys and plain carbon steels, Acta Metall. 7 (1959) 59–60.

DOI: 10.1016/0001-6160(59)90170-1

[8] S.M.C. van Bohemen, J. Sietsma, Martensite formation in partially and fully austenitic plain carbon steels, Metall. Mater. Trans. A Phys. Metall. Mater. Sci. 40 (2009) 1059–1068.

DOI: 10.1007/s11661-009-9796-2

[9] B.D. Cullity, Elements of X-ray diffraction, 2nd edition, Addison-Wesley Publ. Co. Read. MA. (1978) 508.
