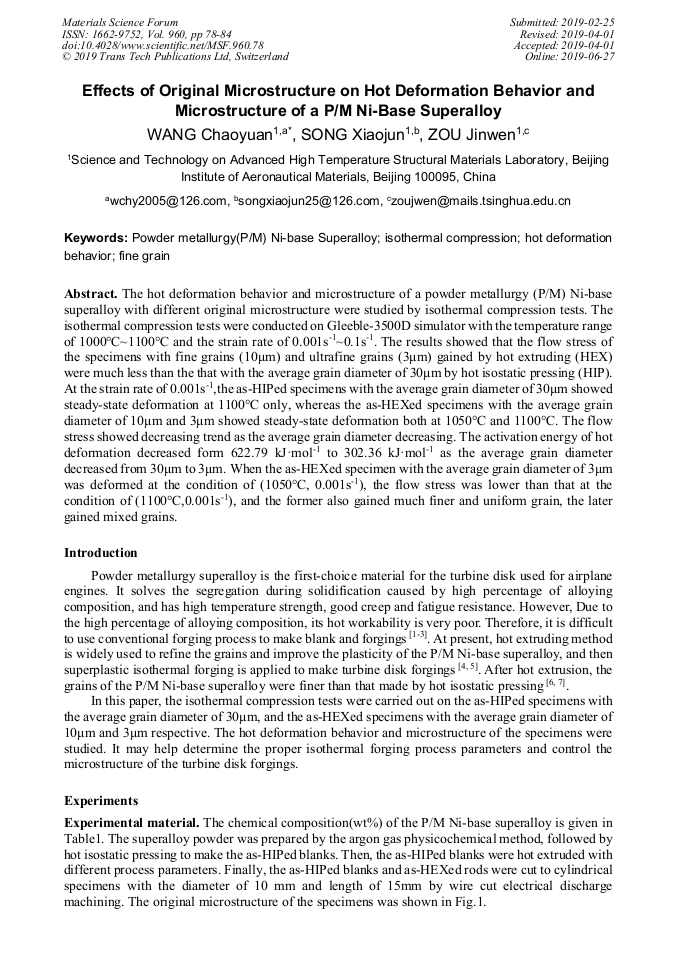

Effects of Original Microstructure on Hot Deformation Behavior and Microstructure of a P/M Ni-Base Superalloy

Abstract:

The hot deformation behavior and microstructure of a powder metallurgy (P/M) Ni-base superalloy with different original microstructure were studied by isothermal compression tests. The isothermal compression tests were conducted on Gleeble-3500D simulator with the temperature range of 1000°C~1100°C and the strain rate of 0.001s^-1~0.1s^-1. The results showed that the flow stress of the specimens with fine grains (10μm) and ultrafine grains (3μm) gained by hot extruding (HEX) were much less than the that with the average grain diameter of 30μm by hot isostatic pressing (HIP). At the strain rate of 0.001s^-1，the as-HIPed specimens with the average grain diameter of 30μm showed steady-state deformation at 1100°C only， whereas the as-HEXed specimens with the average grain diameter of 10μm and 3μm showed steady-state deformation both at 1050°C and 1100°C. The flow stress showed decreasing trend as the average grain diameter decreasing. The activation energy of hot deformation decreased form 622.79 kJ·mol^-1 to 302.36 kJ·mol^-1 as the average grain diameter decreased from 30μm to 3μm. When the as-HEXed specimen with the average grain diameter of 3μm was deformed at the condition of (1050°C, 0.001s^-1), the flow stress was lower than that at the condition of (1100°C,0.001s^-1), and the former also gained much finer and uniform grain, the later gained mixed grains.

• Periodical: Materials Science Forum (Volume 960)
• Pages: 78-84
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.960.78
• Online since: June 2019
• Authors: Chao Yuan Wang*, Xiao Jun Song, Jin Wen Zou
• Keywords: Fine Grain, Hot Deformation Behavior, Isothermal Compression, Powder Metallurgy (P/M) Ni-Base Superalloy

References

[1] J.W. ZOU,W.X. WANG. Development and application of P/M superalloy [J].Journal of Aeronautical Materials,2006,26 (3):244-250.

[2] S.Y. WANG, H.Q. LI, M.C. ZHANG.A study of the mechanical properties of FGH96 alloy in isothermal deformation [J]. Hot Working Technology,2002(6):16-18.

[3] S.Y. WANG, M.C. ZHANG, Y.P. DONG,et al. Study on super plasticity of extruded FGH96 alloy[J].Journal of Materials Engineering, 2012, (7): 24-28.

[4] S.Y. WANG, H.Q. LI, H.T. YANG. Superplastic isothermal forging technology of P/M superalloy[J]. Journal of Materials Engineering,2007,27 (5): 30-33.

[5] C.Y. WANG, X.J. SONG,Y.P. DONG,et al. Effect of deforming temperature and strain on abnormal grain growth of extruded FGH96 superalloy[J].Journal of Materials Engineering, 2016, 36 (5): 14-20.

[6] C.Z. LIU, F LIU, L HUANG,et al. Effect of hot extrusion and heat treatment on microstructure of nickel-base superalloy[J].Transactions of Nonferrous Metals Society of China,2014 (14): 2544-2553.

DOI: 10.1016/s1003-6326(14)63381-1

[7] C.Y. WANG, Y.P. DONG,S.Y. WANG,et al. Study on hot deformation behavior and microstructure characteristics of extruded Ni-base powder metallurgy superalloy[J].Forging and Stamping Technology,2014,39 (4): 155-161.

[8] J.T. LIU, G.Q. LIU, B.F. HU,et al. The coarsening behavior of γ´ particles in FGH96 superalloys during the high temperature treatment[J]. Rare Materials and Engineering,2006,35 (3) : 418-422.

[9] B.F. HU,G.Q. LIU,K. WU,et al. Morphological instability of γ´ phase in nickel-based powder metallurgy[J]. Acta Metallurgica Sinica,2012,48 (3): 257-263.

DOI: 10.3724/sp.j.1037.2011.00731

[10] F.L. LI,Y. FU,D. FENG,et al. Hot deformation characteristics of Ni-Base wrought superalloy CDS＆W FGH96[J]. Chinese Journal of Rare Metels,2015,39 (3): 201-206.

[11] F. Garofalo. An empiral relation defining the stress dependence of minimum creep rate in metal [J]. Trans AIME 1963, 227:3351-6.

[12] Z.J. Gronostajski. Model describing the characteristic values of flow stress and strain of brass M63 and aluminum bronze BA93 [J]. J Mater Process Technology 1998, 78: 84-9.

DOI: 10.1016/s0924-0136(97)00467-6

[13] G.J. RICHARDSON, C.M. SELLARS, W.J.M. TEGART. Recrystallization during creep of nickel [J]. Acta Metallurgica, 1966,14(10): 1225-1236.

DOI: 10.1016/0001-6160(66)90240-9

[14] W. XU,L.W ZHANG,S.D. GU,et al. Hot compressive deformation behavior and microstructure evolution of HIPed FGH96 superalloy [J]. Transactions of Nonferrous Metals society of China,2012,22:66-71.

DOI: 10.1016/s1003-6326(11)61141-2

[15] K. WU, G.Q. LIU,B.F HU,et al. Hot compressive deformation behavior of a new hot isostatically pressed Ni-Cr-Cobased powder metallurgy uperalloy[J]. Materials and Design, 2011,32:1872-1879.

DOI: 10.1016/j.matdes.2010.12.014
