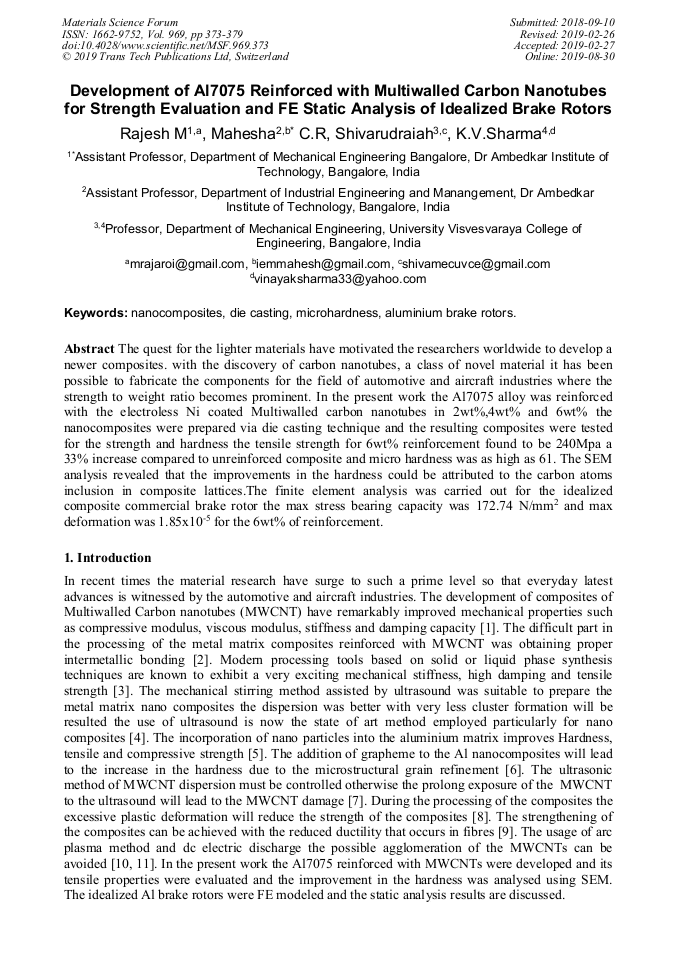

Development of Al7075 Reinforced with Multiwalled Carbon Nanotubes for Strength Evaluation and FE Static Analysis of Idealized Brake Rotors

Abstract:

The quest for the lighter materials have motivated the researchers worldwide to develop a newer composites. with the discovery of carbon nanotubes, a class of novel material it has been possible to fabricate the components for the field of automotive and aircraft industries where the strength to weight ratio becomes prominent. In the present work the Al7075 alloy was reinforced with the electroless Ni coated Multiwalled carbon nanotubes in 2wt%,4wt% and 6wt% the nanocomposites were prepared via die casting technique and the resulting composites were tested for the strength and hardness the tensile strength for 6wt% reinforcement found to be 240Mpa a 33% increase compared to unreinforced composite and micro hardness was as high as 61. The SEM analysis revealed that the improvements in the hardness could be attributed to the carbon atoms inclusion in composite lattices.The finite element analysis was carried out for the idealized composite commercial brake rotor the max stress bearing capacity was 172.74 N/mm² and max deformation was 1.85x10^-5 for the 6wt% of reinforcement. Keywords: nanocomposites, die casting, microhardness, aluminium brake rotors.

• Periodical: Materials Science Forum (Volume 969)
• Pages: 373-379
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.969.373
• Online since: August 2019
• Authors: M. Rajesh*, C.R. Mahesha, Shivarudraiah Shivarudraiah, K.V. Sharm
• Keywords: Aluminium Brake Rotors, Die Casting, Microhardness, Nanocomposites

References

[1] Wenjie Zhao, TongLi, YupengLi, Daniel, J.O'Brien, Mauricio Terrones, Bingqing Wei, Jonghwan Suhr, X.Lucas Lu Mechanical properties of nanocomposites reinforced by carbon nanotube sponges, Journal of Materiomics Volume 4, Issue 2, June 2018, Pages 157-164.

DOI: 10.1016/j.jmat.2018.01.006

[2] Riccardo Casati and Maurizio Vedani Metal Matrix Composites Reinforced by Nano-Particles—A Review, Metals 2014, 4, 65-83;.

DOI: 10.3390/met4010065

[3] Pradeeo K. Rohatgi, Afsaneh D Moghadam, Benjamin Schultz, J. B. Ferguson Synthesis and Properties of Metal Matrix Nanocomposites (MMNCS), Syntactic Foams, Self Lubricating and Self-Healing Metals, PRICM September 2013DOI: 10.1002/9781118792148.ch191.

DOI: 10.1002/9781118792148.ch191

[4] J. Tamayo-Ariztondo,S. Vadakke Madam,E. Djan,D. G. Eskin,N. Hari Babu,Z. Fan Nanoparticles Distribution and Mechanical Properties of Aluminum-Matrix Nano-Composites Treated with External Fields, Light Metals 2014 pp.1411-1415.

DOI: 10.1002/9781118888438.ch236

[5] Md. Tanwir Alam, Akhter Husain Ansari, Sajjad Arif & Md. Naushad Alam" Mechanical properties and morphology of aluminium metal matrix nanocomposites-stir cast products"Advances in Materials and Processing Technologies, Volume 3, 2017 - Issue 4 Published Online: 17 Jul (2017).

DOI: 10.1080/2374068x.2017.1350543

[6] Sónia Simões, Filomena Viana, Marcos A. L. Reis and Manuel F. Vieira Aluminum and Nickel Matrix Composites Reinforced by CNTs: Dispersion/Mixture by Ultrasonication, Metals 2017, 7, 279;.

DOI: 10.3390/met7070279

[7] Pham Quang,Young Gi Jeong,Seung Chae Yoon, Sun Hong, Soon Hyung Hong and Hyoung Seop Kim Carbon Nanotube Reinforced Metal Matrix Nanocomposites Via Equal Channel Angular Pressing, Materials Science Forum Vols. 534-536 (2007) pp.245-248.

DOI: 10.4028/www.scientific.net/msf.534-536.245

[8] Shadakshari R, Dr.Mahesha K, Dr.Niranjan H B Carbon Nanotube Reinforced Aluminium Matrix Composites, International Journal of Innovative Research in Science, Engineering and Technology Vol. 1, Issue 2,December 2012 pp.206-213.

[9] M. A. L. Reis, S. Simões, J. Del Nero, F. Viana, M. F. Vieira CNT-Aluminum Metal Matrix Nanocomposites" ECCM15 - 15TH EUROPEAN CONFERENCE ON COMPOSITE MATERIALS, Venice, Italy, 24-28 June 2012[10] P. Prashanth, A. S. Pradeep, S. Ramanathan, P. Karthi ,Development of Aluminium Matrix Nano Composite Through.

[10] Polymeric Method" International Journal of Civil Engineering and Technology, Volume 8, Issue 9, September 2017, p.244–248.

[11] Ebinezar, Bheemraokamble. Analysis of hardness test for aluminium carbon nanotube metal matrix and graphene. Indian Journal of Engineering, 2014, 10(21), 33-39.
