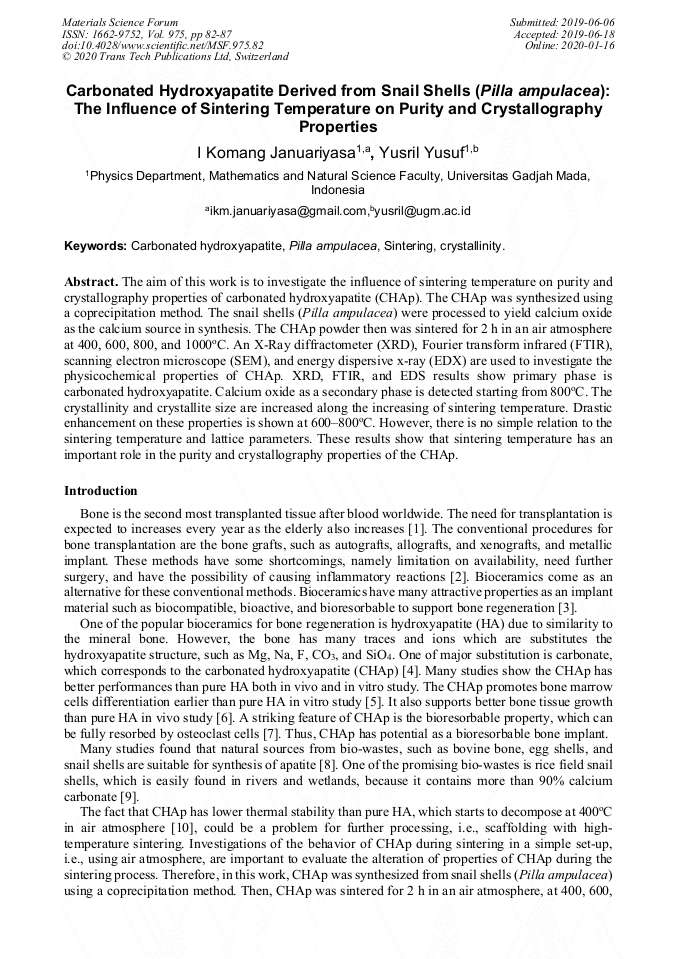

Carbonated Hydroxyapatite Derived from Snail Shells (Pilla ampulacea): The Influence of Sintering Temperature on Purity and Crystallography Properties

Abstract:

The aim of this work is to investigate the influence of sintering temperature on purity and crystallography properties of carbonated hydroxyapatite (CHAp). The CHAp was synthesized using a coprecipitation method. The snail shells (Pilla ampulacea) were processed to yield calcium oxide as the calcium source in synthesis. The CHAp powder then was sintered for 2 h in an air atmosphere at 400, 600, 800, and 1000°C. An X-Ray diffractometer (XRD), Fourier transform infrared (FTIR), scanning electron microscope (SEM), and energy dispersive x-ray (EDX) are used to investigate the physicochemical properties of CHAp. XRD, FTIR, and EDS results show primary phase is carbonated hydroxyapatite. Calcium oxide as a secondary phase is detected starting from 800°C. The crystallinity and crystallite size are increased along the increasing of sintering temperature. Drastic enhancement on these properties is shown at 600–800°C. However, there is no simple relation to the sintering temperature and lattice parameters. These results show that sintering temperature has an important role in the purity and crystallography properties of the CHAp.

• Periodical: Materials Science Forum (Volume 975)
• Pages: 82-87
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.975.82
• Online since: January 2020
• Authors: I Komang Januariyasa, Yusril Yusuf*
• Keywords: Carbonated Hydroxyapatite, Crystallinity, Pilla ampulacea, Sintering

References

[1] R. Yunus Basha, S.K. Sampath and M. Doble: Mater. Sci. Eng. C. Vol 57 (2015) p.452.

[2] J. Li, B.A. Baker, X. Mou, N. Ren, J. Qiu, R.I. Boughton and H. Liu: Adv. Healthc. Mater. Vol 3 (2014) p.469.

[3] I. V. Antoniac: Handbook of Bioceramics and Biocomposites (Springer International Publishing, Switzerland 2016).

[4] S. V Dorozhkin and M. Epple: Angew. Chemie Int. Ed. Vol 41 (2002) p.3130.

[5] H. Nagai, M. Kobayashi-Fujioka, K. Fujisawa, G. Ohe, N. Takamaru, K. Hara, D. Uchida, T. Tamatani, K. Ishikawa and Y. Miyamoto: J. Mater. Sci. Mater. Med. Vol 26 (2015).

DOI: 10.1007/s10856-015-5431-5

[6] A. Porter, N. Patel, R. Brooks, S. Best, N. Rushton and W. Bonfield: J. Mater. Sci. Mater. Med. 16 (2005) p.899.

[7] M. Nakamura, R. Hiratai, T. Hentunen, J. Salonen and K. Yamashita: ACS Biomater. Sci. Eng. Vol 2 (2016) p.259.

DOI: 10.1021/acsbiomaterials.5b00509

[8] M. Akram, R. Ahmed, I. Shakir, W.A.W. Ibrahim and R. Hussain: J. Mater. Sci. Vol 49 (2014) p.1461.

[9] N. Udomkan and P. Limsuwan: Mater. Sci. Eng. C. Vol 28 (2008) p.316.

[10] J. V. Rau, S.N. Cesaro, D. Ferro, S.M. Barinov and I. V. Fadeeva: J. Biomed. Mater. Res. - Part B Appl. Biomater. Vol 71 (2004) p.441.

[11] E. Landi, G. Celotti, G. Logroscino and A. Tampieri: J. Eur. Ceram. Soc. Vol 23 (2003) p.2931.

[12] E. Landi, A. Tampieri, G. Celloti and S. Sprio: J. Eur. Ceram. Soc. Vol 20 (2000) p.2377.

[13] I. Ezekiel, S.R. Kasim, Y.M.B. Ismail and A.F.M. Noor: Ceram. Int. Vol 44 (2018) p.13082.

[14] F. Yao, J.P. LeGeros and R.Z. LeGeros: Acta Biomater. Vol 5 (2009) p.2169.

[15] J.C. Merry, I.R. Gibson and S.M. Best, W. Bonfield: J. Mater. Sci. Mater. Med. 9 (1998) p.779.

[16] T. Panz, J. Brzezińska-Miecznik, W. Mozgawa, M.M. Bućko, A. Pyda, J. Zarębski, M. Haberko and K. Haberko: J. Eur. Ceram. Soc. 26 (2005) p.537.

DOI: 10.1016/j.jeurceramsoc.2005.07.033

[17] X. Kuang, G. Carotenuto and L. Nicolais: Adv. Perform. Mater. Vol 4 (1997) p.257.

[18] F. Judas, M. Figueiredo, A. Fernando, G. Martins, J. Freitas and H. Figueiredo: Ceram. Int. Vol 36 (2010) p.2383.

[19] E. Garskaite, K.A. Gross, S.W. Yang, T.C.K. Yang, J.C. Yang and A. Kareiva: CrystEngComm. Vol 16 (2014) p.3950.
