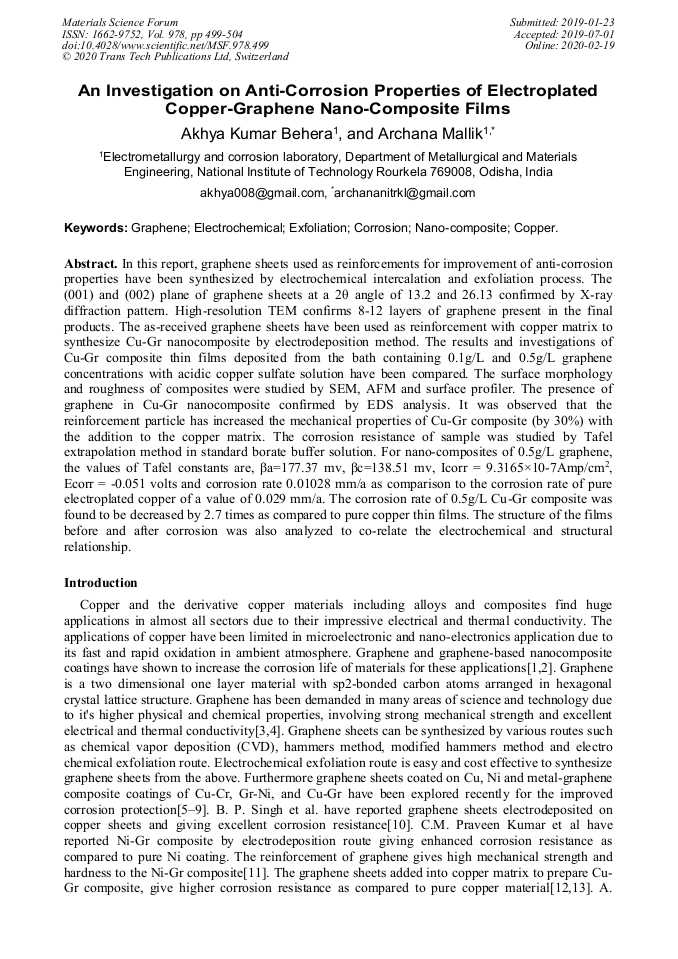

An Investigation on Anti-Corrosion Properties of Electroplated Copper-Graphene Nano-Composite Films

Abstract:

In this report, graphene sheets used as reinforcements for improvement of anti-corrosion properties have been synthesized by electrochemical intercalation and exfoliation process. The (001) and (002) plane of graphene sheets at a 2θ angle of 13.2 and 26.13 confirmed by X-ray diffraction pattern. High-resolution TEM confirms 8-12 layers of graphene present in the final products. The as-received graphene sheets have been used as reinforcement with copper matrix to synthesize Cu-Gr nanocomposite by electrodeposition method. The results and investigations of Cu-Gr composite thin films deposited from the bath containing 0.1g/L and 0.5g/L graphene concentrations with acidic copper sulfate solution have been compared. The surface morphology and roughness of composites were studied by SEM, AFM and surface profiler. The presence of graphene in Cu-Gr nanocomposite confirmed by EDS analysis. It was observed that the reinforcement particle has increased the mechanical properties of Cu-Gr composite (by 30%) with the addition to the copper matrix. The corrosion resistance of sample was studied by Tafel extrapolation method in standard borate buffer solution. For nanocomposites of 0.5g/L graphene, the values of Tafel constants are, βa=177.37 mv, βc=138.51 mv, Icorr = 9.3165×10-7Amp/cm², Ecorr = -0.051 volts and corrosion rate 0.01028 mm/a as comparison to the corrosion rate of pure electroplated copper of a value of 0.029 mm/a. The corrosion rate of 0.5g/L Cu-Gr composite was found to be decreased by 2.7 times as compared to pure copper thin films. The structure of the films before and after corrosion was also analyzed to co-relate the electrochemical and structural relationship.

• Periodical: Materials Science Forum (Volume 978)
• Pages: 499-504
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.978.499
• Online since: February 2020
• Authors: Akhya Kumar Behera, Archana Mallik*
• Keywords: Copper, Corrosion, Electrochemical, Exfoliation, Graphene, Nano-Composite

References

[1] Y. Dong, Q. Liu, Q. Zhou, Corrosion behavior of Cu during graphene growth by CVD, Corros. Sci. 89 (2014) 214–219.

DOI: 10.1016/j.corsci.2014.08.026

[2] A.K. Behera, A. Mallik, Ultrasound assisted electroplating of nano-composite thin film of Cu matrix with electrochemically in-house synthesized few layer graphene nano-sheets as reinforcement, J. Alloys Compd. 750 (2018) 587–598.

DOI: 10.1016/j.jallcom.2018.03.264

[3] 1 A K Geim K. S. Novoselov 1* S. V. Morozov,2 D. Jiang,1 Y. Zhang,1 S. V. Dubonos,2 I. V. Grigorieva,1 A. A. Firsov2, Electric Field Effect in Atomically Thin Carbon Films, Science (80-. ). 306 (2004) 666–670.

DOI: 10.1126/science.1102896

[4] S.K. Sahoo, A. Mallik, Simple, Fast and Cost-Effective Electrochemical Synthesis of Few Layer Graphene Nanosheets, Nano. 10 (2015) 1550019.

DOI: 10.1142/s1793292015500198

[5] J. Chen, J. Li, D. Xiong, Y. He, Y. Ji, Y. Qin, Preparation and tribological behavior of Ni-graphene composite coating under room temperature, Appl. Surf. Sci. 361 (2016) 49–56.

DOI: 10.1016/j.apsusc.2015.11.094

[6] M.Y. Rekha, M.K. Punith Kumar, C. Srivastava, Electrochemical behaviour of chromium-graphene composite coating, RSC Adv. 6 (2016) 62083–62090.

DOI: 10.1039/c6ra06509k

[7] G. Cieślak, M. Trzaska, Preparation and properties of nanocrystalline Ni/graphene composite coatings deposited by electrochemical method, Polish J. Chem. Technol. 20 (2018) 29–34.

DOI: 10.2478/pjct-2018-0005

[8] S.M. Silaimani, G. Vivekanandan, P. Veeramani, Nano-nickel–copper alloy deposit for improved corrosion resistance in marine environment, Int. J. Environ. Sci. Technol. 12 (2015) 2299–2306.

DOI: 10.1007/s13762-014-0591-2

[9] N.W. Pu, G.N. Shi, Y.M. Liu, X. Sun, J.K. Chang, C.L. Sun, M. Der Ger, C.Y. Chen, P.C. Wang, Y.Y. Peng, C.H. Wu, S. Lawes, Graphene grown on stainless steel as a high-performance and ecofriendly anti-corrosion coating for polymer electrolyte membrane fuel cell bipolar plates, J. Power Sources. 282 (2015) 248–256.

DOI: 10.1016/j.jpowsour.2015.02.055

[10] B.P. Singh, S. Nayak, K.K. Nanda, B.K. Jena, S. Bhattacharjee, L. Besra, The production of a corrosion resistant graphene reinforced composite coating on copper by electrophoretic deposition, Carbon N. Y. 61 (2013) 47–56.

DOI: 10.1016/j.carbon.2013.04.063

[11] C.M.P. Kumar, T. V. Venkatesha, R. Shabadi, Preparation and corrosion behavior of Ni and Ni-graphene composite coatings, Mater. Res. Bull. 48 (2013) 1477–1483.

DOI: 10.1016/j.materresbull.2012.12.064

[12] Y. Raghupathy, A. Kamboj, M.Y. Rekha, N.P. Narasimha Rao, C. Srivastava, Copper-graphene oxide composite coatings for corrosion protection of mild steel in 3.5% NaCl, Thin Solid Films. 636 (2017) 107–115.

DOI: 10.1016/j.tsf.2017.05.042

[13] A. Kamboj, Y. Raghupathy, M.Y. Rekha, Morphology , Texture and Corrosion Behavior of Nanocrystalline Copper – Graphene Composite Coatings, 69 (2017) 1149–1154.

DOI: 10.1007/s11837-017-2364-0
