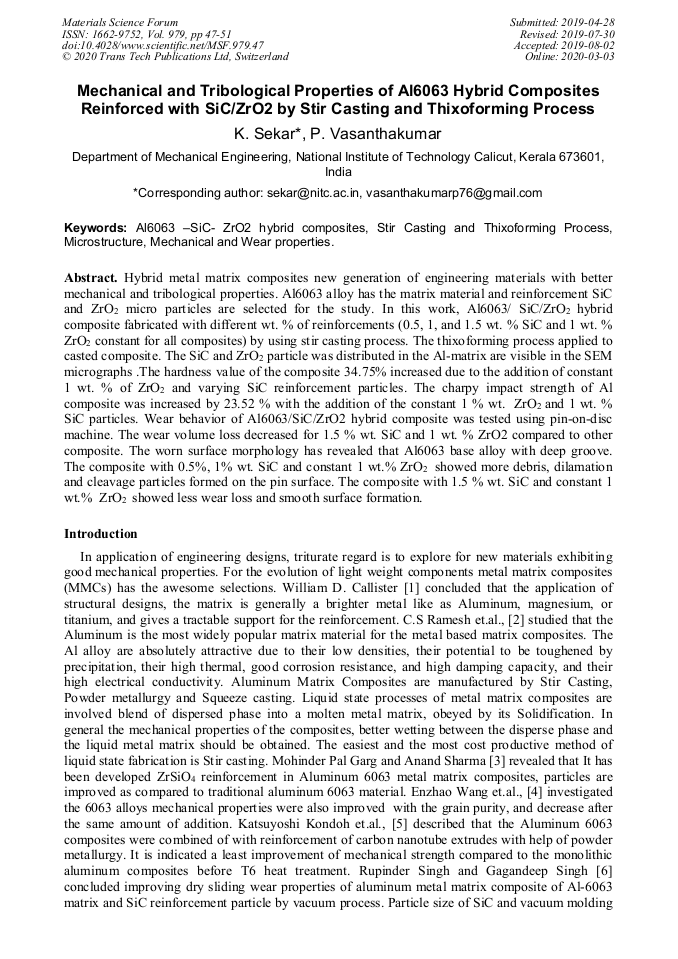

Mechanical and Tribological Properties of Al6063 Hybrid Composites Reinforced with SiC/ZrO2 by Stir Casting and Thixoforming Process

Abstract:

Hybrid metal matrix composites new generation of engineering materials with better mechanical and tribological properties. Al6063 alloy has the matrix material and reinforcement SiC and ZrO₂ micro particles are selected for the study. In this work, Al6063/ SiC/ZrO₂ hybrid composite fabricated with different wt. % of reinforcements (0.5, 1, and 1.5 wt. % SiC and 1 wt. % ZrO₂ constant for all composites) by using stir casting process. The thixoforming process applied to casted composite. The SiC and ZrO₂ particle was distributed in the Al-matrix are visible in the SEM micrographs .The hardness value of the composite 34.75% increased due to the addition of constant 1 wt. % of ZrO₂ and varying SiC reinforcement particles. The charpy impact strength of Al composite was increased by 23.52 % with the addition of the constant 1 % wt. ZrO₂ and 1 wt. % SiC particles. Wear behavior of Al6063/SiC/ZrO2 hybrid composite was tested using pin-on-disc machine. The wear volume loss decreased for 1.5 % wt. SiC and 1 wt. % ZrO2 compared to other composite. The worn surface morphology has revealed that Al6063 base alloy with deep groove. The composite with 0.5%, 1% wt. SiC and constant 1 wt.% ZrO₂ showed more debris, dilamation and cleavage particles formed on the pin surface. The composite with 1.5 % wt. SiC and constant 1 wt.% ZrO₂ showed less wear loss and smooth surface formation.

• Periodical: Materials Science Forum (Volume 979)
• Pages: 47-51
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.979.47
• Online since: March 2020
• Authors: Kannan Sekar*, Pandian Vasanthakumar
• Keywords: Al6063 - SiC-ZrO₂ Hybrid Composites, Mechanical Properties, Microstructure, Stir Casting, Thixoforming Process, Wear Properties

References

[1] William D. Callister, Composite materials, Callister's Materials Science and Engineering, (2011).

[2] C.S Ramesh, Abrar Ahamed, B.H Channabasappa, R. Keshavamurthy, Development of Al6063-TiB2 in situ composites, Material and Design 31 (2010) 2230-2236.

DOI: 10.1016/j.matdes.2009.10.019

[3] Mohinder Pal Garg, Anand Sharma, Examination of accuracy aspect in machining of ZrSiO4/6063 aluminium MMC using CNC Wire Electrical Discharge Machining, 6 (2017) 6-10.

DOI: 10.1016/j.coco.2017.07.002

[4] Enzhao Wang, Tong Gao, Jinfeng Nie, Xiangfa Liu, Grain refinement limit and mechanical properties of 6063 alloy inoculated by Al-Ti-C (B) master alloys, J. of alloy and Compnds 594 (2014) 7-11.

DOI: 10.1016/j.jallcom.2014.01.145

[5] Katsuyoshi Kondoh, Hiroyuki Fukuda, Junko Umeda, Hisashi Imai, Bunshi Fugetsu, Microstructural and mechanical behavior of multi-walled carbon nanotubes reinforced Al-Mg-Si alloy composites in aging treatment, Carbon, 72 (2014) 15-21.

DOI: 10.1016/j.carbon.2014.01.013

[6] Rupinder Singh, Gagandeep Singh, Investigation of Al-SiC AMC prepared by vacuum moulding assisted stir casting, 19 (2015) 142-147.

DOI: 10.1016/j.jmapro.2015.06.011

[7] K Sekar, K Allesu, MA Joseph. Mechanical and Wear Properties of Al–Al2O3 Metal Matrix Composites Fabricated by the Combined Effect of Stir and Squeeze Casting Method, Transc.of the Ind. Inst. of Mtls. 68 (2) (2015) 115-121.

DOI: 10.1007/s12666-015-0520-1

[8] Spencer D, Mehrabian R and Flemings MC 1972 Rheological behavior of Sn-15 pct. Pb in the crystallization range, Metai. and Mtl. Transac. B 3 (2017) 1925-1932.

DOI: 10.1007/bf02642580

[9] S. Natarajan, R. Narayanasamy, S.P. Kumaresh Babu, G. Dinesh, B. Anil Kumar, K. Sivaprasad, Sliding wear behavior of Al6063/TiB2 in situ composites at elevated temperatures, Material and Design 30 (2009) 2521-2531.

DOI: 10.1016/j.matdes.2008.09.037

[10] K. Sekar , Gudla Jayachandra , S.Aravindan, Mechanical and Welding Properties of A6082-SiC-ZrO2 Hybrid Composite Fabricated by Stir and Squeeze Casting, Materials Today: Proceedings 5 (2018) 20268–20277.

DOI: 10.1016/j.matpr.2018.06.398

[11] K. Sekar, M. Manohar and K. Jayakumar, Mechanical and Tribological Properties of A356/Al2O3/MoS2 Hybrid Composites Synthesized Through Combined Stir and Squeeze Casting, Advances in Materials and Metallurgy, Lecture Notes in Mechanical Engineering, https://doi.org/10.1007/978-981-13-1780-4_13.

DOI: 10.1007/978-981-13-1780-4_13
