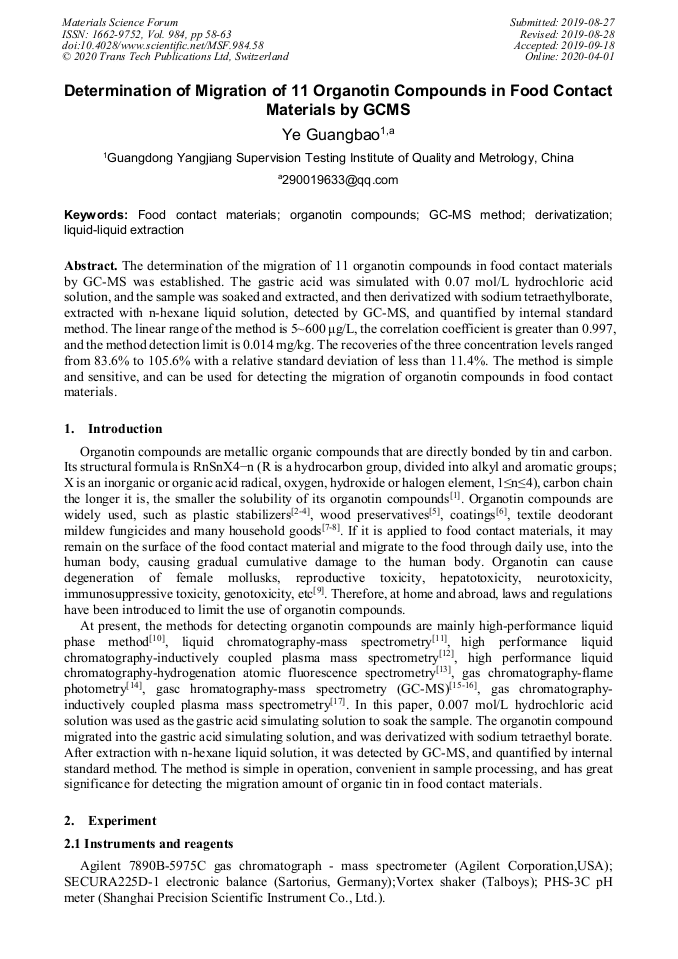

Determination of Migration of 11 Organotin Compounds in Food Contact Materials by GCMS

Abstract:

The determination of the migration of 11 organotin compounds in food contact materials by GC-MS was established. The gastric acid was simulated with 0.07 mol/L hydrochloric acid solution, and the sample was soaked and extracted, and then derivatized with sodium tetraethylborate, extracted with n-hexane liquid solution, detected by GC-MS, and quantified by internal standard method. The linear range of the method is 5~600 μg/L, the correlation coefficient is greater than 0.997, and the method detection limit is 0.014 mg/kg. The recoveries of the three concentration levels ranged from 83.6% to 105.6% with a relative standard deviation of less than 11.4%. The method is simple and sensitive, and can be used for detecting the migration of organotin compounds in food contact materials.

• Periodical: Materials Science Forum (Volume 984)
• Pages: 58-63
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.984.58
• Online since: April 2020
• Authors: Guang Bao Ye*
• Keywords: Derivatization, Food Contact Materials, GC-MS Method, Liquid-Liquid Extraction, Organotin Compounds

References

[1] Cheng Xiaofei, Wang Li, Yu Jing: Application of organotin stabilizer in PVC processing [J]. Polyvinyl Chloride, 2011, 39 (4): 33-34.

[2] Wang Jianjun, Hu Chinese, Lei Jinlin: PVC heat stabilizer and domestic development status [J]. Plastic Additives, 2005, 5: 5 - 12.

[3] Liu Lingmei: Overview of heat stabilizers for PVC processing [J]. Polyvinyl chloride, 2001, 2: 43 - 48.

[4] Cheng Xiaofei, Wang Li, Yu Jing: Application of organotin stabilizer in PVC processing [J]. Polyvinyl chloride, 2011, 39(4): 33 - 34.

[5] Zhou Huiming: Wood preservation [M]. Beijing: China Forestry Publishing House, (1991).

[6] Wang Xiujuan, Shen Haiying, Li Min: Research and development of environmentally friendly marine antifouling coatings [J]. Coatings Industry, 2010, 40 (3): 64-66, 70.

[7] Kannan K, Tanabe S, Tatsukawa R: Occurrence of butyltin residues in certain foodstuffs [J]. Bull Environ Contam Toxico, 1995, 55: 510 - 516.

DOI: 10.1007/bf00196029

[8] J. B Nielsen, J Strand: Butyltin compounds in human liver [J]. Environmental Research Section A, 2002, 88: 129 - 133.

DOI: 10.1006/enrs.2001.4321

[9] Wang Shanshan, Feng Liu: Toxic effects of organotin compounds and their influencing factors[J]. Journal of Safety and Environment, 2005, 5 (3): 12-15.

[10] Wang Xiu - pin, Jin Hai - yan, Cheng Li - gang, etal: On - line solid phase extraction coupled to high performance liquid chromatography for the determination of organotin compounds in water samples [J]. Chinese Journal of Analytical Chemistry, 2007, 35( 11) : 1669.

[11] Xu Qin, Niu Zengyuan, Ye Yuwen, et al: Determination of organotin in plastic parts of electronic and electrical products by liquid chromatography-mass spectrometry [J]. Journal of Analytical Testing, 2009, 28(11): 1270.

[12] Leng Taohua, Chen Guiyu, Duan Wenfeng, et al: Analysis of the Forms of Organotin in Aquatic Products by High Performance Liquid Chromatography-Inductively Coupled Plasma Mass Spectrometry [J]. Chinese Journal of Analytical Chemistry, 2015, 43 (4): 558-563.

[13] Deng Aihua, Pang Jinshan, Peng Xiaojun, et al: Simultaneous determination of three organotins in plastics by high performance liquid chromatography-hydride generation atomic fluorescence spectrometry [J]. Journal of Instrumental Analysis, 2014, 33 (8): 928-933.

[14] Deng Aihua, Pang Jinshan, Peng Xiaojun, et al: Determination of 10 organotins in plastics by gas chromatography-double column double detector [J]. Journal of Instrumental Analysis, 2015, 34 (1): 35-42.

[15] Niu Zengyuan, Yuan Lingling, Ye Yuwen: Simultaneous Determination of Eight Organotin in Coatings by Solid Phase Extraction-Gas Chromatography-Mass Spectrometry [J]. Journal of Analytical Science, 2008, 24 (6): 667-672.

[16] Lin Yin, Wang Wei, Huang Shuai, et al: Simultaneous determination of 19 organotin compounds in polymer materials by GC-MS method [J]., 2015, 43 (4): 96-100.

[17] ZACHARIADIS GA, ROSENBERG E: Determination of butyl and phenyltin compounds in human urine by HS-SPME after derivatization with tetraethylborate and subsequent determination by capillary GC with microwave-induced plasma atomic emission and mass spectrometric detection [J]. Talanta, 2009, 78 (2): 570-576.

DOI: 10.1016/j.talanta.2008.12.007
