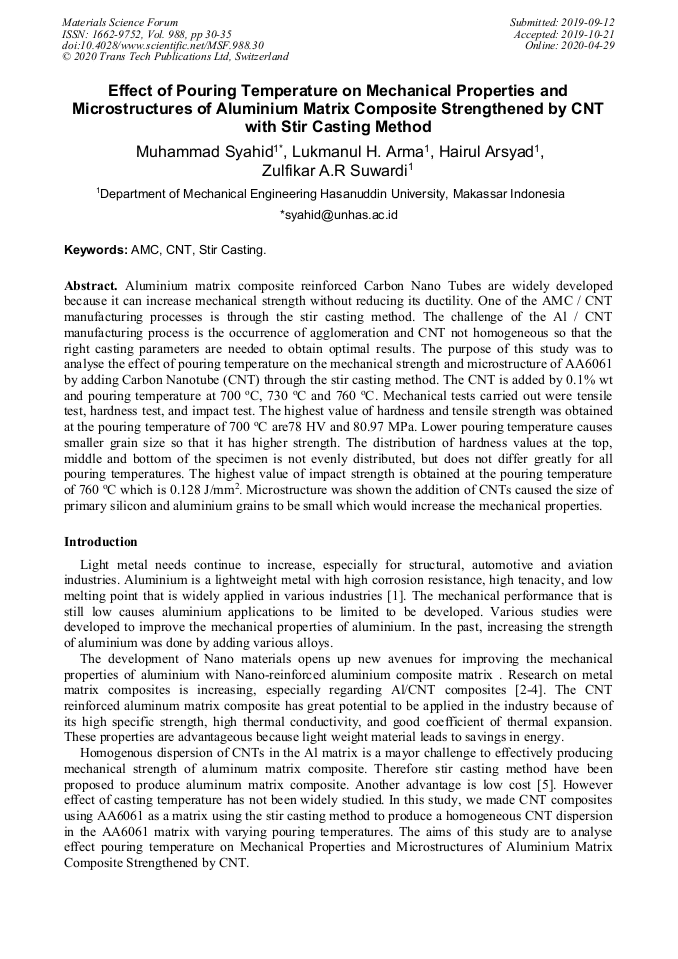

Effect of Pouring Temperature on Mechanical Properties and Microstructures of Aluminium Matrix Composite Strengthened by CNT with Stir Casting Method

Abstract:

Aluminium matrix composite reinforced Carbon nanoTubes are widely developed because it can increase mechanical strength without reducing its ductility. One of the AMC / CNT manufacturing processes is through the stir casting method. The challenge of the Al / CNT manufacturing process is the occurrence of agglomeration and CNT not homogeneous so that the right casting parameters are needed to obtain optimal results. The purpose of this study was to analyse the effect of pouring temperature on the mechanical strength and microstructure of AA6061 by adding Carbon Nanotube (CNT) through the stir casting method. The CNT is added by 0.1% wt and pouring temperature at 700 °C, 730 °C and 760 °C. Mechanical tests carried out were tensile test, hardness test, and impact test. The highest value of hardness and tensile strength was obtained at the pouring temperature of 700 °C are78 HV and 80.97 MPa. Lower pouring temperature causes smaller grain size so that it has higher strength. The distribution of hardness values ​​at the top, middle and bottom of the specimen is not evenly distributed, but does not differ greatly for all pouring temperatures. The highest value of impact strength is obtained at the pouring temperature of 760 °C which is 0.128 J/mm². Microstructure was shown the addition of CNTs caused the size of primary silicon and aluminium grains to be small which would increase the mechanical properties.

• Periodical: Materials Science Forum (Volume 988)
• Pages: 30-35
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.988.30
• Online since: April 2020
• Authors: Muhammad Syahid*, Lukmanul H. Arma, Hairul Arsyad, Zulfikar A.R. Suwardi
• Keywords: Aluminum Matrix Composite, CNT, Stir Casting

References

[1] Jong Gil Park, Dong Hoon Keum and Young Hee Lee 2015 Strengthening mechanisms in carbon nanotube-reinforced aluminum composites, Carbon 95 pp.690-698.

DOI: 10.1016/j.carbon.2015.08.112

[2] Christopher R. Bradbury, Jaana-Kateriina Gomon, et al 2014 Hardness of Multi Wall Carbon Nanotubes reinforced aluminium matrix composites Journal of Alloys and Compounds 585 p.362–367.

DOI: 10.1016/j.jallcom.2013.09.142

[3] R. George, K.T. Kashyap, R. Rahul and S. Yamdagni 2005 Strengthening in carbon nanotube/aluminium (CNT/Al) composites, Scripta Materialia 53 p.1159–1163.

DOI: 10.1016/j.scriptamat.2005.07.022

[4] A.M.K. Esawi, K. Morsi, A. Sayed, M. Taher and S. Lanka 2010, Effect of carbon nanotube (CNT) content on the mechanical properties of CNT-reinforced aluminium composites, Composites Science and Technology 70 p.2237–2241.

DOI: 10.1016/j.compscitech.2010.05.004

[5] Pardeep Sharma, Satpal Sharma and Dinesh Khanduja 2015, A study on microstructure of aluminium matrix composites, Journal of Asian Ceramic Societies 3 240–244.

DOI: 10.1016/j.jascer.2015.04.001

[6] Mansoor Muhammad and Shahid Muhammad 2016 Carbon Nanotube-Reinforced Aluminum Composite Produced By Induction Melting, School of Chemical and Materials Engineering, National University of Science and Technology, H-12, Islamabad, Pakistan.

DOI: 10.1016/j.jart.2016.05.002

[7] Fatma Mokdad, 2016. Deformation And Strengthening Mechanisms Of A Carbon Nanotube Reinforced Aluminum Composite. Ryerson University.

[8] Shadakshari R et al 2012 Carbon Nanotube Reinforced Aluminium Matrix Composites, Assistant Professor, Department of Mechanical Engineering, Acharya Institute of Technology.

[9] Syaharuddin Rasyid, Effendy Arif, Hairul Arsyad and Muhammad Syahid 2018 Effect of mechanical stirrer and pouring temperature on semi solid rheocasting of ADC12 Al Alloy, ARPN Journal of Engineering and Applied Sciences, Vol 13VOL. 13, NO. 6.

DOI: 10.1088/1757-899x/676/1/012041

[10] Madhu Sundaram 2015 Reinforcement Of MWCNT In Aluminium Alloy Using Stir Casting Process, Saveetha University.
